Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
29
For fixing of the new incrush current limiter use the old hexagonal spacers, if the fing angle on the
photo below is present (photo shwos already the new grid). 2
2
2
If the fixing angle is not present, use the new hexagonal spacers from the retrofit kit: 2
: Screw together the hexagonal spacers from the retrofit kit.
2
Connected, these are longer than the old spacers. 2
2
Fixing angle
Hexagonal spacer, old
Hexagonal spacer, new
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
30

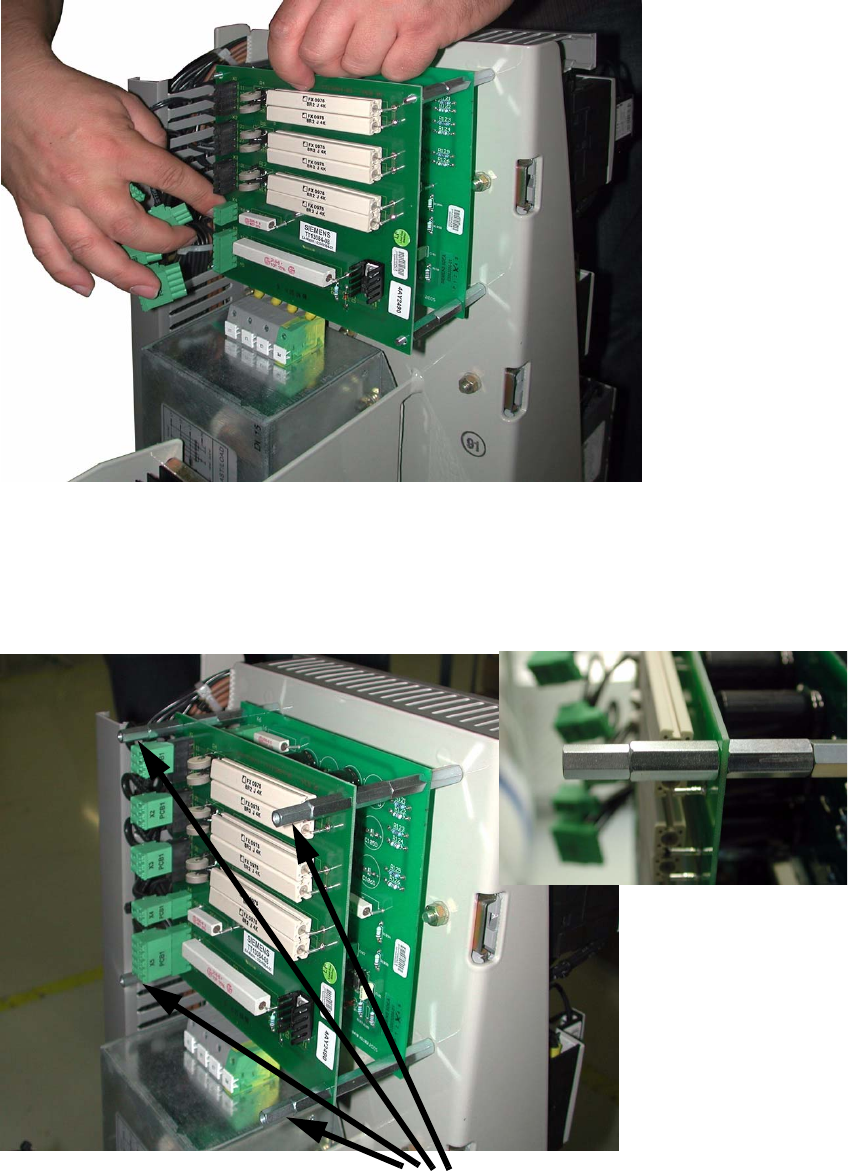

: Attach the new inrush current limiter.
2
2
: Screw the nut in the middle of the inrush current limiter.
: Screw on the old or the new (connected) hexagonal spacers.
2
Hexagonal spacers
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
31
: Plug the connectors in line with the supply voltage:
2
2

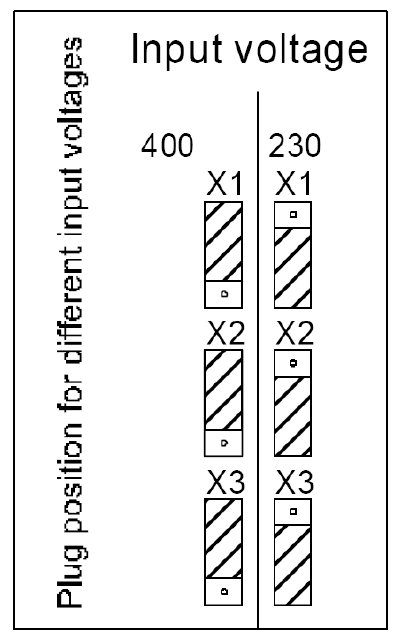

The inrush current limitation board must be configured in line with the supply voltage. This is per-
formed with the help of plug-in jumpers on the inrush current limitation board. 2
: Check the jumper assignements and correct these, where necessary.
2
2
2
2
2
2
2
2
2
X1, X2, X3: Plug-in jumper to configure the
inrush current limitation
