Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
32
: Push the old or the new, longer insulation sleeving from the retrofit kit onto the hexagonal
spacer at the top left.
2
2
: Attach the new grid cover.
Screw it in place with four screws. The screw holes are located between the grid openings.
2
2
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
33
: Check that the edge protector is attached to the grid.
2
2
: Remove the terminal end piece from the top hat rail.
The connector at X1 may be removed for ease of access.
2
Edge protector
Terminal end piece
Connector
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
34

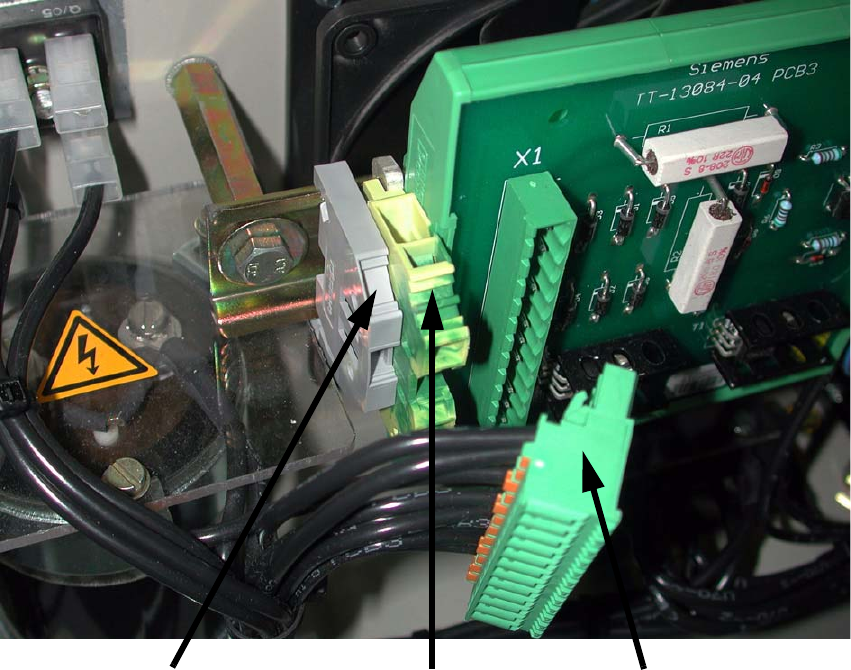

: Clip the earth terminal from the retrofit kit onto the top hat rail (see photograph)
Clip the narrow clamp from the retrofit kit onto the top hat rail (see photograph).
Insert the connector once more.
2
2
2
2
2
2
2
2
2
2
2
Narrow terminal end piece
Earth terminal
Connector
