Service Manual: Replacing the inrush current limiter, SIPLACE X-series 10/2006 Edition 35 : Run the PE conductor from the co ver grid to the earth terminal. 2 : Insert the earthing cable into the PE terminal. The top hat…
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
34
: Clip the earth terminal from the retrofit kit onto the top hat rail (see photograph)
Clip the narrow clamp from the retrofit kit onto the top hat rail (see photograph).
Insert the connector once more.
2
2
2
2
2
2
2
2
2
2
2
Narrow terminal end piece
Earth terminal
Connector
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
35

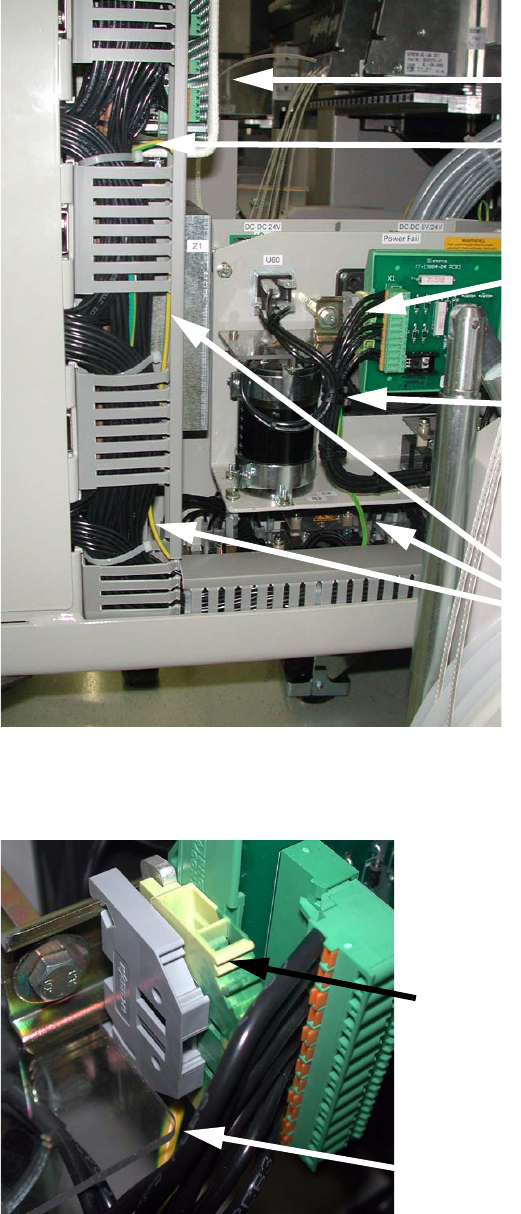

: Run the PE conductor from the cover grid to the earth terminal.
2
: Insert the earthing cable into the PE terminal.
The top hat rail is earthed.
2
Cover grid
PE conductor
PE conductor
PE terminal
Cable ties
PE conductor
PE terminal
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
36
: Use cable ties to fix the grounding cable in the vicinity of the earth terminal (see photograph
above).
2
: Push the power supply back into the placement machine.
: Screw it in place with screws at the bottom right.
: Close the cover over the power supply.
2
2
