CONTENTS

Page number

1. Specifications………………………………………………………………………………. 3

2. Unpacking and inspection…………………………………………………………………. 4

3. Description………………………………………………………………………………… 4

4. Theory of operation………………………………………………………………………… 4

5. Setup instructions………………………………………………………………………….. 5

6. Typical system setup………………………………………………………………………..6

7. Trouble shooting…………………………………………………………………………… 7

8. Maintenance and cleaning

8.1 Cleaning……………………………………………………………………………….. 8

8.2 To Change the Diaphragm…………………………………………………………….. 9

8.3 To Change and Lubricate Piston O-ring………………………………………………. 10

9. Spare parts and accessories

9.1 Spare Parts………………………………………………………………………………11

9.2 Accessories…………………………………………………………………………….. 12

10. Warranty…………………………………………………………………………………….13

1. SPECIFICATIONS

Size: 3.45” (88mm) length X 1.06”(27mm) diameter

Weight: 0.268 lb (120 g)

Fluid inlet port: 1/8 NPT female

Fluid outlet port: Luer lock connection

Air inlet port: 10-32 UNF

Mounting port: 10-32 UNF

Maximum fluid pressure: 70 psi (4.8 bars)

Operating air pressure range: 70 – 90 psi (4.8 – 6.2 bars)

Wetted parts: Ultra High Molecular Weight Polyethylene and 303 Stainless steel

Operating frequency: exceeds 500 cycles/min.

Flow rate at 70 psi (water) 3000 ml/min.

Material viscosity range: Up to 50,000 Cps

1.29"

3.45"

(87.6mm)

(32.8mm)

Ø1.06" (26.9mm)

1.98"

(50.3mm)

1/8 NPT PORT

(FLUID INLET)

10-32 PORT

(AIR INLET)

10-32 PORT

(MOUNTING HOLE)

2.23" (56.6mm)

Figure 1.0

2. UNPACKING AND INSPECTION

Carefully unpack the valve and examine the items contained in the carton.

These will include:

• Valve Assembly

• User Guide

• Valve Air Hose

Inspect the unit for any damaged which may have occurred in transit. If such damage has occurred,

notify the carrier at once.

Claim for damage must be made by the consignee to the carrier, and should be reported to the

manufacturer.

3. DESCRIPTION

The TS5622VU-DVD Diaphragm valve is designed to dispense low to medium viscosity fluids. An

internal spring return makes the valve fully adaptable for use with any time/pressure controllers. A short

opening stroke provides extremely fast, positive shut-off. An external stroke control adjustment makes

it easy to fine tune shot sizes. The valve compact design allows for mounting flexibility and easy

integration into automated applications.

4. THEORY OF OPERATION

The TS5622VU-DVD is a normally closed, adjustable stroke valve. Input air pressure of 70-90 psi (4.8

to 6.2 bars) through port (1) drives the piston assembly (2) back, opening the material path, allow fluid

flow from the material inlet (4) to the dispense needle (5).

Relieving the input air pressure allows the piston return spring (6) to close the diaphragm, ensuring rapid

“fail-safe” shut-off of fluid flow.

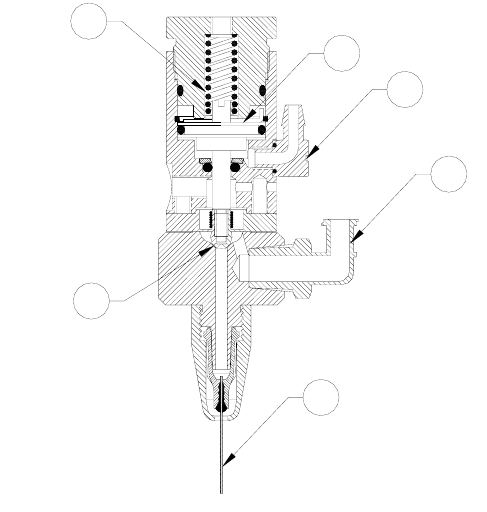

Figure 3.0
