5. Error Log (Mis)
On the Error Log screen, errors and operation of the machine are displayed as Error Logs.
The machine can save 1000 Error Logs in its drive. One error or operation is recorded on a line.
5-1. Grid with detail of each item
Chart 5-1-1 Grid with detail of each item
<Item> <Example> <Contents> Log Ver.
Version V1.00 Version of the history recorded. *1
Event Date 2001/05/30 19:02:26 Time when an error or an operation occurs. *1
Program Name TOPAZ_TEST_1005 Program name chosen when the error or the
operation occurs
*1
Program
Comment
For_CUK93001 Comment of the program chosen when the error
the operation occurs.
*1
Event Number Es00305 Event number of the error or the operation.
Es: Error of system.
Ea: Error of the program or the operation.
*1
Contents Softlimit over Titles of contents of the error or the operation. *1
Details X Contents of the error or the operation. *1
Operator Name Richard Name of an operator who is login when the error or
the operation occurs.
*1
The above example indicates: System error “Es00305 Softlimit over” happened in X axis on 2001/05/30
19:02:26. And the program name chosen is “TOPAZ_TEST_1005”, the comment of the program is
“For_CUK93001”, operated by Mr. Richard.
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
12 / 53
5-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.

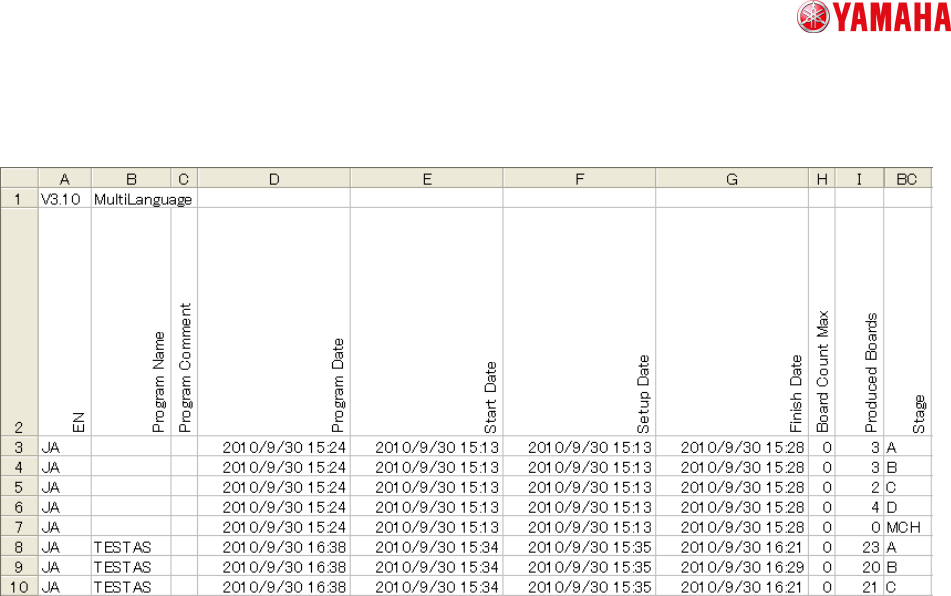

Fig. 5-2
