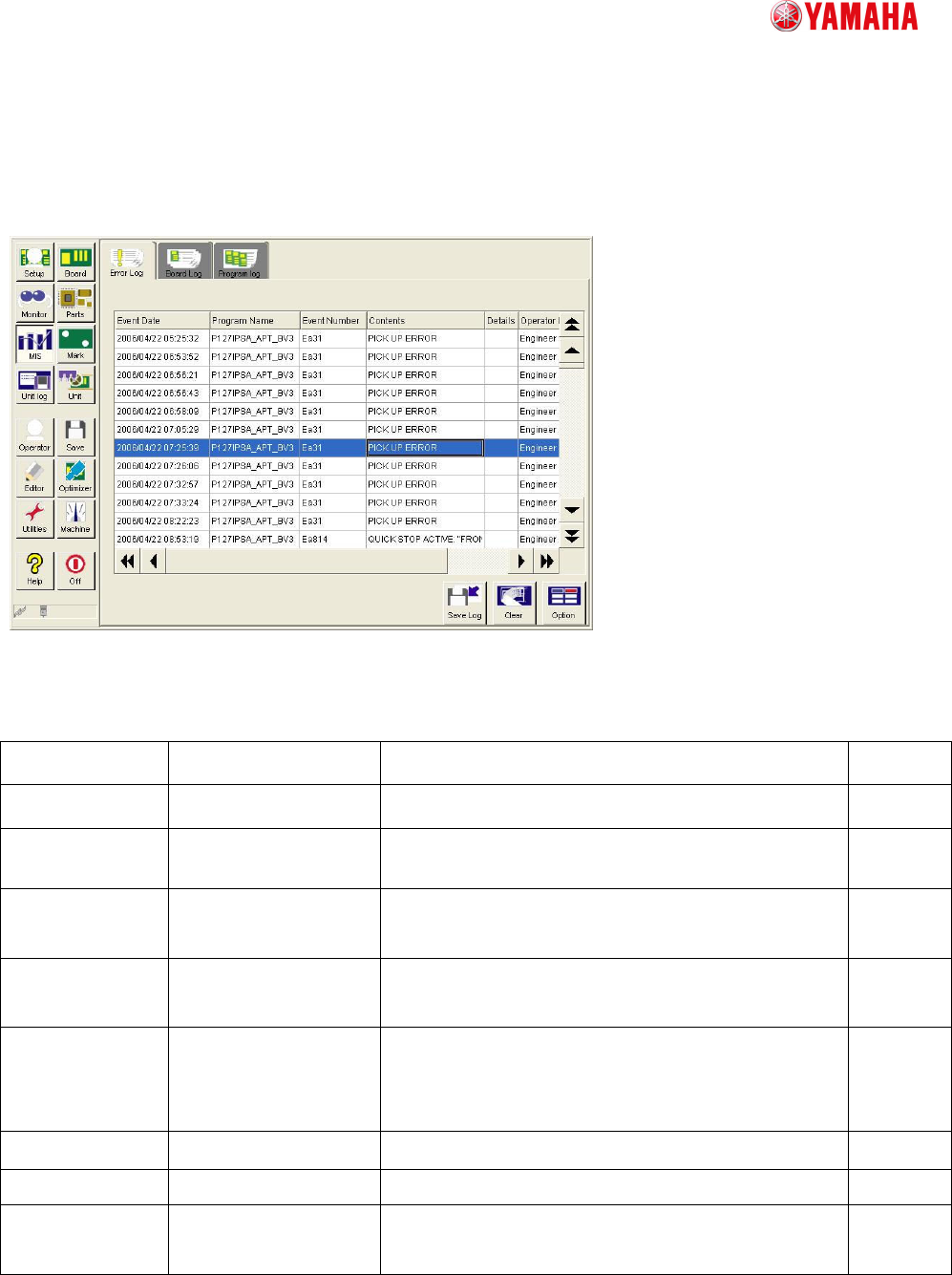

5. Error Log (Mis)
On the Error Log screen, errors and operation of the machine are displayed as Error Logs.
The machine can save 1000 Error Logs in its drive. One error or operation is recorded on a line.
5-1. Grid with detail of each item
Chart 5-1-1 Grid with detail of each item
<Item> <Example> <Contents> Log Ver.
Version V1.00 Version of the history recorded. *1
Event Date 2001/05/30 19:02:26 Time when an error or an operation occurs. *1
Program Name TOPAZ_TEST_1005 Program name chosen when the error or the
operation occurs
*1
Program
Comment
For_CUK93001 Comment of the program chosen when the error
the operation occurs.
*1
Event Number Es00305 Event number of the error or the operation.
Es: Error of system.
Ea: Error of the program or the operation.
*1
Contents Softlimit over Titles of contents of the error or the operation. *1
Details X Contents of the error or the operation. *1
Operator Name Richard Name of an operator who is login when the error or
the operation occurs.
*1
The above example indicates: System error “Es00305 Softlimit over” happened in X axis on 2001/05/30
19:02:26. And the program name chosen is “TOPAZ_TEST_1005”, the comment of the program is
“For_CUK93001”, operated by Mr. Richard.
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
12 / 53

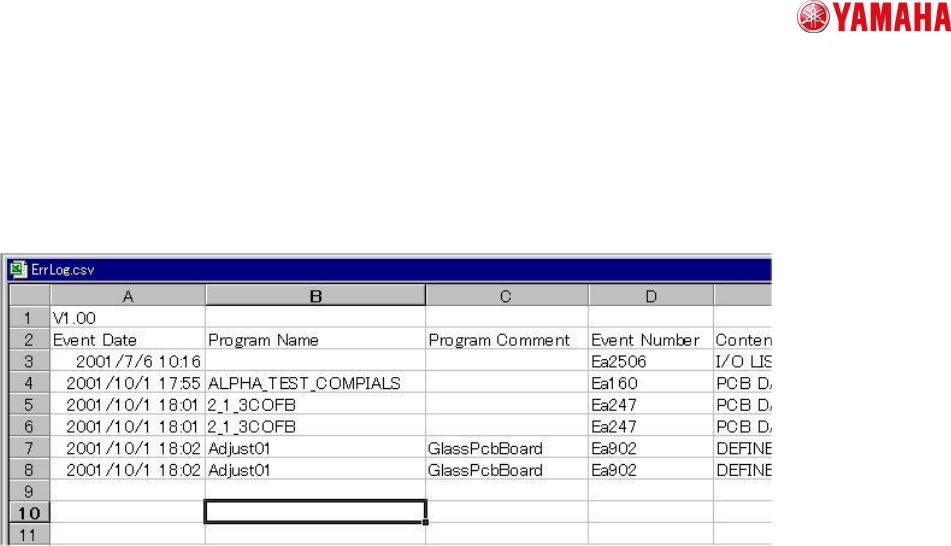

5-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
Fig. 5-2
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
13 / 53
6. Board Log (MIS)
In Board Log tab, the production result is indicated as log in every one sheet of board produced with
the machine. A drive inside the machine save on the result of the board produced in the 1000 past. It
is recorded as the data on one line toward one sheet of board.
6-1. Grid with detail of each item (Edit: 4th)
Chart 6-1-1 Grid with detail of each item
<Item> <Example
>
<Contents>
(Xg / Yg Series)
<Contents>
(YS Series or later)
<Version>
Version V1.00 Version of the history recorded.
←
*1
Program
Name
TOPAZ_T
EST_1005
The program name chosen.
←
*1
Program
Comment
For_CUK9
3001
The comment of the program
chosen.
←
*1
Stage
A None Mounting Stage of which logs
are outputted.
*2
Start Time 2001/06/08
11:50:04
[The first board]
Production started time.
[The second or later]
Time when the previous board
arrives at the exit of the lowest
[The first board]
Time when the board is
detected at the entrance of a
mounting stage.
[Second or later]
*1
