YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
44 / 53
Counter Parts Errors.
Vision Error
Counter
0 The number of Vision Errors with the parts. *1
No Parts Error
Counter
0 The number of No Parts Errors with the parts.
(N/A: Not count this value with the parts – [Retry Times]
is NORETRY.)
*1
Nozzle Error
Counter
0 The number of Nozzle Error with the parts. *1
Co-planarity Error
Counter
0 The number of Co-planarity Errors with the parts.
*This item is indicated only in a machine with a
Co-planarity Checker or only with Special Functions on.
*3
Consumption 25182 Amount of current consumption of the parts. *1
Splicing Point
Check Counter
25182 The number of times no parts exists while splicing.
*This item is available only in a machine with Remain
Counter.
*4
Total Pick Error
Counter
0 Total number of Pick Errors with the parts. *1
Total Real Pick
Error Counter
0 The number of total number of Pick Errors with the parts
excluding total number of No Parts Errors.
*6
Total Vision Error
Counter
0 Total number of Vision Errors with the parts. *1
Total No Parts Error
Counter
0 Total number of No Parts Errors with the parts.
(N/A: Not count this value with the parts – [Retry Times]
is NORETRY.)
*1
*2
Total Nozzle Error
Counter
0 Total number of Nozzle Error with the parts. *1
Total Co-planarity
Error Counter
0 Total number of error occurring to a peace of parts.
*This item is indicated only in a machine with a
co-planarity checker or only with special functions on.
*5
Total Consumption 25182 Total amount of parts consumption. *1
Total Splicing Point
Check Counter
25182 Total number of times no parts exists while splicing.
*This item is available only in a machine with Remain
Counter.
*4
Feeder Type 2 Feeder type of the parts. *1
Nozzle Type 2 Nozzle Type Number of the parts. *1
Pickup Speed 20 Pickup Speed of the parts. *1
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
45 / 53
Pickup Timer 0.01 Pickup Timer of the parts. *1
Pickup Height 0.2 Pickup Height of the parts. *1
Mount Up Speed 20 Mount Speed of the parts. *1
Mount Up Timer 0.01 Mount Timer of the parts. *1
Mount Up Height 0.3 Mount Height of the parts. *1
Alignment Type None Alignment Type of the parts. *1
Threshold 55 Threshold Value of the parts. *1
*1 Items outputted from the original versions(XG:V1.00, YG:V2.00, YS:V3.00)
*2 Not counted when Retry Times is set as Immediate Stopping.
*3 V2.01 or later only
*4 YS Series V3.00 or later only
*5 YG/YS Series V2.01, V3.01, V3.11 only
*6 YS Series V3.27 or later only
<All Error Rate (%)>
The Total error rate which add up all parts data is indicated.
Pick Up Error Rate (%) : All parts total pick up error / All spent parts
Real Pick Up Error Rate (%) :(All parts total pick up error - All parts total no parts error) /
(All spent parts - All parts total no parts error)
Vision Error Rate (%) : All parts total vision error / All spent parts
No Parts Error Rate (%) : All parts total no parts error / All spent parts
Nozzle Error Rate (%) : All parts total nozzle error / All spent parts
( N/A : Not count “No Parts Error” with the parts – [Retry Times] is NORERY. )

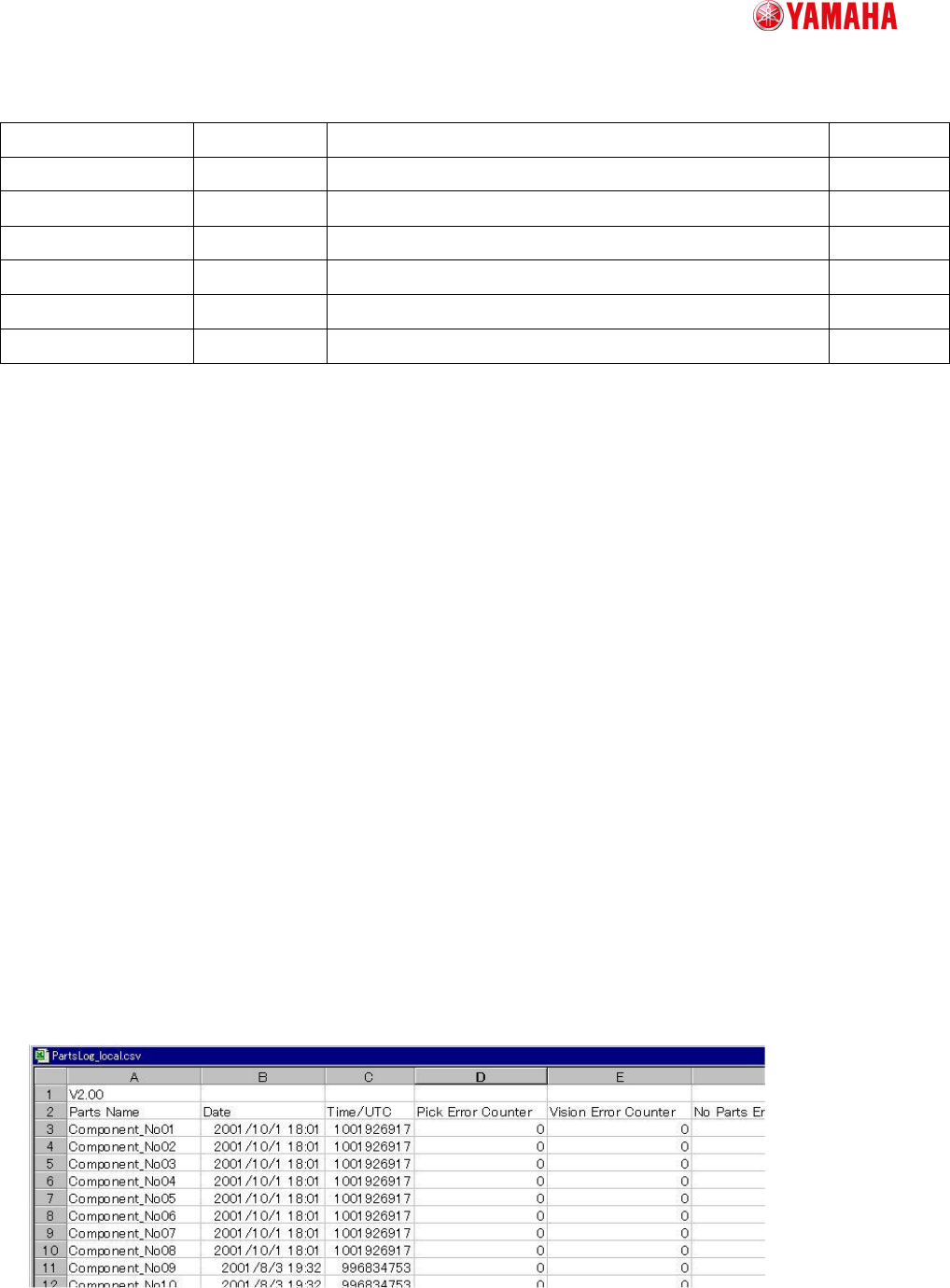

12-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
Fig. 12-2
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
46 / 53

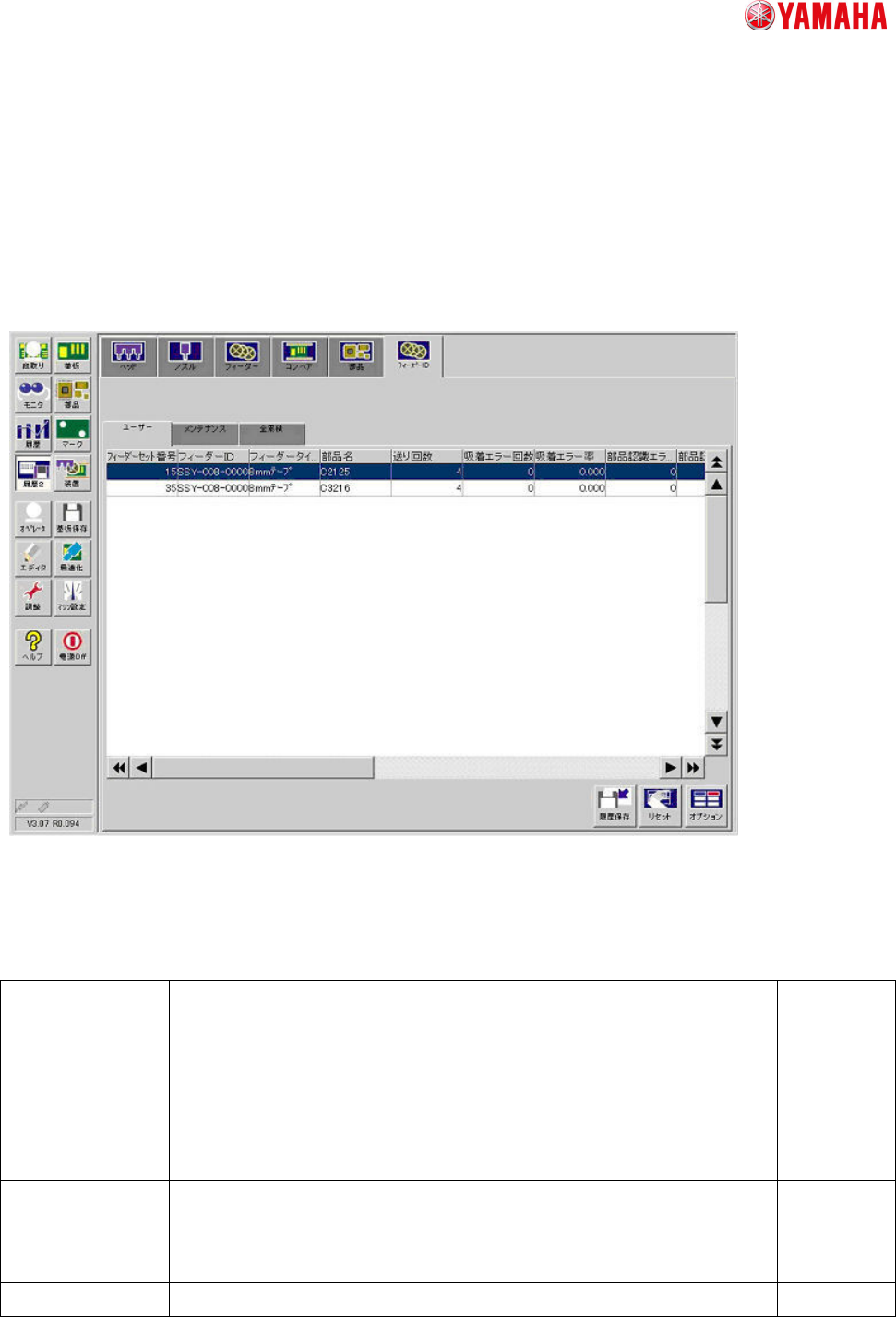

13. Feeder ID (Unit Log)
In the Feeder ID tab of History 2, counted information is indicated for each Feeder ID. You can ensure
the status of usages and errors of each Feeder ID.
To use this function with YG300 or later, please select [Setup] – [Software Setting] - [History] -
[Unit Log] - [Log Setting] - [Management of ID Log] and check the box.
13-1. Grid with detail of each item
Chart. 13-1-1. Grid with detail of each item
<Item> <Example
>
<Contents> <Version>
Version V1.00 Version of the history recorded.
[User]: Set No is according to Feeder a set position.
[Soft]: Set No is according to internal values of the
application.
※1
Feeder Set No. 10 The numbers of the position on which a feeder is set.
※1
Feeder ID SSY-008-1
234567A
Feeder ID of a barcode on the feeder body.
※1
Feeder Type 8mm tape Records a feeder type.
※1
