[Unit log]
Head : Every Head’s Pick Up Error Rate and so on
Nozzle : Every Nozzle’s Pick Up Error Rate and so on
Conveyor : Transfer Error and so on
Feeder : Pick Up Error of every Feeder set number and so on
Parts : Every component’s Pick Up Error and so on
A Board data name is being used as lot name being used well in the Production history data in the
Mounter line. And the comment of the Board data is being used as lot ID.
<Warning>
As for four personal history of Head, Nozzle, Conveyer, Feeder of [Unit log], it is supplied three kinds
of the data one is a customer can reset optionally, second is for the maintenance and third is all the
accumulation.
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
8 / 53
3. History Log by Stage
The function of History Log prior to YG300 is based on a single stage machine. In a single stage
machine, it is possible to count each item without missing.
It is also possible to count individual time such as Mount CT and Marc Rec CT in a multi-stage
machine. But for inseparable time such as Transfer CT and Standby CT, it is difficult to define which is
accurate time as a record of the machine itself because the stages move asynchronously.
Therefore, from YG300, it counts and outputs Transfer and Standby time by each stage individually,
instead of counting and outputting one of them as a record of the whole machine.
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
9 / 53
4. New Format by Stage
For History Logs of each mounting stages, settings of Board Log and Program Log were modified.
It outputs Board Log and Program Log of each stage. Also it outputs a unified record of all stages of the
machine same as the previous formats of History Log.
Outputs as follows
-Board Log(each stage): outputs one record for one board for every mounting stage. (PcｂLog.cｓｖ)
-Program Log (each stage): outputs one record in the end for lot of every mounting stage. (LotLog.cｓｖ)
-Program Log (all): outputs one record in the end of all lots of the program. (LotLog.cｓｖ)
Examples

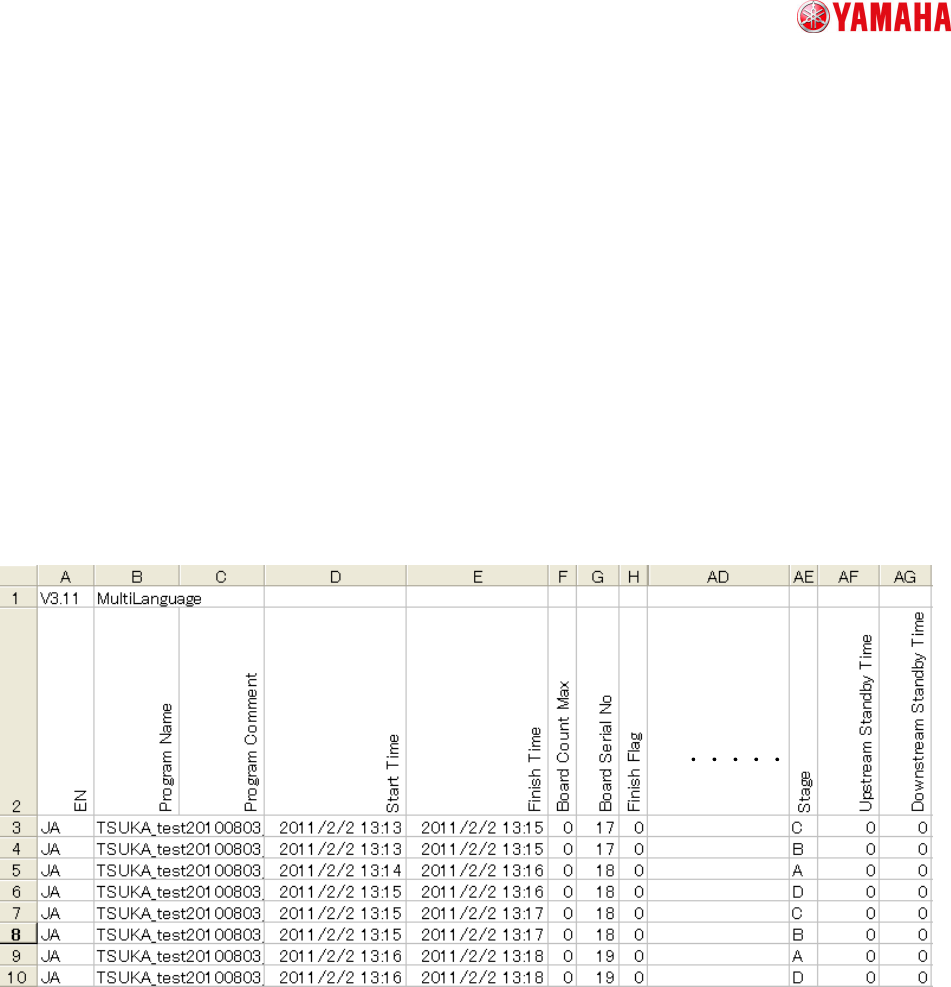

● Board Log
Board Log is outputted by each mounting stage from stage A to D in order.
