YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
41 / 53
Fig. 10-2
11. Feeder (Unit Log)
On the Feeder tab of Unit Log, it indicates information about machine’s Feeder.
It can confirm the use conditions of each Feeder set number and the occurrence conditions of the error.
Fig. 11-1
11-1 Grid with detail of each item
Chart. 11-1-1 Grid with detail of each item
<Item> <Example>
<Contents> <Version>
Version V1.00 Version of the history recorded.
[User]: Set No is according to Feeder a set position.
[Soft]: Set No is according to internal values of the
application.
*1
Set No 2 The number of the feeder set on the machine. *1
Data 2001/04/17
17:14:45
All: Date starting to record on feeder working. *1
Feeder Counter 25182 All: The number of working feeders. *1
Pick Error Counter
0 All: The number of Pick Errors with the feeder. *1
Error per cent (%)
0.0 All: Pick Error Counter / Feeder Counter x 100% *1
Data 2001/04/17
17:14:45
Maintenance: Date starting to record on feeder working. *1
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
42 / 53
Feeder Counter 25182 Maintenance: The number of working feeders. *1
Pick Error Counter
0 Maintenance: The number of Pick Error with feeder pick
up.
*1
Error per cent (%)
0.0
Maintenance: Pick Error Counter / Feeder Counter x 100%
*1
Data 2001/04/17
17:14:45
User: Date starting to record on feeder working. *1
Feeder Counter 25182 User: The number of working feeder. *1
Pick Error Counter
0 User: The number of error about feeder pick up. *1
Error per cent (%)
0.0 User: Pick Error Counter / Feeder Counter x 100% *1
*1: Items outputted from the original versions (XG: V1.00, YG: V2.00, YS: V3.00)
<All Error Rate (%)>
The Total error rate which add up all feeder data is indicated.
Pick Up Error Rate (%) : All Feeders total pick up error / All Feeders pick up times
11-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
Fig. 11
Fig. 11Fig. 11
Fig. 11-
--
-2
22
2
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
43 / 53

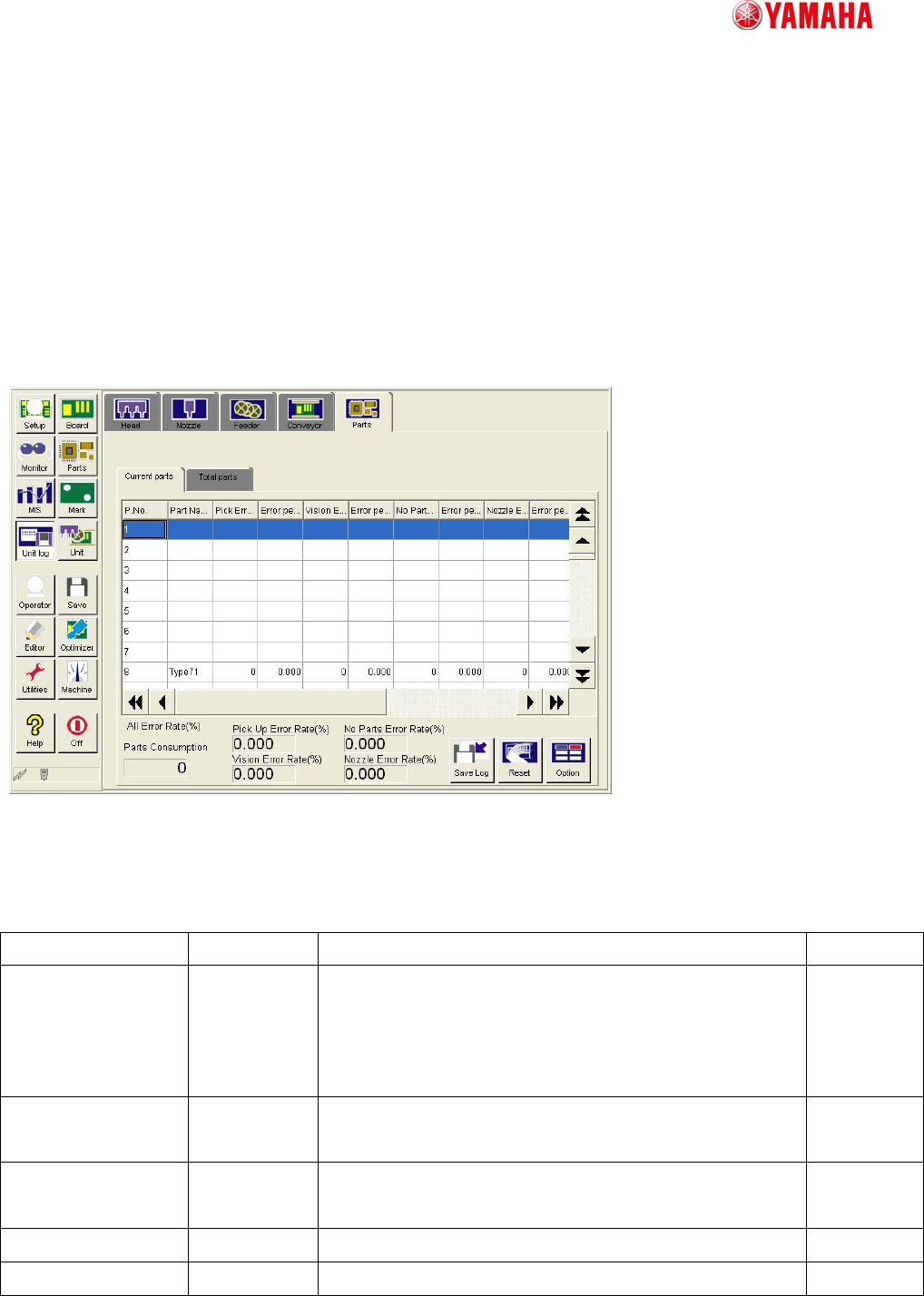

12. Parts (Unit Log)
In the Parts tab of Unit Log, it is indicated the information about Parts.
It has two tab “Current Data” and “Reenact Data”.
In “Current Data”, it can confirm the use conditions of Parts data and the occurrence conditions of the
error on current production board data.
In “Reenact Data”, it can confirm the use conditions of Parts data and the occurrence conditions of the
error on the past production board data.
Fig. 12-1
12-1. Grid with detail of each item
Chart. 12-1-1. Grid with detail of each item
<Item> <Example> <Contents> <Version>
Version V1.00 Version of the history recorded.
[User]: Set No is according to Feeder a set position.
[Soft]: Set No is according to internal values of the
application.
*1
Part Name YV100Xg_T
EST_1005
Component name. *1
Data 2001/04/17
17:14:45
Date of the last update of parts.
(Only for Reenact Data)
*1
Pick Error Counter 0 The number of Pick Errors with the parts. *1
Real Pick Error 0 The number of Rick Errors with the parts excluding No *6
