YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
40 / 53
17:14:45
Counter 25182 User: The number of working conveyors. *1
Error Counter 0 User: The number of Errors with the conveyor. *1
Error per cent (%) 0.0 User: Error Counter / Counter x 100% *1
*1: Items outputted from the original versions (XG: V1.00, YG: V2.00, YS: V3.00)

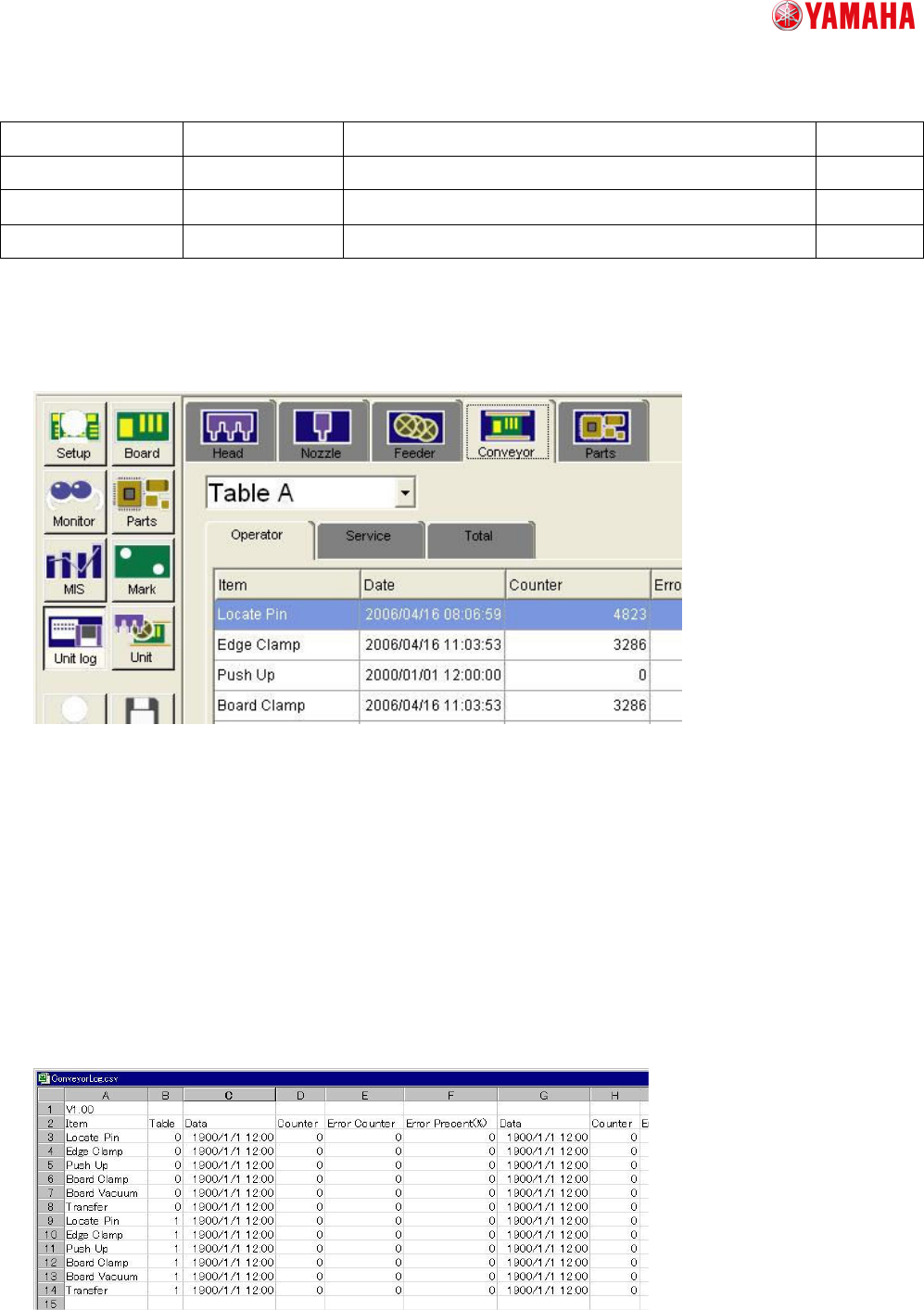

<Select Table>
In a machine with more than one table or one head unit, there is a combo box to choose a table.
Fig. 10-1-1
In a machine with more than one table or more than one head, there is a combo box to select a table.
<All Error Rate (%)>
The Total error rate which add up all data is indicated.
Counter Error Rate (%) : All items total conveyor error / All items working times
10-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
41 / 53
Fig. 10-2

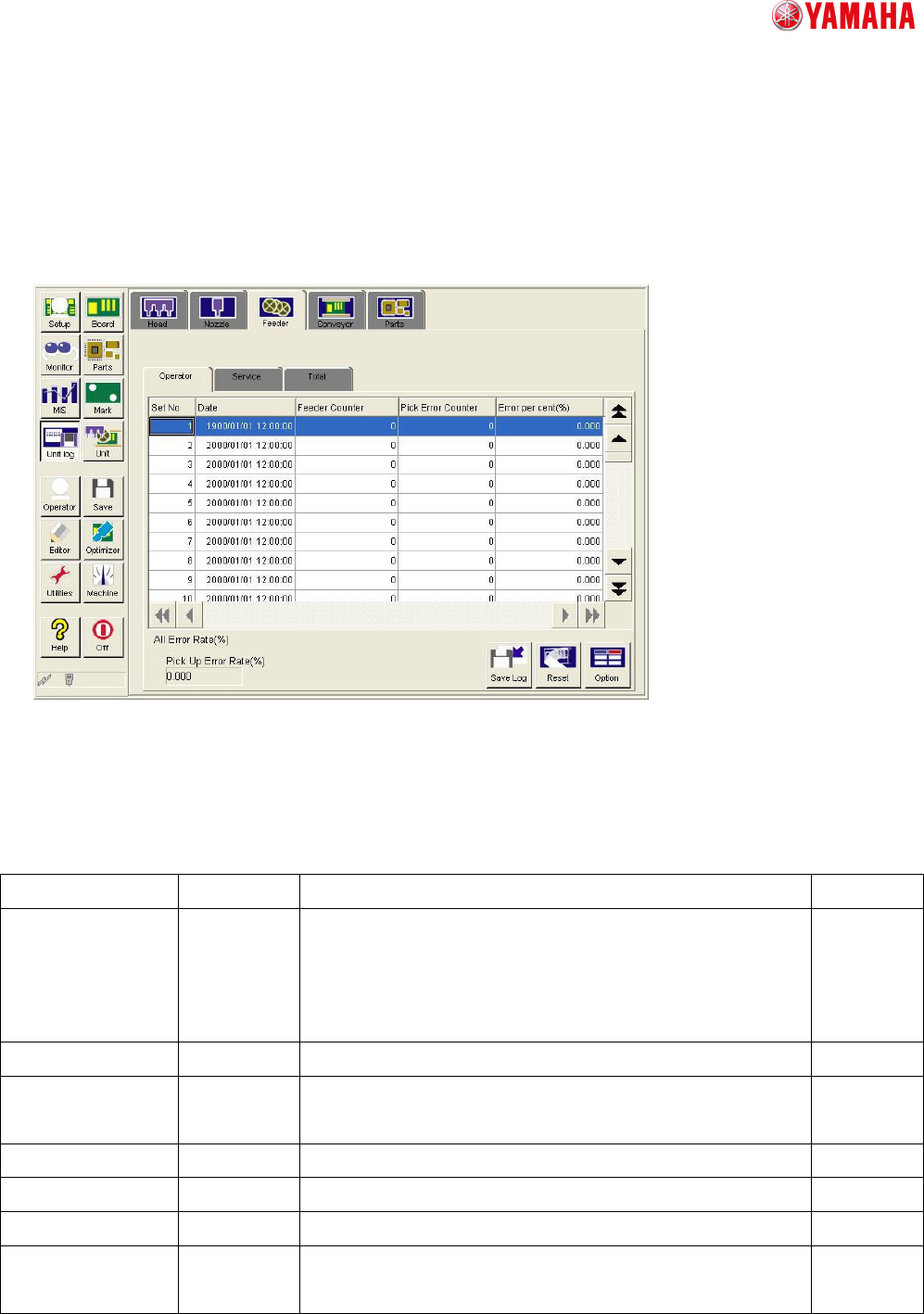

11. Feeder (Unit Log)
On the Feeder tab of Unit Log, it indicates information about machine’s Feeder.
It can confirm the use conditions of each Feeder set number and the occurrence conditions of the error.
Fig. 11-1
11-1 Grid with detail of each item
Chart. 11-1-1 Grid with detail of each item
<Item> <Example>
<Contents> <Version>
Version V1.00 Version of the history recorded.
[User]: Set No is according to Feeder a set position.
[Soft]: Set No is according to internal values of the
application.
*1
Set No 2 The number of the feeder set on the machine. *1
Data 2001/04/17
17:14:45
All: Date starting to record on feeder working. *1
Feeder Counter 25182 All: The number of working feeders. *1
Pick Error Counter
0 All: The number of Pick Errors with the feeder. *1
Error per cent (%)
0.0 All: Pick Error Counter / Feeder Counter x 100% *1
Data 2001/04/17
17:14:45
Maintenance: Date starting to record on feeder working. *1
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
42 / 53

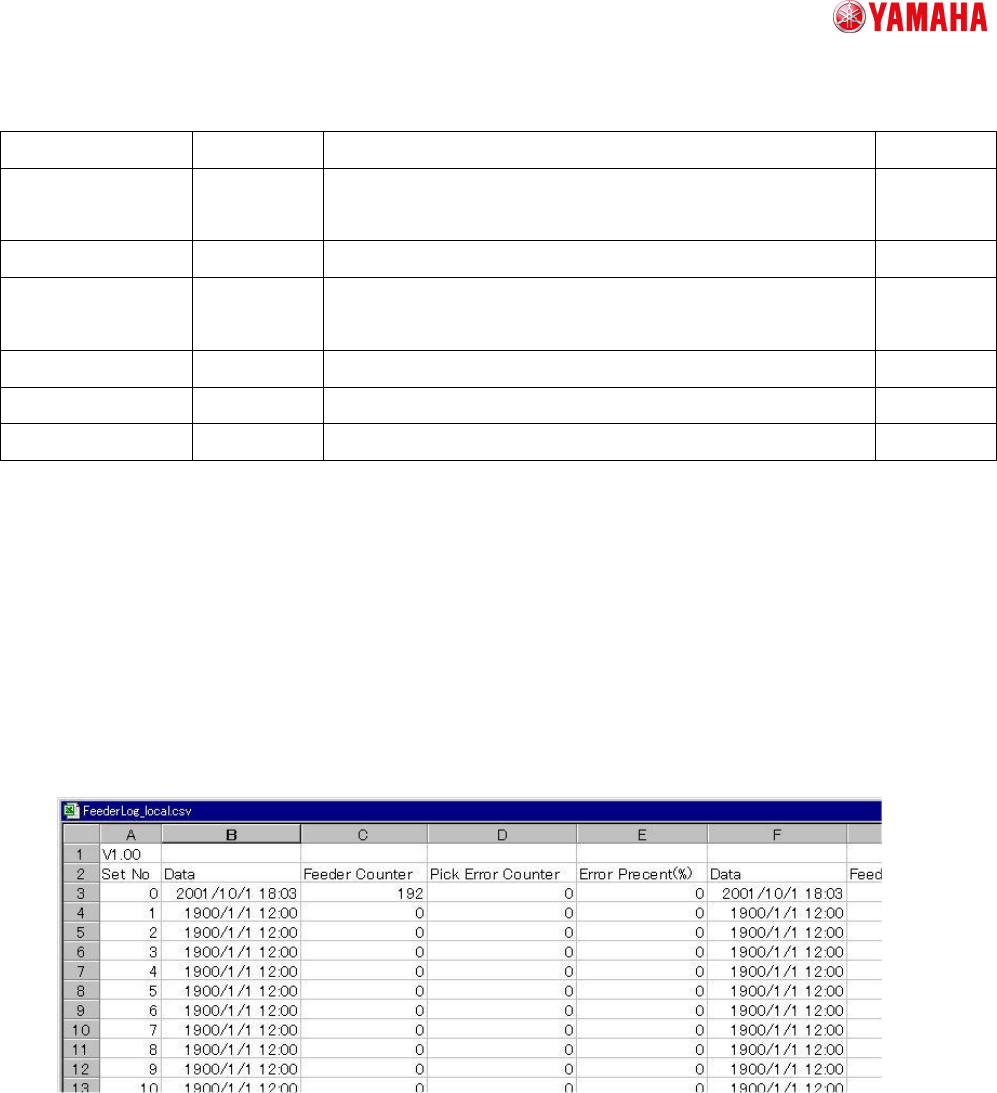

Feeder Counter 25182 Maintenance: The number of working feeders. *1
Pick Error Counter
0 Maintenance: The number of Pick Error with feeder pick
up.
*1
Error per cent (%)
0.0
Maintenance: Pick Error Counter / Feeder Counter x 100%
*1
Data 2001/04/17
17:14:45
User: Date starting to record on feeder working. *1
Feeder Counter 25182 User: The number of working feeder. *1
Pick Error Counter
0 User: The number of error about feeder pick up. *1
Error per cent (%)
0.0 User: Pick Error Counter / Feeder Counter x 100% *1
*1: Items outputted from the original versions (XG: V1.00, YG: V2.00, YS: V3.00)
<All Error Rate (%)>
The Total error rate which add up all feeder data is indicated.
Pick Up Error Rate (%) : All Feeders total pick up error / All Feeders pick up times
11-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
Fig. 11
Fig. 11Fig. 11
Fig. 11-
--
-2
22
2
