YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
16 / 53
Other Error 0 The number of other errors with
the board.
←
*1
Stop
Number
1 The number of times the
machine stops due to some
errors with the board.
←
*1
Operator
Call Time
(sec)
117 Time from when an error occurs
till when the error is cleared.
←
*1
Recovery
Time (sec)
246 Time from when the error is
cleared till when the machine
restarts.
←
*1
NG Blocks 0 The number of NG Blocks due to
Bad Mark Recognition.
←
*1
Mounted
Blocks
1 The number of Mounted Blocks.
←
*1
Upstream
Standby
Time (Sec)
1.20 None
Waiting time out of Standby CT
for a board from the upstream.
*2
Downstrea
m Standby
Time(Sec)
0.00 None
Waiting time out of Standby CT
for the down stream ready.
*2
Operation
Stop Time
*2
Board ID
(Edit:4)
123456789
0
Individual No. of each mounted
board. (Board ID)
←
*3
*1 Items outputted from the original versions(XG:V1.00, YG:V2.00, YS:V3.00)
*2 Items outputted from the original version of YS V3.00
*3 Board ID is outputted with data loaded by QR codes or barcodes when IT Option is available.
（Outputting Board ID of MIS is available with the following Versions）
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
17 / 53
Chart. 6-1 Versions supported to output Board ID
Machine Ver. Of Machine Software Ver. Of History Log
XG Series V1.23STDR1.000 or later V1.10 or later
YG Series V2.47STDR1.000 or later V2.10 or later
ＹＳ Series
V3.21STDR1.000 or later V3.10 or later

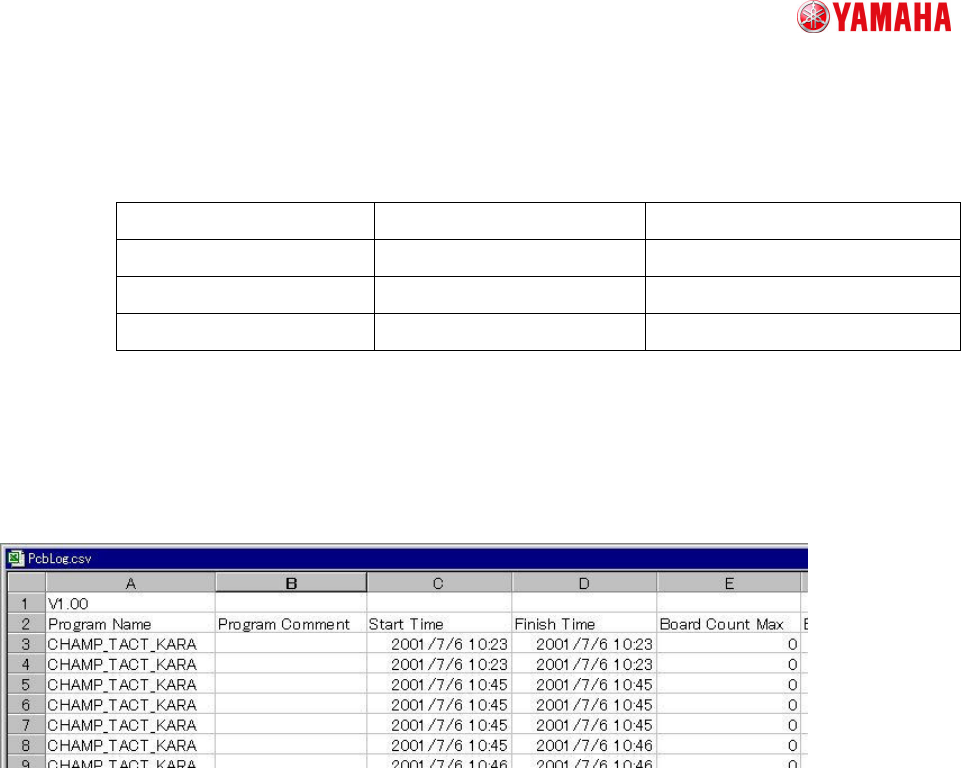

6-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
Fig. 6-2
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
18 / 53

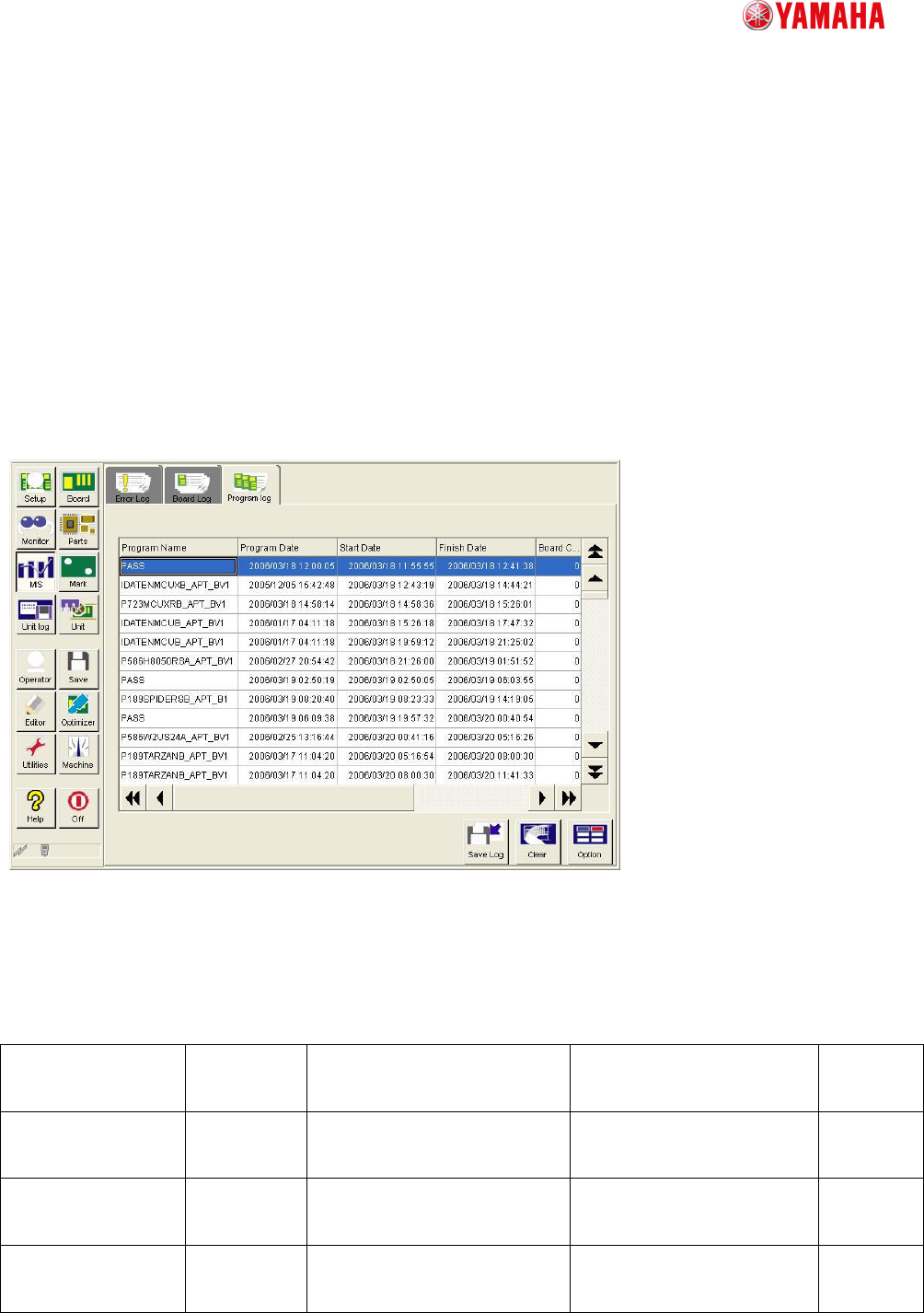

7. Program Log (MIS)
In the Program Log screen, it indicates information about production of each program. One program
is regarded from when one of the board data is selected till when it is switched to the next board.
A drive inside the machine can save 1,000 results of programs produced.
Machine, which has Program Log of Each Stage, outputs a line of logs for each stage and a line of
Program Log of all programs.
Therefore, one board has two outputted lines of Program log of each stage and of all programs
together.
Explains comparing the old format of logs to the new format of each stage as follows.
Fig. 7-1
7-1. Grid with detail of each item
Chart 7-1-1 Grid with detail of each item
<Item> <Example>
<Contents>
(XG/YG Series)
<Contents>
(YS Series)
<Version>
Version V1.00 Version of the history
recorded.
←
*1
Program Name TOPAZ_TE
ST_1005
Name of a lot.
←
*1
Program Comment
For_CUK93
001
Comment of the lot
←
*1
