YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
35 / 53

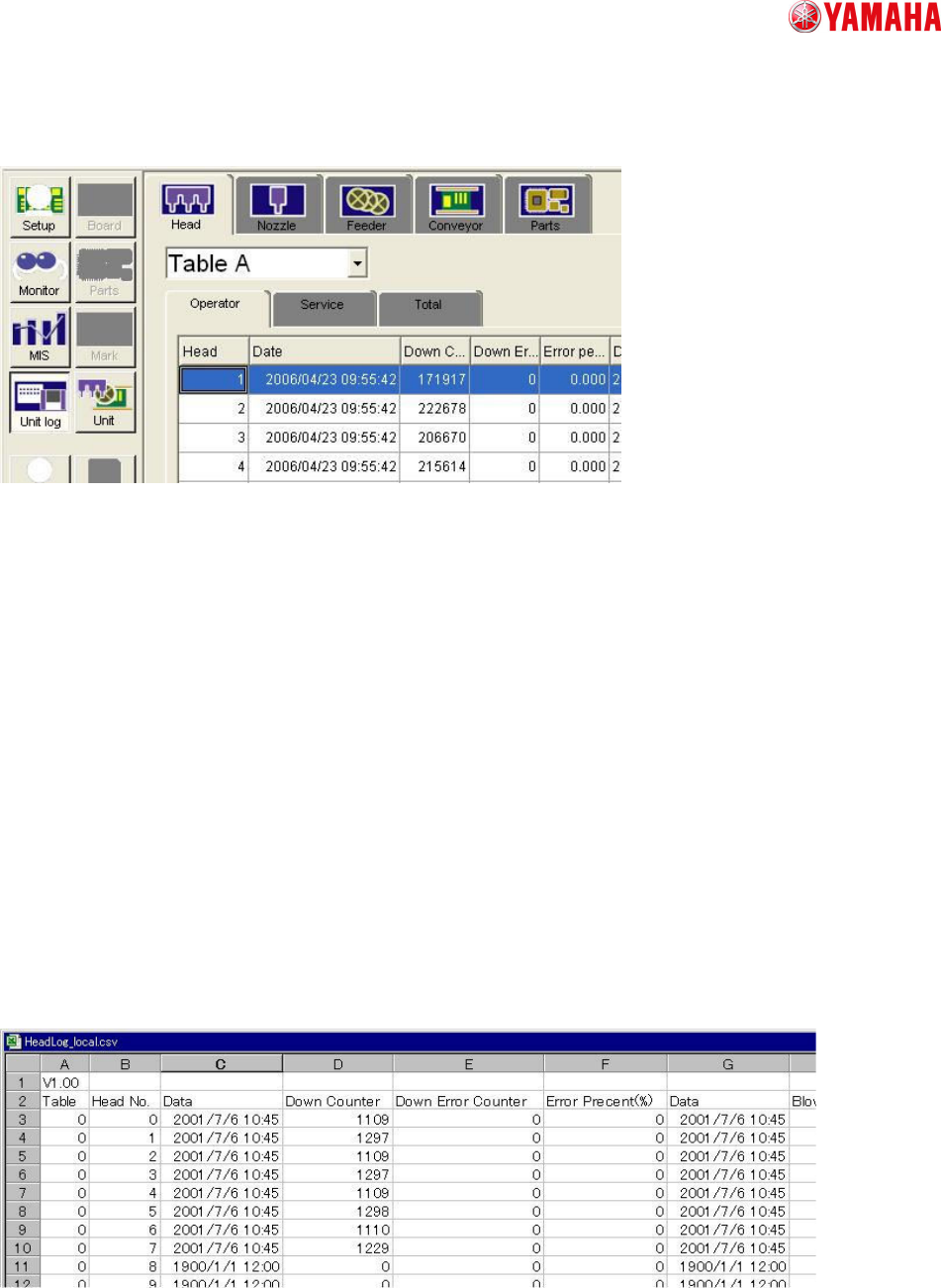

<Select Table>
Fig. 8-1-1
In case of the machine, which has two mount table or two head unit, the box for selecting table will
indicate.
<All Error Rate (%)>
It is indicated total error rate which calculated all head’s data.
Down Error rate (%) (Total number of Down Error Counter) / (Total number of Down Counter)
Blow Error rate (%) (Total number of Blow Error Counter) / (Total number of Blow Counter)
Pick Error rate (%) (Total number of Pick Error Counter) / (Total number of Pick Counter)
FNC Error rate (%) (Total number of FNC Error Counter) / (Total number of FNC Counter)
ANC Error rate (%) (Total number of ANC Error Counter) / (Total number of ANC Counter)
8-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
Fig. 8-2
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
36 / 53

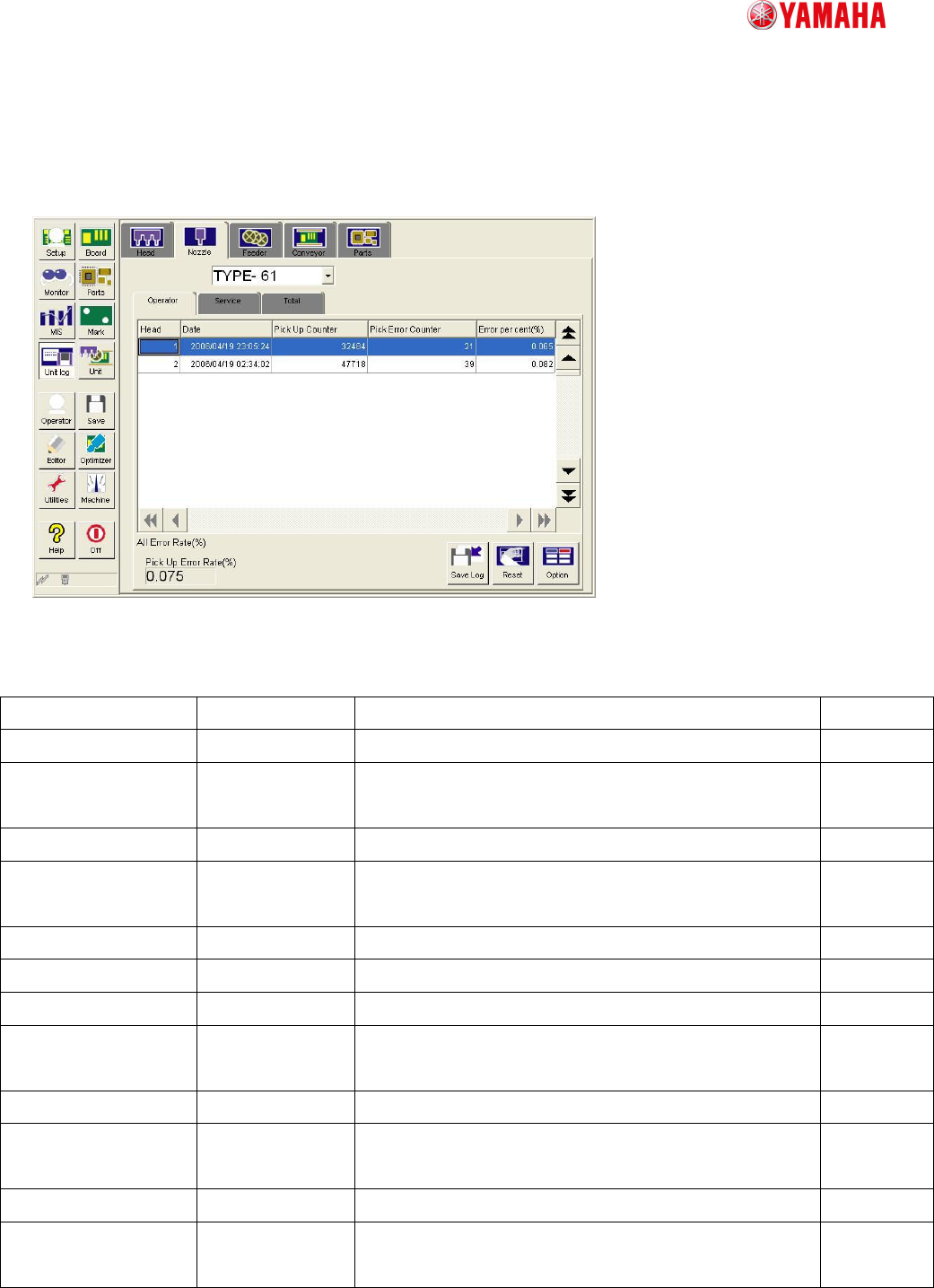

9. Nozzle (Unit Log)
In the Nozzle tab of Unit Log, it is indicated the information about machine’s Nozzle.
It can confirm the use conditions of each Nozzle and the occurrence conditions of the error
9-1. Grid with detail of each item
Chart. 9-1-1. Grid with detail of each item
<Item> <Example> <Contents> <Version>
Version V1.00 Version of the history recorded. *1
Table 0 Table No.
Table A:0 Table B:1
*1
Head 2 The numbers of head. 16 lines of head No.0-15 *1
Data 2001/04/17
17:14:45
All: Date starting to record on the Nozzle Pick. *1
Pick Up Counter 25182 All: The number of the nozzle picks parts. *1
Pick Error Counter 0 All: The number of Pick Error with the nozzle. *1
Error percentage (%)
0.0 All: (Pick Error Counter) / (Pick Counter) x 100% *1
Data 2001/04/17
17:14:45
Maintenance: Date starting to record on the Nozzle
Pick.
*1
Pick Up Counter 25182 Maintenance: The number of the nozzle picks parts. *1
Pick Error Counter 0 Maintenance: The number of Pick Error with the
nozzle.
*1
Error percent age(%)
0.0
Maintenance: (Pick Error Counter) / (Pick Counter) x 100%
*1
Data 2001/04/17
17:14:45
User: Date starting to record on the Nozzle Pick. *1
YAMAHA Motor Co Ltd.,
IM Operation
Mounter Soft Gr
MDOC-SOFT50011
TT6094.ProductionHistory(YAMAHA_BRAND).doc
37 / 53
Pick Up Counter 25182 User: The number of the nozzle picks parts. *1
Pick Error Counter 0 User: The number of Pick Error with the nozzle. *1
Error percentage (%)
0.0 User: (Pick Error Counter) / (Pick Counter) x 100% *1
*1: Items outputted from the original versions (XG: V1.00, YG: V2.00, YS: V3.00)

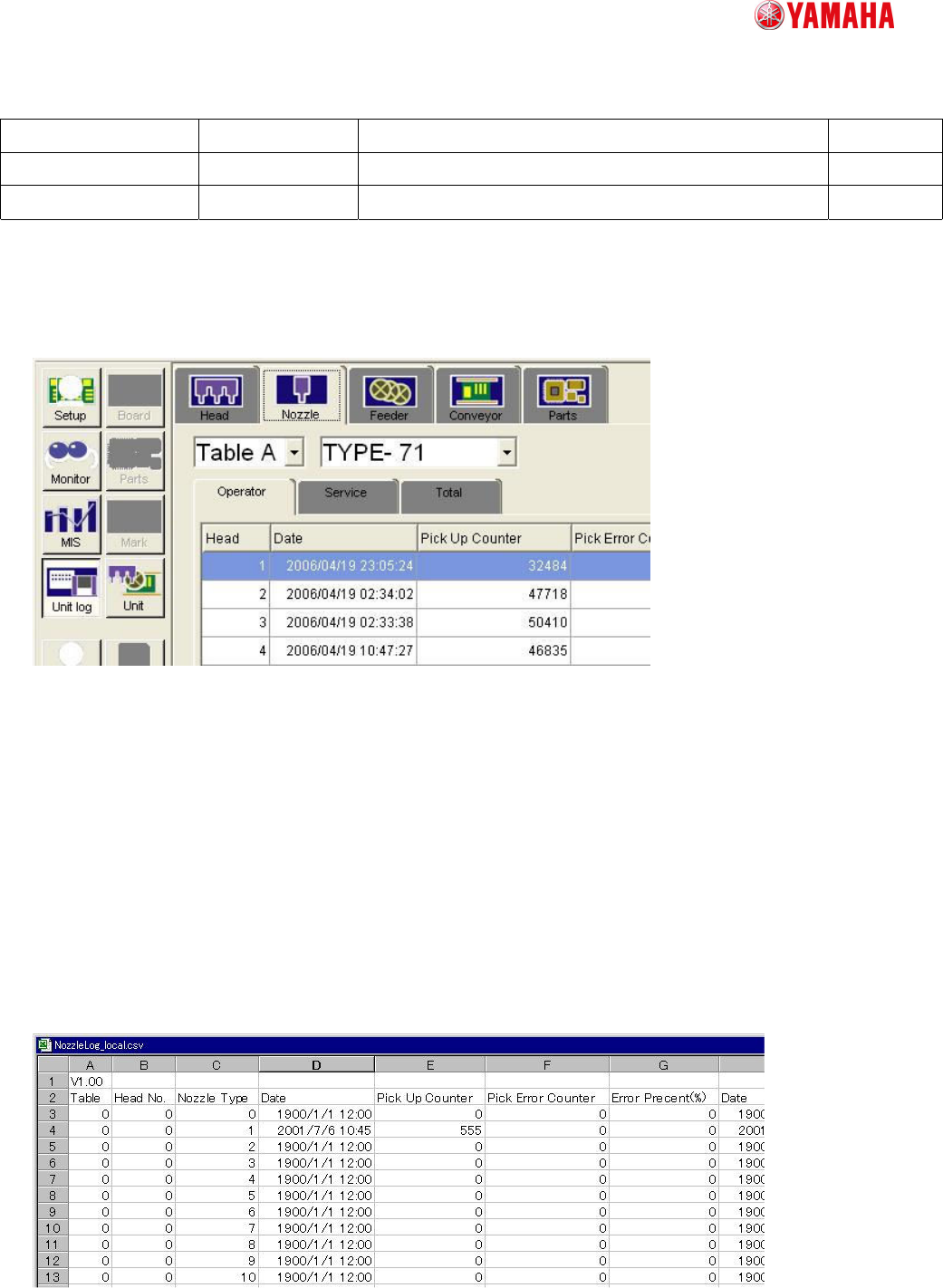

<Select Table>
In a machine with more than one table or one head unit, there is a combo box to choose a table.
Fig. 9-1-1
<Select Nozzle Type>
The box for selecting Nozzle type is indicated.
<All Error Rate (%)>
The Total error rate added up all heads data is indicated.
Pick Up Error Rate (%) : All Heads total pick up error / All Heads pick up times
9-2. File format
It indicates a version in the 1
st
row, “Grid with detail of each item” in the 2
nd
, and Error information in
order of occurrence below the 3
rd
row.
