3 Function Description and Design

3.1 Function Description

User Manual SIPLACE MeasuringFeeder X 03/2020 13

3 Function Description and Design

3.1 Function Description

In some industries, it is of high importance to verify the electrical characteristics of components

before they are placed on a printed circuit board (PCB). Components could be defective, they could

have the wrong label on the packaging or they could even be fake components without function.

The time delay between placement and an electrical test like an In-Circuit-Test (ICT) is typically

fairly long and it's important so save that time by verifying the authenticity and integrity of the

component already during placement. Some components cannot be tested with an ICT because of

the electrical circuit they are installed in.

Usually, it is not necessary to test every component but rather do random inspections in every lot.

The very first component out of each tape is always measured in order to verify that the setup is

correct.

The MeasuringFeeder X can measure the electrical value of a component. To determine the value

correctly, the MeasuringFeeder X needs to know the component type to be measured. To reduce

measurement time, the MeasuringFeeder X also needs to know the target values in order to set the

correct measurement range. Component types and their corresponding target values are pre-selec-

ted in the line software (SIPLACE Pro) during production planning.

The following table shows the measurement ranges of the different component types that can be

pre-selected in the line software:

Type ValueRange Measurement Accuracy Polarity Additional Value

Resistor 0.1Ω to 1MΩ ±5% +0 mΩ / -200 mΩ No -

Standard

Capacitor

1) 3)

1pF to 100µF ±5% +5 pF / -2 pF No -

Polarized

Capacitor

1) 3)

100nF to 500µF ±5% +5 pF / -2 pF No Rated Voltage

(Volt) 3.6to60

default: 35

Inductor

1µH to 1mH ±15% No -

Diode 0.2V to 4.0V ±10% ±100 mV

Yes -

Orientation corresponds to IPC7315 (Pin 1 left side)

At a measurement frequency of 1 kHz or 10 kHz (depending on component value)

At a measurement current of typically 10 mA

The MeasuringFeeder X supports the following component sizes:

●

Chip components: 0201 up to 1210

●

Other components: 0.6 mm x 0.3 mm up to 6.0 mm x 3.2 mm

The capacity measurement of a capacitor depends on the frequency and the voltage which is ap-

plied to the capacitor. It is also depending on the class of capacitor. The class 1 capacitors are not

impacted by the voltage and the frequency. But class 2 and 3 show a significant dependency.

The manufacturers of class 2 and class 3 capacitors typically specify for the measurement of the

capacity conditions (frequency & voltage) which are close to typical use cases. Only if the recom-

mended frequency and voltage (from the data sheet) is applied during the measurement, the nom-

inal capacity can be measured.

The MeasuringFeeder X can provide two frequencies 1 kHz or 10 kHz and a limited voltage range

depending on the frequency.

3 Function Description and Design

3.1 Function Description

14 User Manual SIPLACE MeasuringFeeder X 03/2020

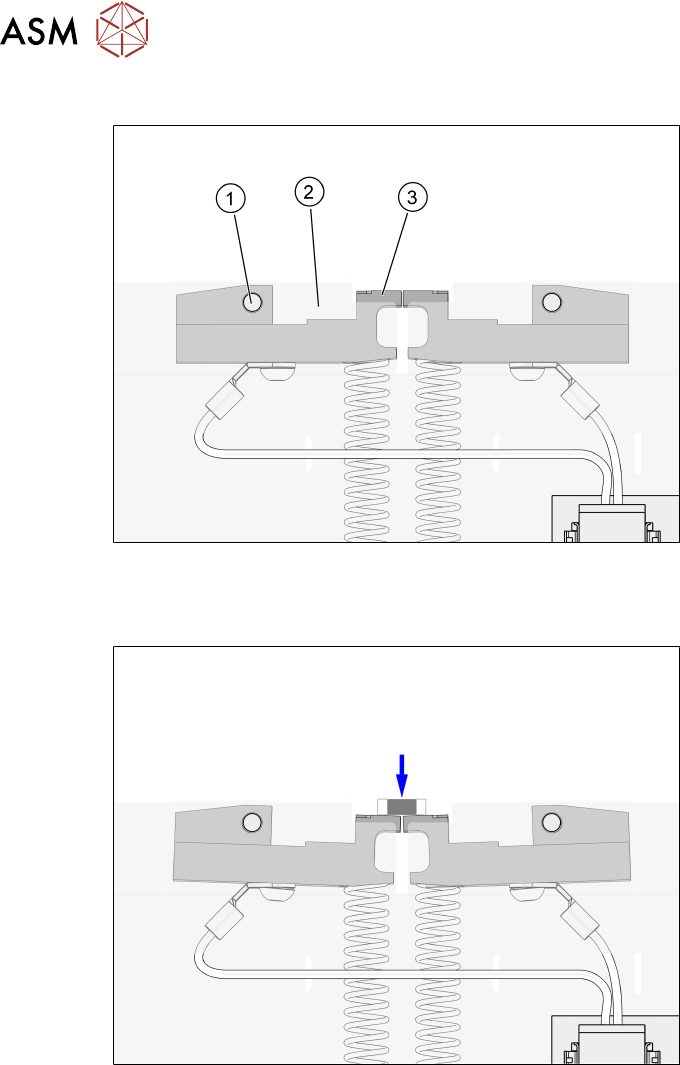

The Measuring Process

1. Pivot

2. Contact plate holder

3. Contact plate

The placement head picks up the component from the feeder and presses the component down

against the contact plates of the MeasuringFeeder X. The contact plates pivot down against two

springs that provide the counter force maintaining contact between the component and the contact

plates. If the height of the component leads is uneven, the difference in height is compensated by

the deflection of the contact plates.

Depending on the type of component, the mere measurement takes between about 300 milli-

seconds and 2 seconds.

The Measuring Position

The measurement position of small components on the measuring zone of the contact plates

changes for every measurement in order to decrease wear and increase the life time of the contact

plates. For a component size larger than 1206 only one measurement position is possible.
