1 Introduction 1.1 Module Description User Manual SIPLACE MeasuringFeeder X 03/2020 5 1 Introduction This manual provides technical information and describes how to operate the SIPLACE Measuring- FeederX on SIPLACE plac…

4 User Manual SIPLACE MeasuringFeeder X 03/2020

Table of Contents

4.1.5 Selecting the Nozzles for Measuring and Placement.. 25

4.1.6 Using Special Nozzles for Measuring Small Components.. 26

4.2 Handling the MeasuringFeeder X.. 27

4.3 Positioning and Docking the MeasuringFeeder X.. 27

4.4 Measuring Components.. 29

4.4.1 Measuring Components automatically.. 29

4.4.2 Measuring Components manually.. 31

4.4.3 Skipping the Measurement of Components.. 32

4.5 Handling Measurement Failures.. 33

4.5.1 Exchanging the faulty Component and Repeating the Measurement.. 34

4.5.2 Skipping the Measurement of a faulty Component.. 35

4.6 Removing the MeasuringFeeder X.. 36

1 Introduction

1.1 Module Description

User Manual SIPLACE MeasuringFeeder X 03/2020 5

1 Introduction

This manual provides technical information and describes how to operate the SIPLACE Measuring-

FeederX on SIPLACE placement machines.

1.1 Module Description

The SIPLACE MeasuringFeeder X is a special feeder module that provides the possibility to test

the electrical values of a component.

The SIPLACE MeasuringFeeder X is positioned on a changeover table like a standard 8mm X

feeder module.

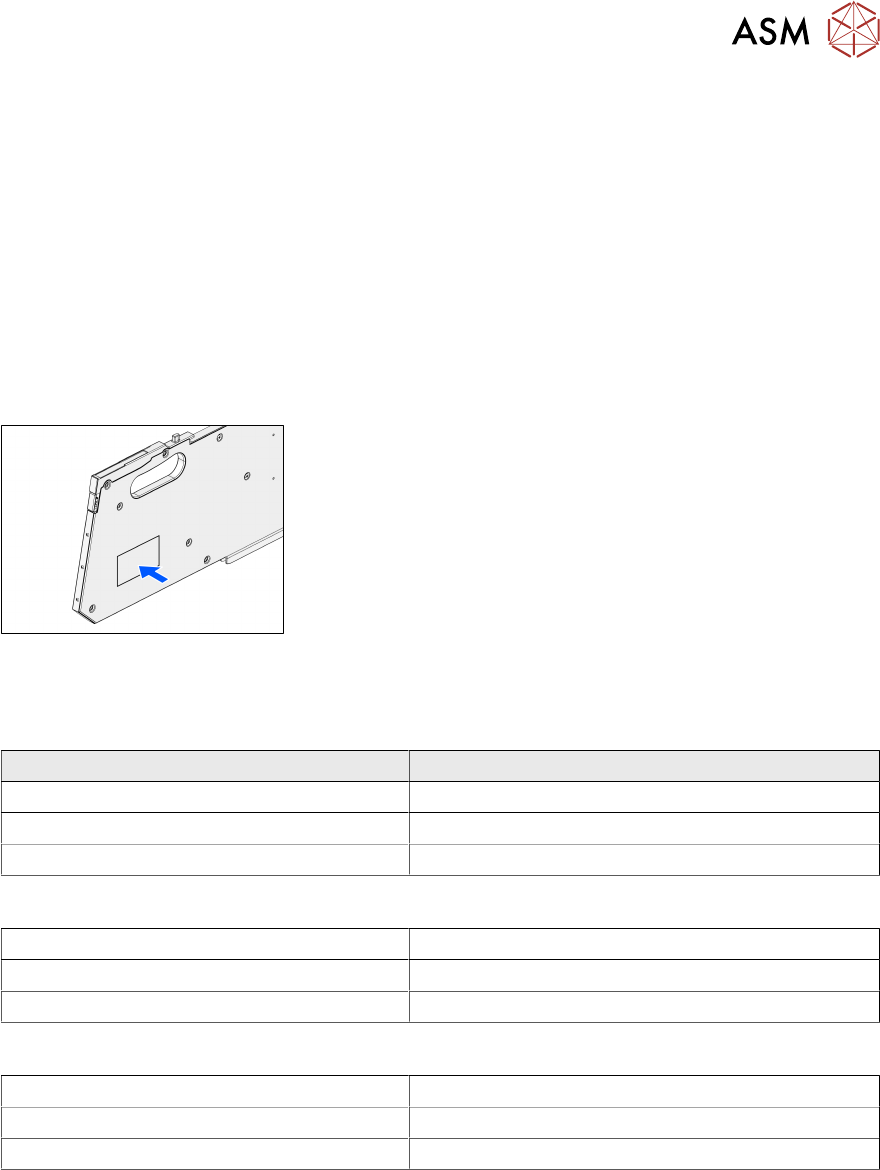

1.1.1 Typeplate and Serial Number

The type plate with the serial number is positioned on the front of the right side panel of the

MeasuringFeederX.

1.1.2 Technical Data

SIPLACE MeasuringFeeder X

Length x Width x Height 581mm x 10.8mm x 200.5mm

Weight 1.5kg

Nominal Power 5W

Ambient Conditions for Packaging, Transportation and Storage

Temperature Range -25°C to 55°C

Atmospheric Humidity up to 95%

Ambient Pressure up to 1700m height without pressure equalization

Ambient Conditions for Module Operation

Temperature Range 15°C to 35°C

Atmospheric Humidity 30% to 75%

Ambient Pressure > 750mbar

1 Introduction

1.1 Module Description

6 User Manual SIPLACE MeasuringFeeder X 03/2020

1.1.3 EU Declaration of Conformity

The product described below conforms to the regulations and standards listed in the EU Decla-

ration of Conformity provided.

Type SIPLACE MeasuringFeeder X

Item no.: 00141440-xx

Manufacturer:

ASM Assembly Systems GmbH & Co. KG

Rupert-Mayer-Str. 44

81379 München

Deutschland

1.1.4 Correct Usage

The product may only be used for the application cases described in the catalogues and technical

specifications i.e. for placement of SMD components and only in connection with the third party

devices and components recommended or approved by ASM Assembly Systems GmbH & Co. KG.

Any other use is deemed to be incorrect and not as prescribed.

If the product is not used as prescribed, ASM Assembly Systems GmbH & Co. KG will accept no

liability for any damage that may occur and will not guarantee that the components will work prop-

erly and without problems.

Prescribed or correct usage includes the observance of all the instructions in the user manual.

The proper and safe operation of the product requires correct transportation, storage, installation

and assembly, plus careful, accurate utilization and servicing.

1.1.5 Incorrect Usage

Failure to use the product as prescribed can result in both danger to life and limb and material

damage. For this reason, non-prescribed usage is prohibited. If the product is not used as pre-

scribed, ASM Assembly Systems GmbH & Co. KG will not accept liability for any damage that may

occur and will not guarantee that the components will work properly and without problems.

Non-prescribed use of the module includes the following examples:

●

Operation of the module with safety equipment deactivated or removed.

●

Placement of components that do not meet the permitted specification.

●

Use of unauthorized accessories and additional modules.

●

Use of the module by unqualified personnel.

1.1.6 Environmentally-friendly disposal of materials and components

Our products are manufactured using only materials and parts that can be easily separated and

disposed of in an environmentally-friendly way.

NOTICE

Observe the applicable regulations

The company operating the system has sole responsibility for the proper, environmentally-

friendly disposal of machines, working materials, consumable materials and wear parts.

► Please observe your national statutory provisions for waste disposal and environ-

mental protection.
