3.2.4 Control Panel
The control panel on the MeasuringFeeder X consists of a status-LED and the removal handle to
dock and undock the module from the changeover table.
1. Status-LED
2. Removal handle
The status-LED displays the current operational state of the MeasuringFeeder X:
Color
Green The MeasuringFeeder X is docked, functional and active in the current setup.
Orange Indicates a warning.
Red An error has occurred.
Off The MeasuringFeeder X is not docked or not active in the current setup.
3 Function Description and Design
3.2 Design
18 User Manual SIPLACE MeasuringFeeder X 03/2020
4 Operation
4.1 Settings in the Line Software
User Manual SIPLACE MeasuringFeeder X 03/2020 19
4 Operation
4.1 Settings in the Line Software
In order to use the MeasuringFeeder X in a placement task, the appropriate settings must be
defined in the line software (SIPLACE Pro, version 15.0 or later) during production planning:
●
Integrating the MeasuringFeeder X in the current machine setup
●
Defining the electrical characteristics of components
●
Marking the components that shall be measured
●
Defining the measurement occurrence of a component
●
Selecting the nozzles for measuring and / or placement of a component shape
4.1.1 Setting up the MeasuringFeeder X
The MeasuringFeeder X must be integrated in the current machine setup in order to use it for
measuring components. The MeasuringFeeder X can be set up on any track of a changeover table
that the placement head is able to reach. The MeasuringFeeder X occupies one track on a
changeover table.

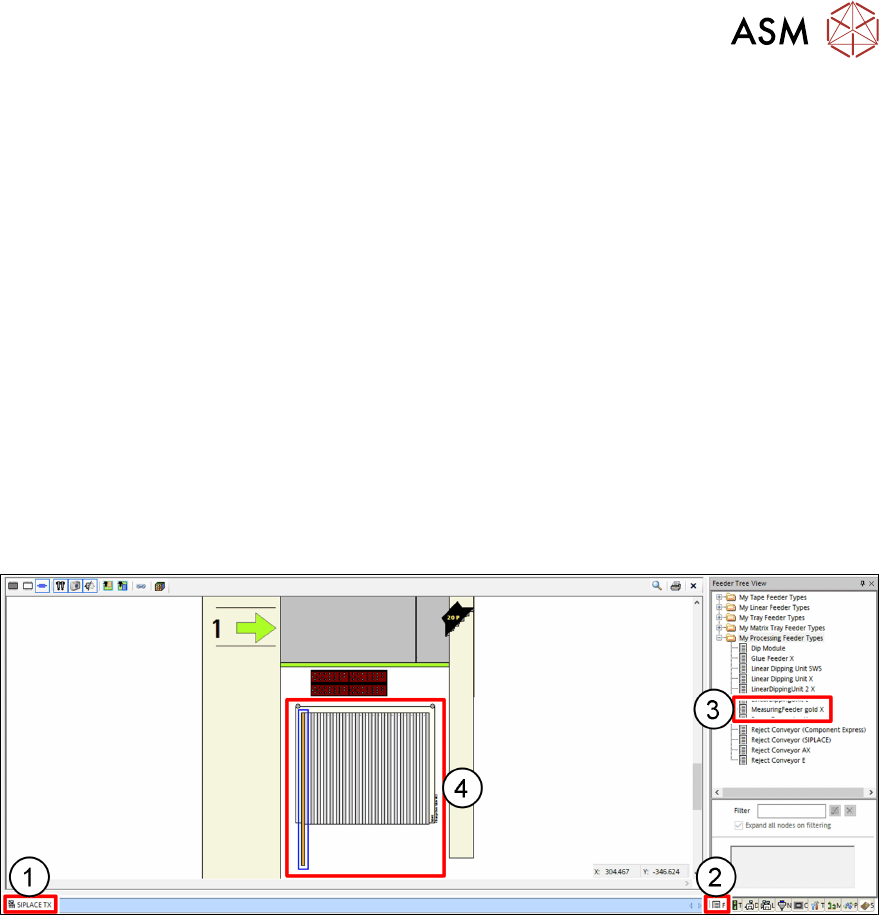

► Click on the tab(1) of the current setup.
► Click on the Feeder Tree View tab(2).
► Select the MeasuringFeeder X from the Feeder Tree View(3) and drag it onto the appro-
priate track on the changeover table(4).
