4.5 Handling Measurement Failures

User Manual SIPLACE MeasuringFeeder X 03/2020 35

4.5.2 Skipping the Measurement of a faulty Component

There might be situations where a component is faulty but shall still be placed. Or a component

cannot be measured because of a short circuit problem or dirty nozzles. In such cases, it might be

useful to exclude that component from measurement:

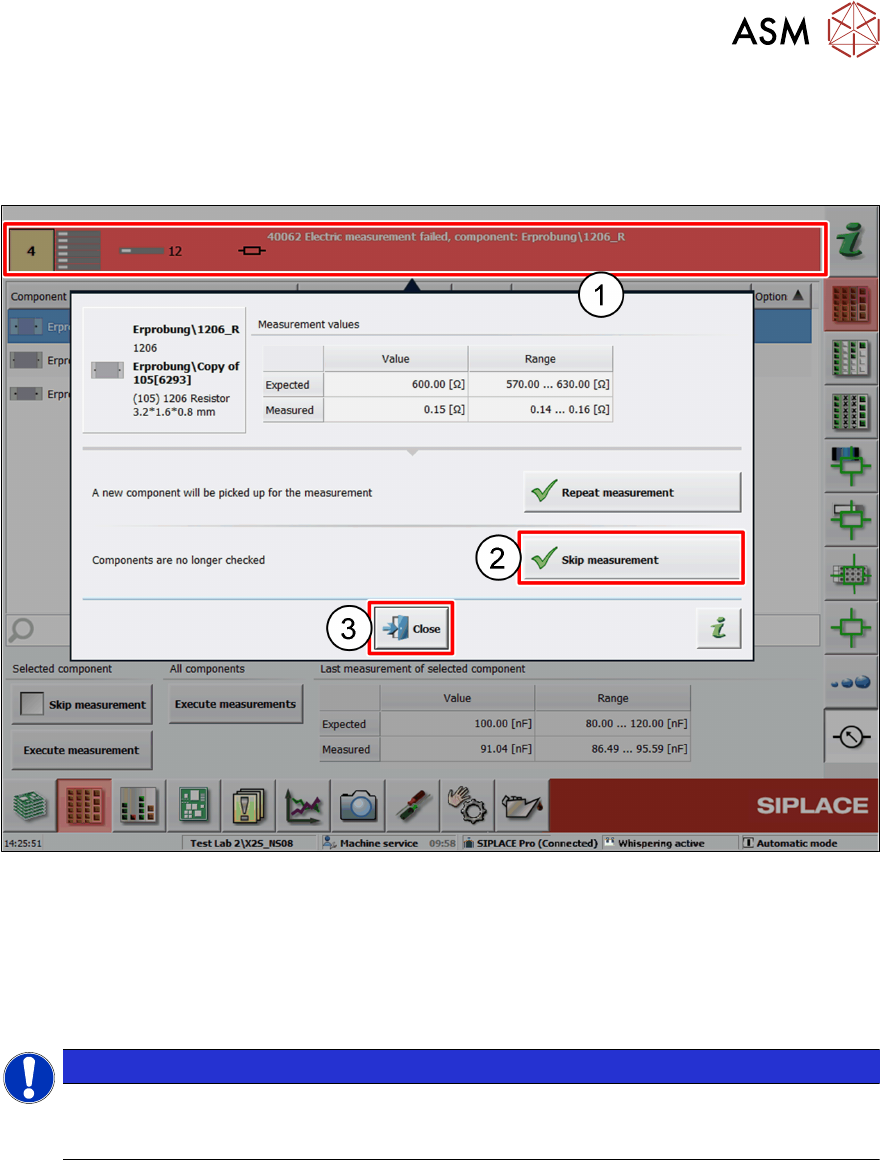

► Click on the error message (1).

A dialog window is displayed.

► Click on Skip measurement (2).

The component is excluded from measurement. Production continues, and the board will be fin-

ished.

► Click on Close (3).

NOTICE

If a component is set up on more than one feeder (track), only the track which pro-

voked the measurement failure is excluded from measurement. The same compon-

ents on the other tracks are still measured.

4 Operation

4.6 Removing the MeasuringFeeder X

36 User Manual SIPLACE MeasuringFeeder X 03/2020

4.6 Removing the MeasuringFeeder X

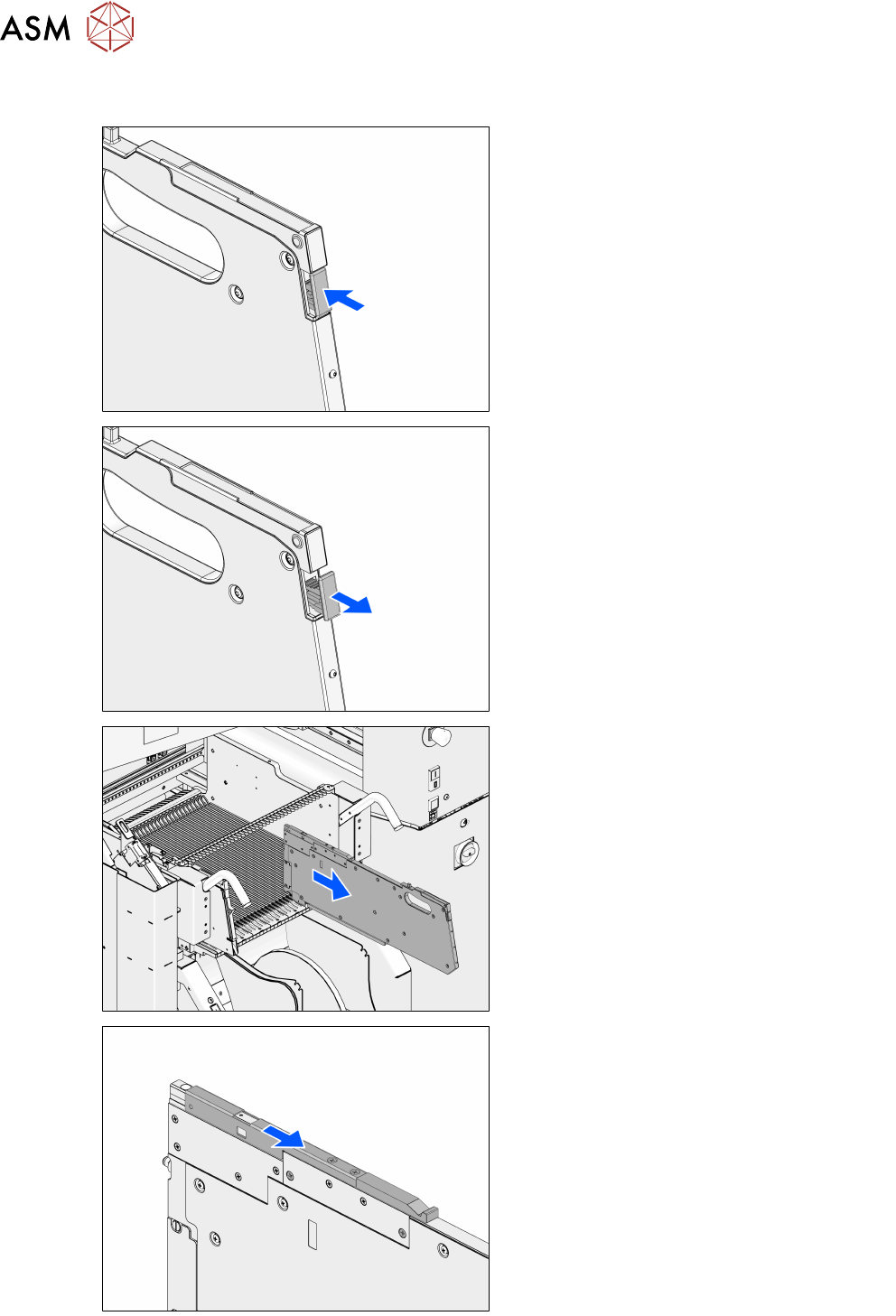

► Push the removal handle fully in and

release it again.

The Logout procedure is started and the remo-

val handle is released.

► After the status-LED lights off, carefully

pull the MeasuringFeeder X back with the

removal handle.

► Remove the MeasuringFeeder X from the

changeover table.

► Close the protective cover.
