Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

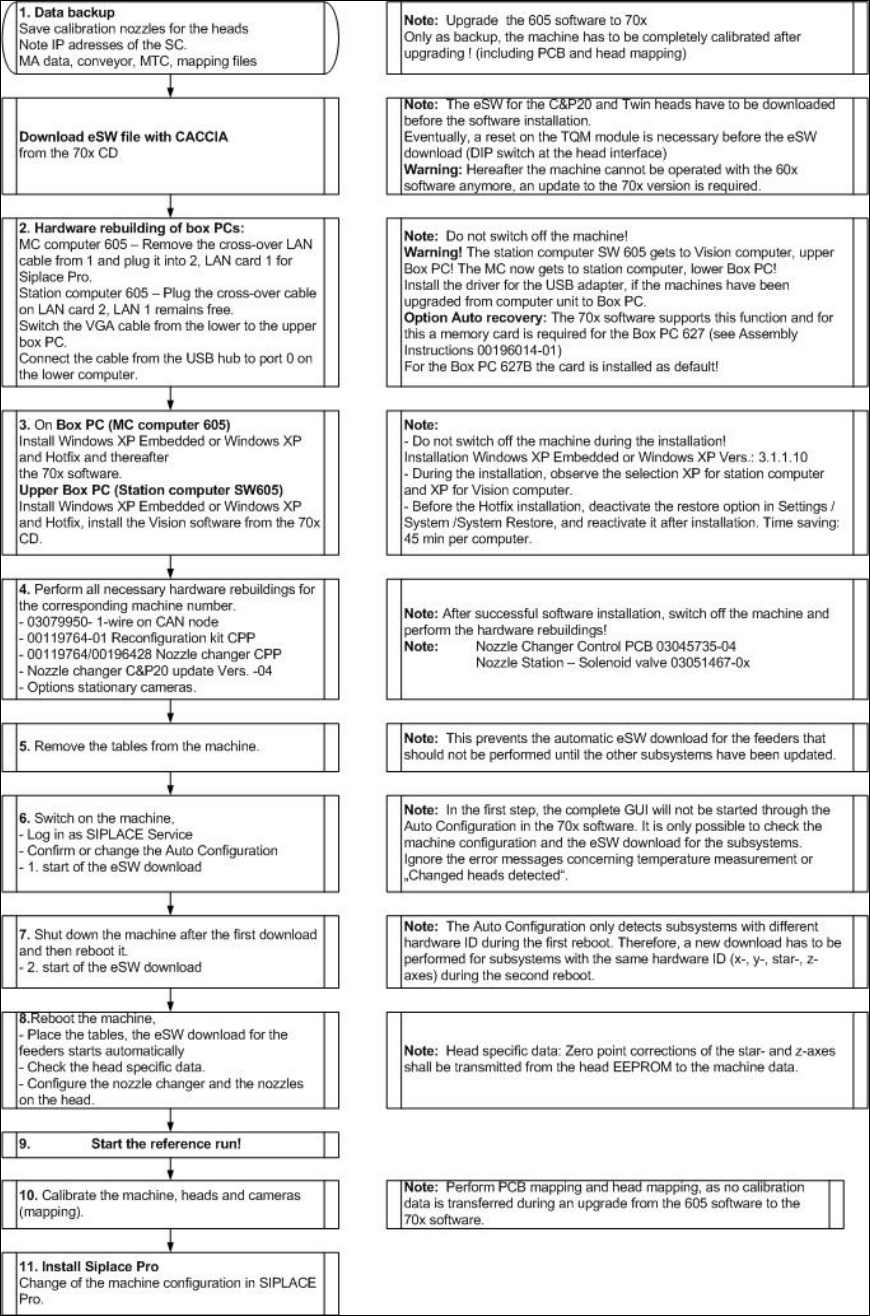

Flowchart: Upgrading from 60x software versions
Figure 3-1: Upgrading from 60x software versions
13
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition
4 Requirements
4.1 SIPLACE X- , SX- and DX-series software components
4.1.1 Station
The station uses one of the following operating system configurations on the machine and Vision
computer(s):
– Microsoft Windows XP Embedded with Service Pack 2
– Microsoft Windows XP Professional (incl. Service Pack 3 and most recent hot fixes)
The machine computer and Vision computer software can optionally be used in one-computer or
two-computer operation.
4.1.2 Machine components
The following versions of other machine components are required for the station software to
function correctly:
SIPLACE station software SIPLACE Vision SIPLACE Pro
Version 705.04 SP2 Version 432 Version 9.3
CAUTION
The functional statuses of the station computer, Vision computer and SIPLACE Pro
software must be compatible, as specified above. Another configuration is not supported.
14
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition
4.1.3 Embedded software
You will find the used eSW versions listed in the eSW_Firmware_Files.txt file in the Documentation
directory on the installation CD.
4.1.3.1 Composition of the file name
1..6 7 8 9 10 11 12 13 14 15 16 17 18 19
Sub-
system
name
Sepa-
rator
Variant ID Hard-
ware ID
1)
Target
2)
Versio
n
Release . File type
_ 0 = no
variant
00 0 = BIOS 00
H
00
H
. HEX
_ A =
Variant
(SOKO)
…
1 = App 1 … … . JED
See table
in section
4.1.3.2
_ ... 99 2 = App 2 FF
H
FF
H
. BHX
Table 4-1: Composition of the file name
1)
Change compared with old file name (from one to 2 digits)
2)
Extended to second CAN
15
