5.4.7 Finalizing the installation

NOTICE

The status only lists the programs that have just been installed. If, for instance, the

current version of SIPLACE Vision was already installed, it is not listed here.

If errors occurred during installation, the status is indicated by the Error button being

displayed next to the program name instead of the Ok button.

► If you wish to read the log of the installation of any program, click the Ok (or Error) button next

to the name of the program. The Notepad is started and displays the appropriate file.

Figure 5-13: Finalizing the installation

► Click the Finish button.

CAUTION

► Wait a few seconds after you have clicked the Finish button, before you switch off

the computer / the machine!

As some installation steps are not performed until the end of the installation by the

InstallShield, the installation might otherwise be incomplete, what may cause

problems during further installations.

► Optionally, you can now install the SIPLACE Smart GUI.

CAUTION

In two-computer operation the Vision computer must also

be installed (see chapter 6)

before you shut down the machine computer, as the station will otherwise not boot

correctly due to version conflicts.

In one-computer operation the Vision computer software is automatically installed during

the station software installation.

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

5.5 Installing SIPLACE Smart GUI

The SIPLACE Smart GUI can optionally be installed after the station software has been installed. If

the station software has not been installed first, a corresponding error message is displayed.

► Insert the SIPLACE Smart GUI installation DVD in the drive.

It is read in automatically.

NOTICE

If auto start has been disabled for the drive, you must start the installation manually from

the Windows Explorer.

► Open the Explorer and start SmartGUI.exe under drive E by double clicking it.

The SIPLACE Choice Center dialog box is opened.

Figure 5-14: "SIPLACE Choice Center" dialog box

► Click the Smart GUI for station computer button.

Installation of the SIPLACE Smart GUI continues with the welcome screen.

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

5.5.1 Welcome screen

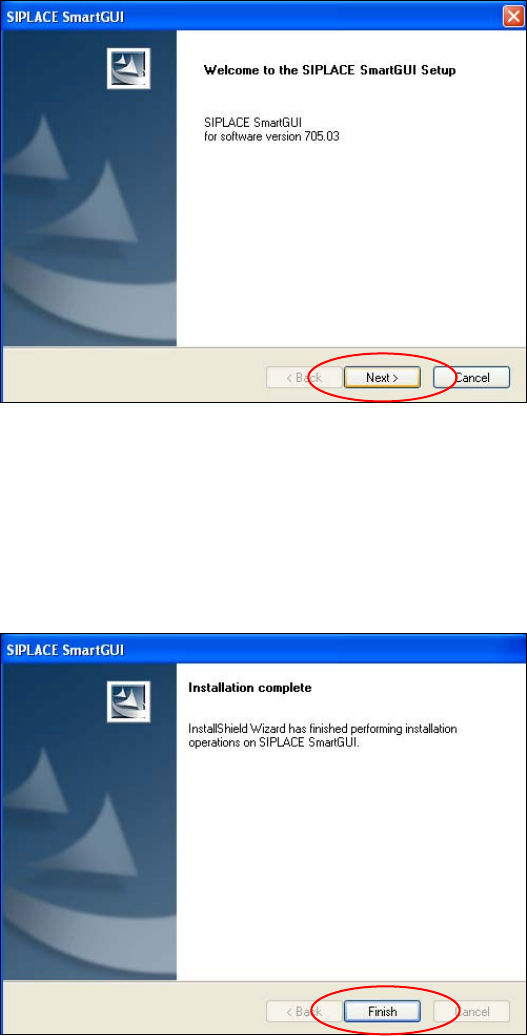

Figure 5-15: Welcome screen

► Click the Next button.

The necessary files are installed.

5.5.2 Finalizing the installation

Figure 5-16: Finalizing the installation

► Click the Finish button.
