Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition 4.2.1 Machine/Vision computer (i n two-computer operation) Name SIMATIC Box PC 627 CPU / clock frequency Pentium M 760 / 2 GHz RAM 1 GB Hard disk …

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

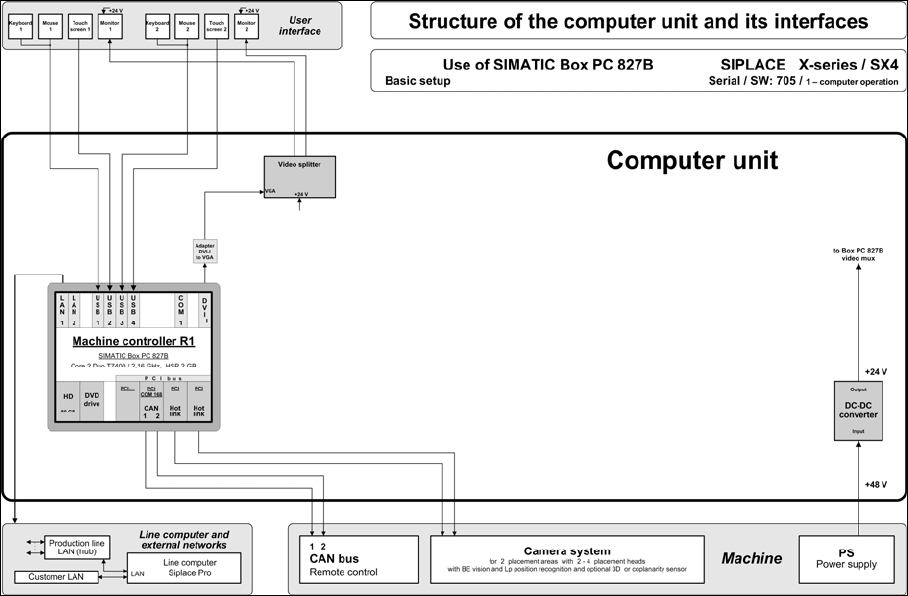

The following diagram shows the hardware components of the computer system for the SIPLACE

X-series and SX4 machines in one-computer operation:

Figure 4-4: Hardware components of the computer system for the SIPLACE X-series and SX4 in one-computer operation

(block diagram)

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

4.2.1 Machine/Vision computer (in two-computer operation)

Name SIMATIC Box PC 627

CPU / clock frequency Pentium M 760 / 2 GHz

RAM 1 GB

Hard disk Yes

External DVD drive pluggable via USB

Serial interfaces 1

USB interfaces and

external USB hub

Yes

Network 2x 100 MBit

Table 4-3: Machine/Vision computer hardware SIPLACE X-series

Name SIMATIC Box PC 627B

CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz

RAM 1 GB

Harddisk Yes

External DVD drive pluggable via USB

Internal DVD drive No

Serial interfaces 1

USB interfaces and

external USB hub

Yes

Network 2x 100 MBit

Table 4-4: Machine/Vision computer hardware SIPLACE X-series

4.2.1.1 Machine/Vision computer with 3D coplan sensor

The coplanarity module with the 3D coplan sensor (type 37) can be optionally installed in the

SIPLACE X2, X3, X4 and SX1/SX2 placement machines (item no. 00119919-xx for X-series, item

no. 00519919-xx for SX-series).

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

4.2.2 Machine/Vision computer (in one-computer operation)

Name SIMATIC Box PC 627B

CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz

RAM 1 GB (SX1/2 / DX1/2) / 2 GB (DX4)

Harddisk Yes

External DVD drive Yes

Internal DVD drive No

Serial interfaces 1

USB interfaces and

external USB hub

Yes

Network 2x 100 MBit

A24 Hotlink cards Yes (DX4) / No (SX1/2 / DX1/2)

Table 4-5: Machine/Vision computer hardware SIPLACE SX1/SX2 and DX-series

Name SIMATIC Box PC 827B

CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz

RAM 2 GB

Harddisk Yes

External DVD drive No

Internal DVD drive No

Serial interfaces 1

USB interfaces Yes

External USB hub No

Network 2x 100 MBit

Table 4-6: Machine/Vision computer hardware SIPLACE X-series and SX4
