Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition 4.2.2 Machine/Vision computer (i n one-computer operation) Name SIMATIC Box PC 627B CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz RAM 1 GB (SX…

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

4.2.1 Machine/Vision computer (in two-computer operation)

Name SIMATIC Box PC 627

CPU / clock frequency Pentium M 760 / 2 GHz

RAM 1 GB

Hard disk Yes

External DVD drive pluggable via USB

Serial interfaces 1

USB interfaces and

external USB hub

Yes

Network 2x 100 MBit

Table 4-3: Machine/Vision computer hardware SIPLACE X-series

Name SIMATIC Box PC 627B

CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz

RAM 1 GB

Harddisk Yes

External DVD drive pluggable via USB

Internal DVD drive No

Serial interfaces 1

USB interfaces and

external USB hub

Yes

Network 2x 100 MBit

Table 4-4: Machine/Vision computer hardware SIPLACE X-series

4.2.1.1 Machine/Vision computer with 3D coplan sensor

The coplanarity module with the 3D coplan sensor (type 37) can be optionally installed in the

SIPLACE X2, X3, X4 and SX1/SX2 placement machines (item no. 00119919-xx for X-series, item

no. 00519919-xx for SX-series).

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

4.2.2 Machine/Vision computer (in one-computer operation)

Name SIMATIC Box PC 627B

CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz

RAM 1 GB (SX1/2 / DX1/2) / 2 GB (DX4)

Harddisk Yes

External DVD drive Yes

Internal DVD drive No

Serial interfaces 1

USB interfaces and

external USB hub

Yes

Network 2x 100 MBit

A24 Hotlink cards Yes (DX4) / No (SX1/2 / DX1/2)

Table 4-5: Machine/Vision computer hardware SIPLACE SX1/SX2 and DX-series

Name SIMATIC Box PC 827B

CPU / clock frequency Core 2 Duo T7400 / 2,16 GHz

RAM 2 GB

Harddisk Yes

External DVD drive No

Internal DVD drive No

Serial interfaces 1

USB interfaces Yes

External USB hub No

Network 2x 100 MBit

Table 4-6: Machine/Vision computer hardware SIPLACE X-series and SX4

Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

4.3 Network configuration

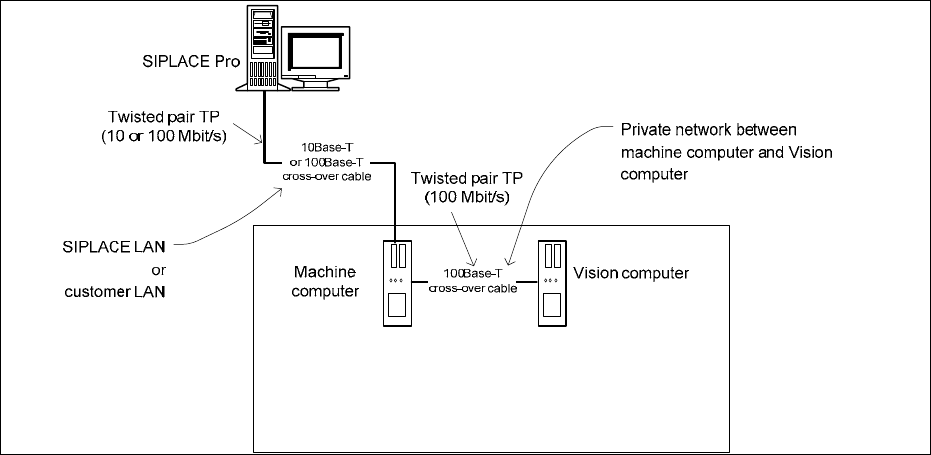

Figure 4-5: Network connections between the machine and SIPLACE Pro

In two-computer operation a separate private network (100 Mbit/s) is set up between the machine

computer and the Vision computer via a subnet mask.

Fixed IP addresses for the machine computer and the Vision computer can thus be assigned for all

SIPLACE machines. These IP addresses are not known outside the private network, for instance in

the SIPLACE LAN or customer LAN.

These IP addresses need not be further configured by the operator while the station software is

being installed.
