4.2 SIPLACE X-, SX- and DX-series hardware components
The following two diagrams show the hardware components of the computer system for the
SIPLACE X2, X3, X4 and X4I machines in two-computer operation:
Figure 4-1: Hardware components of the computer system for the SIPLACE X-series in two-computer operation (block
diagram)
18
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition
Figure 4-2: Hardware components of the computer system for the SIPLACE X-series in two-computer operation (block
diagram)
19
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

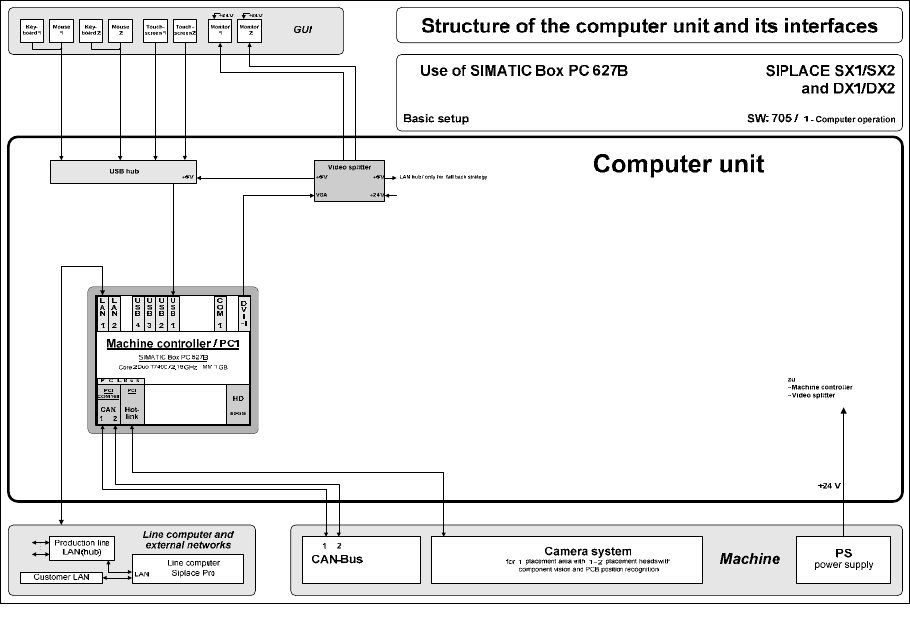

The following diagram shows the hardware components of the computer system for the SIPLACE
SX1/SX2 and DX1/DX2 machines in one-computer operation:
Figure 4-3: Hardware components of the computer system for SIPLACE SX1/SX2 and DX1/DX2 in one-computer operation
(block diagram)
For the SIPLACE DX4 machine the hardware components of the computer system in one-
computer operation are the same as displayed in Figure 4-3 with the following variations:
– 2GB RAM
– A24 Hotlink cards
