Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition
5.2.2 Changing the display settings
► Select Start Æ Settings Æ Control Panel Æ Display.
► Click the Settings tab.
► Set the Screen resolution slider to 1024 by 768 pixels.
Figure 5-2: Screen settings
► Confirm the settings by clicking OK.
27
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition
5.2.3 Calibrating the touchscreen
► Select Start Æ Settings Æ Control Panel Æ Elo to go to EloTouchscreen Properties:

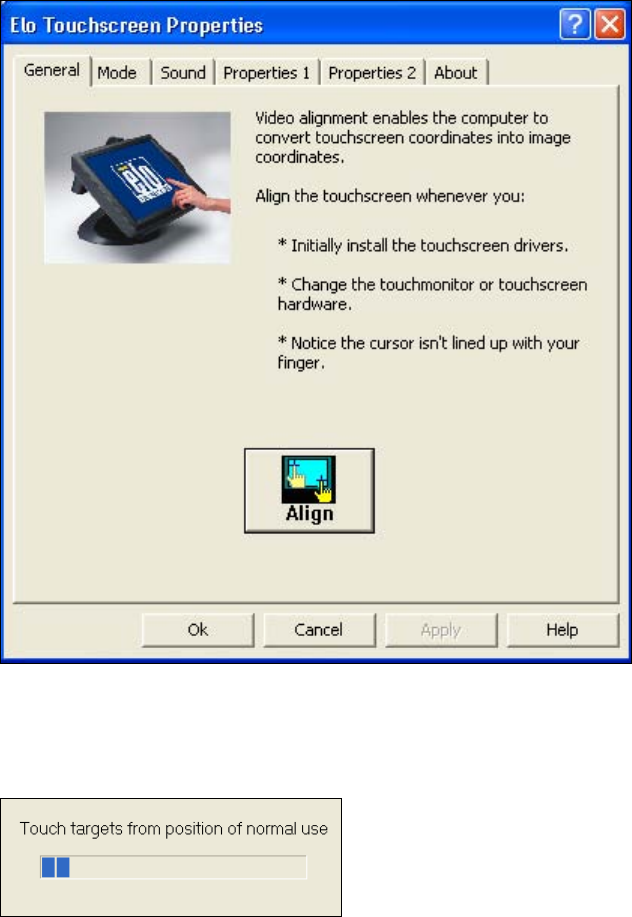

Figure 5-3: Elo Touchscreen properties
► Click the Align button.
The following message then appears:
Figure 5-4: Instruction for the screen to be calibrated
► Follow the instructions on the screen.
28
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition
5.3 Performing automatic BIOS update/settings on the machine
computer and Vision computer
The image files for the automatic BIOS update/BIOS settings and the corresponding installation
instruction (readme file) are available on the V1.0 BIOS CD that can be ordered via the service
technician or downloaded from the SIPLACE Download Center.
