Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition
Or
► Click the
COPLAN Vision computer button to install the Vision computer software with
Coplan.
Installation of the Vision computer software continues with the welcome screen.
6.1 Welcome screen

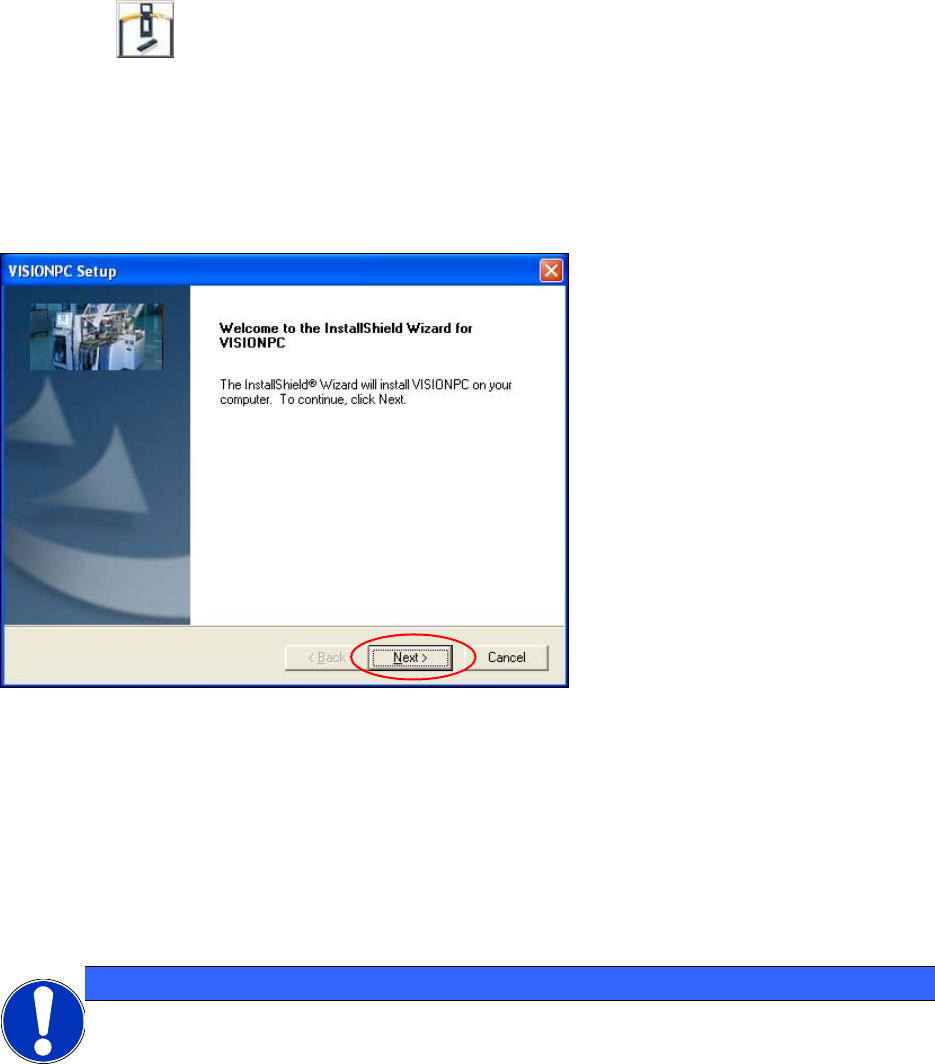

Figure 6-2: Welcome screen
► Click the Next button.
The necessary files are installed on the Vision computer.
6.2 Finalizing the installation
NOTICE
The status only lists the programs that have just been installed.
If errors occurred during installation, the status is indicated by the Error button being displayed
next to the program name instead of the Ok button.
► If you wish to read the log of the installation of any program, click the Ok (or Error) button next
to the name of the program. The Notepad is started and displays the appropriate file.
39
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

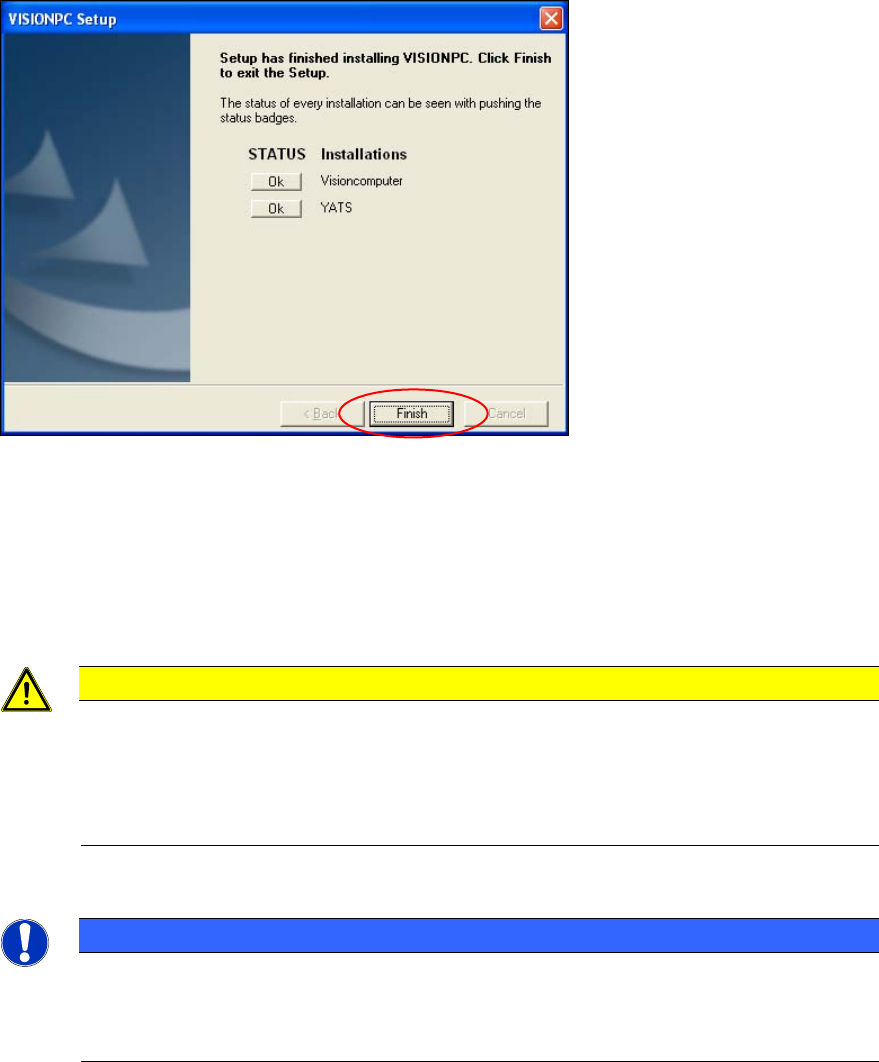

Figure 6-3: Finalizing the installation
► Click the Finish button.
► Reconnect the USB keyboard to the machine computer.
► Reconnect the USB CD drive to the machine computer.
► Switch the video multiplexer from the Vision computer to the machine computer.
CAUTION
► Wait a few seconds after you have clicked the Finish button, before you switch off
the computer / the machine!
As some installation steps are not performed until the end of the installation by the
InstallShield, the installation might otherwise be incomplete, what may cause
problems during further installations.
NOTICE
To establish the connection between the SIPLACE Vision computer software and the
SIPLACE station software after installation has been completed, the Vision computer
and the machine computer must first be shut down and the machine must then be
switched off completely.
40
Station Software 705.04 SP2 / Installation Manual Ausgabe 06/2012 Edition

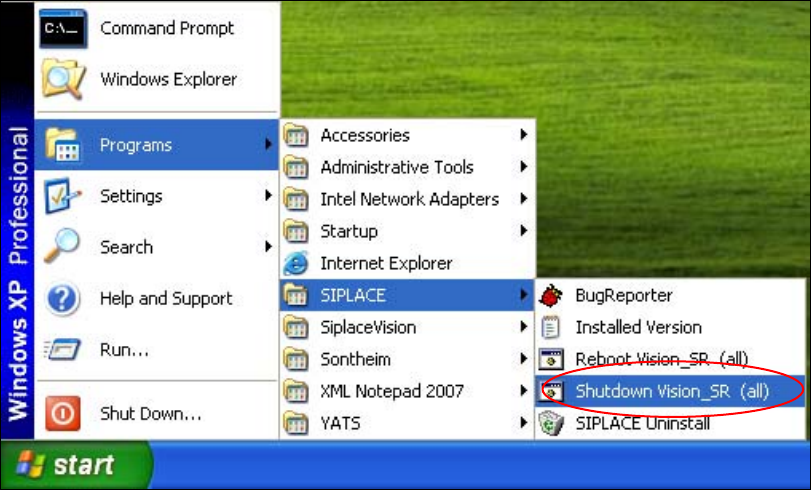

► To do this, open the Start menu and select Programs Æ SIPLACE Æ Shutdown Vision_SR
(all).
Figure 6-4: Shutting down the machine computer and Vision computer
► Switch the machine off when the computer systems have shut down.
► Switch the machine back on again. This then reboots the Vision computer and the machine
computer.
