2 Brief description 2.4 Necessary tools Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020 63 Fig.15: Nozzle changer TwinStar (short) [03062452‑xx] 1. Nozzle changer TwinSta…
2 Brief description
2.3 Scope of delivery
62 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020

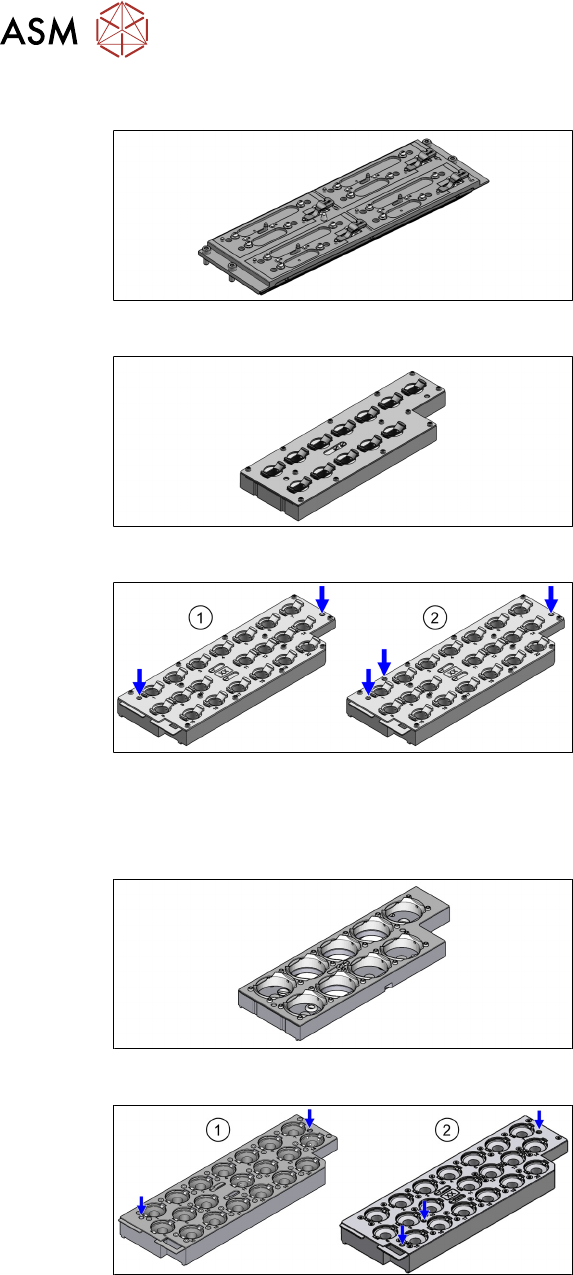

2.3.5 Nozzle changer – overview
Fig.10: Nozzle changer CPx short [03147925‑xx]
Nozzle changer basic structure (short
design) for all CPx placement heads
Fig.11: Magazine 20xx [03066107-xx]
Magazine for 12 nozzles of 20 xx series
Fig.12: 20xx magazine with two and three fiducials
Magazine for 20 nozzles of 20 xx series
●
Magazine with two fiducials
[03135469‑xx]
●
Magazine with three fiducials
[03226630‑xx]
The magazine [03226630‑xx] with three fiducials can be used on the SIPLACE SX V1/V2 from SW
713.0 and on all SIPLACE SX V3.
Fig.13: Magazine 28xx [03065782-xx]
Magazine for nozzles of 28 xx series
Fig.14: 40xx/60xx magazine – with two and three fiducials
Magazine for nozzles of 40 xx/60 xx series
1. Magazine with two fiducials
[03101503‑xx]
2. Magazine with three fiducials
[03218226‑xx]
The magazine [03218226‑xx] with three fiducials can be used on the SIPLACE SX V1/V2 from SW
713.0 and on all SIPLACE SX V3.
2 Brief description
2.4 Necessary tools
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020 63
Fig.15: Nozzle changer TwinStar (short) [03062452‑xx]
1. Nozzle changer TwinStar (short)
[03062452‑xx]
2. Magazine for 1 nozzle [03001807-xx]
3. Magazine for 2 nozzles [03005191-xx]
4. Nozzle changer in standard configuration
1x magazine for 1 nozzle
3x magazine for 2 nozzles
2.4 Necessary tools
●
Set of Allen keys
●
Set of screwdrivers
●
Set of Torx spanners
●
Needle nosed pliers
●
Hammer
2.5 Required Working Time
The complete installation will take approx. 3 hours.
The machine standstill time is approx. 2 hours.
Programming work on the SIPLACE Pro computer may also be needed.
2 Brief description
2.5 Required Working Time
