3 Installation
3.2 Fitting the nozzle changer
66 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020
3.2 Fitting the nozzle changer
3.2.1 Preparation
If present: Check the switch on the nozzle changer.
3.2.1.1 Setting the jumpers on the nozzle changer
NOTICE
Setting before installation
Due to the design, this setting must be performed before installation in the machine.
If the nozzle changer is fitted as a spare part, you will need to always insert the jumper
at pin 2-3 of the SIPLACE SX1/SX2 V3.
Overview

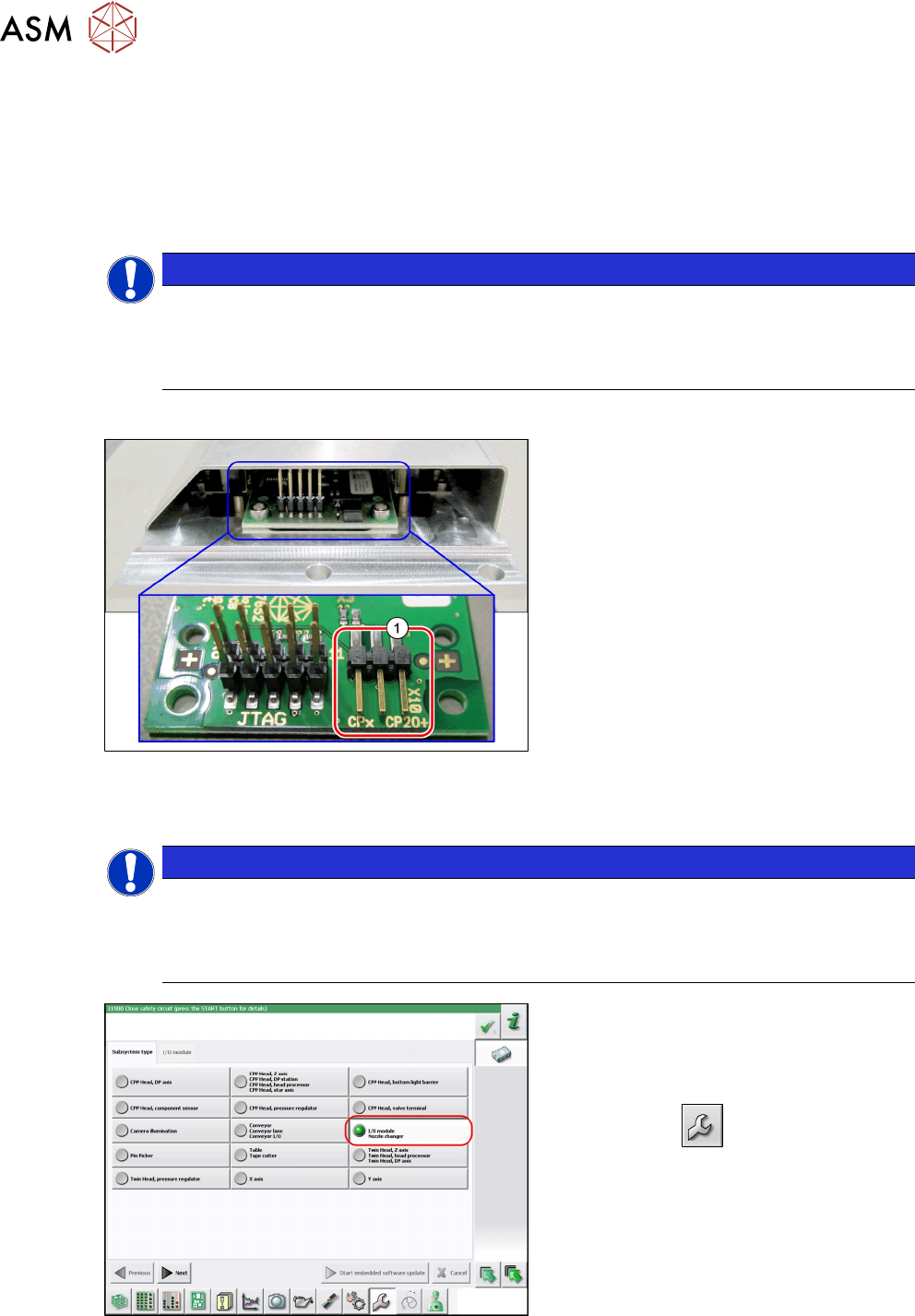

Fig.17: Jumpers on the nozzle changer
1. Jumper X10
The jumper X10 needs to be set at the fol-
lowing nozzle changers:
Nozzle changer basic structure
CPx - short assembly [03147925‑xx]
(replaces [03103649‑xx],
[03062463‑xx])
Nozzle changer basic structure
CPx – long assembly [03147324-xx]
Nozzle changer basic structure
CPx – long assembly [03103514-xx]
Preparation
NOTICE
Before installation
Due to the design, this setting must be performed before installation in the machine.
If the new nozzle changer is being fitted as a spare part in a machine with I/O module
control, you will need to reconnect the jumper to pin 1-2.
Fig.18: Checking the I/A module control
To check whether the machine has I/O mod-
ule control, proceed as follows:
Switch over to the operator level Ser-
vice.
Click on the button.
Click on the Embedded software but-
ton.
Click the Update subsystem button.
If an I/O module control is present, you
will see the entry Nozzle Changer at I/
O Module.
3 Installation
3.2 Fitting the nozzle changer
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020 67
Adjustment
Set the correct value on the jumper for your head type, software and control method.
Jumper X10
Head SW <= 706.x SW >= 707.x
I/O controller XFCU I/O controller XFCU
CPx, DLM 1-2 1-2 1-2 2-3
C&P20P --- --- --- 2-3 (factory settings)
3.2.2 Installation
Fig.19: Compressed air hose
Fig.20: Compressed air hose connected
Connect the compressed air hose(1) to
the nozzle changer.
The nozzle changer is supplied with
4.5bar air pressure.
Fig.21: Connections on the nozzle changer
Connect the connection cable to the
nozzle changer according to the follow-
ing allocation:
1. Nozzle changer 1
2. Nozzle changer 2
3. Nozzle changer 3
4. Nozzle changer 4
3 Installation
3.3 Fitting the row 2 nozzle changer
68 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020
Fig.22: Fitted nozzle changer
Insert the nozzle changer and fix into
place (four screws)(1).
Fit the magazine onto the nozzle
changer.
3.3 Fitting the row 2 nozzle changer
When fitting the holder for the second row of nozzle changers, pay attention to the correct height
setting (see 3.1.1 "Setting the height of the nozzle changer" [}65]).
Fig.23: Holder center NC row 2 / SX [03066216-xx]
Knock the locating pins (DIN 6325 -
5m5 x 20 x [00619868-xx]) into the cor-
responding holes in the holder.
Fig.24: Screws on holder
Screw the holder into place as shown
in the diagram (screws ISO 4762 -
M5x16-A2-70 [03042562-xx])(1).
