3 Installation 3.4 Final work 72 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020 Fig.33: Manual configuration Depending on your production concept, the nozzle changer con…
3 Installation
3.4 Final work
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020 71
Fig.31: Menu: Nozzle configuration
3.4.2 Settings
► Switch the placement machine on at the main switch.
3.4.2.1 SIPLACE Pro
Fig.32: Configuration nozzle changers
► Configure the nozzle changer in the setup in SIPLACE Pro.
3 Installation
3.4 Final work
72 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020

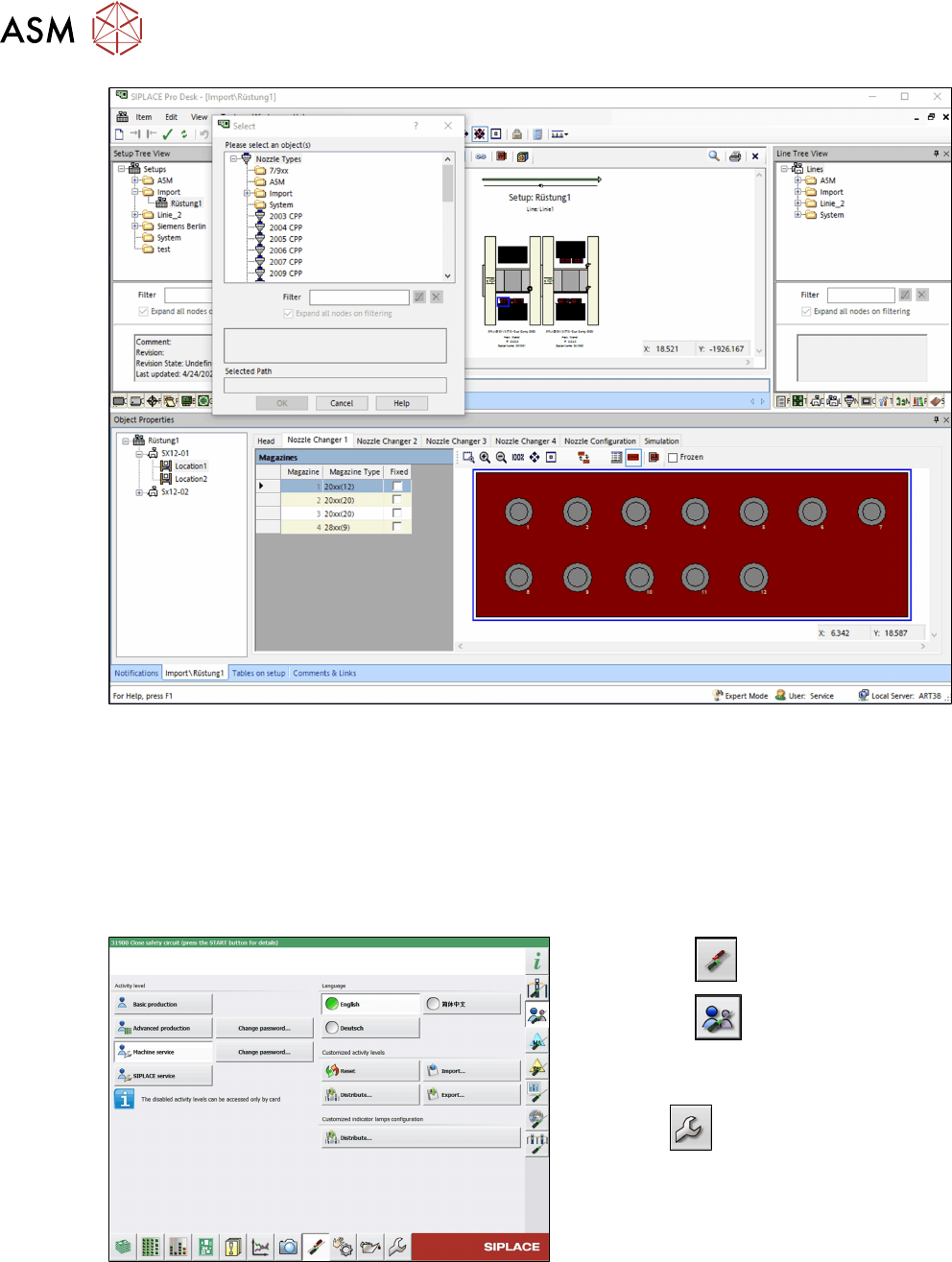

Fig.33: Manual configuration
Depending on your production concept, the nozzle changer configuration can be performed manu-
ally or calculated automatically during optimization of your placement programs.
Read also the help file in SIPLACE Pro.
3.4.2.2 Calibrating the nozzle changer
► Switch the machine on again at the main switch and start it up.
► Perform a complete reference run.
Fig.34: Select operator level
► Select the button.
► Select the button.
► Switch over to the operator level Ma-
chine service.
ð The button will be shown.
3 Installation
3.4 Final work
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Nozzle Changer Pipettenwechsler 06/2020 73
Fig.35: Service menu
► Switch over to the Service menu .
Fig.36: Automatic calibration
► Select Automatic calibration or
Single calibration.
► Select Nozzle changer calibration.
► Calibrate the magazine position, reject
position and pickup heights, one after
the other.
