Installation and Configuration Guide SIPLAC E Explorer 3 Installing SIPLACE Explorer Edition 02/2005 EN 3.2 Java 2 SDK 1.4 Installation Procedure 29 → The S tart screen will appear . 3 Fig. 3 - 4 SIPLACE Explorer setup -…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.2 Java 2 SDK 1.4 Installation Procedure Edition 02/2005 EN
28
3
Fig. 3 - 3 Installation variants: Island installation
3.2 Java 2 SDK 1.4 Installation Procedure
NOTE
You must have Windows 2000 administrator privileges to perform installation. 3
→ Place the SIPLACE Explorer CD in your CD-ROM drive.
only for 1 application
per line
- MSDE 2000
- Tomcat
- Factory Configuration
- Java 2 SDK
- RTE per Linie
Report Generation:
- MSXM
- Excel
all databases, all line
databases
SIPLACE Line Server
(existing)
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2005 EN 3.2 Java 2 SDK 1.4 Installation Procedure
29
→ The Start screen will appear.
3

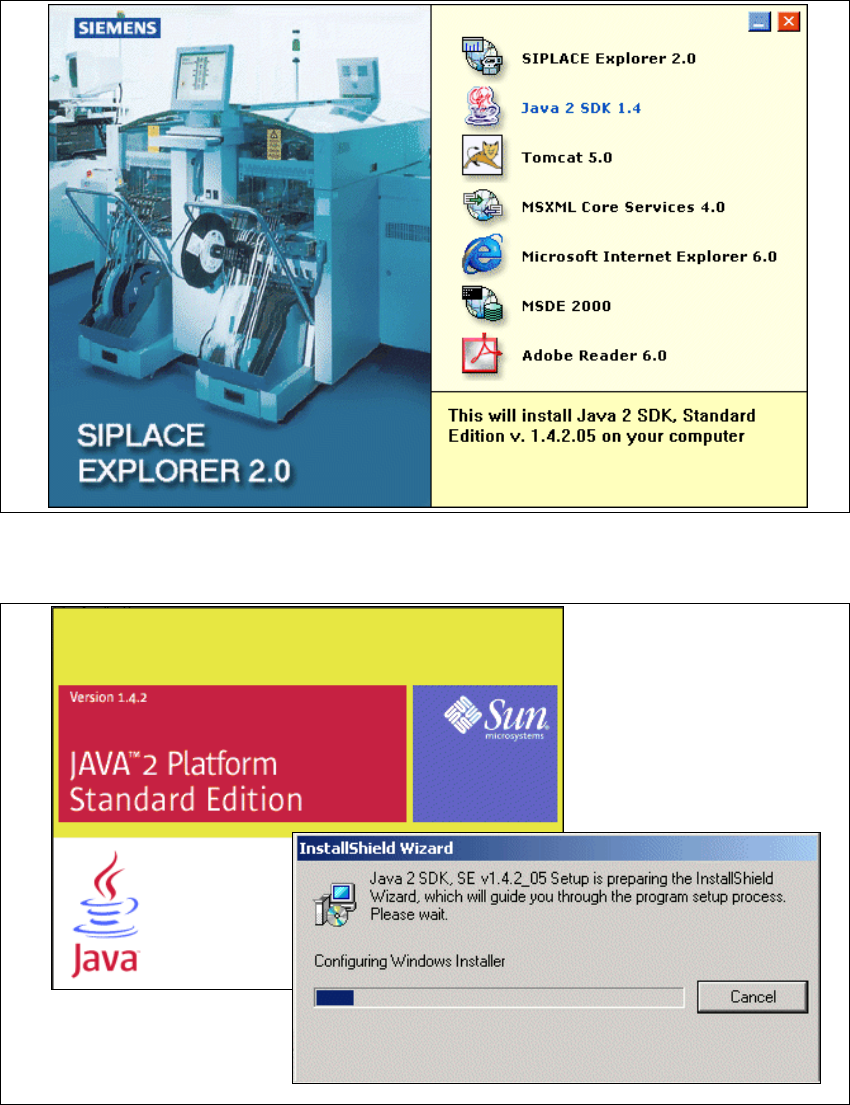

Fig. 3 - 4 SIPLACE Explorer setup - Start screen
→ Select Java 2 SDK 1.4. You will be guided through the Java 2 SDK installation procedure.
3
Fig. 3 - 5 Install shield wizard - preparing the installation
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.2 Java 2 SDK 1.4 Installation Procedure Edition 02/2005 EN
30
3

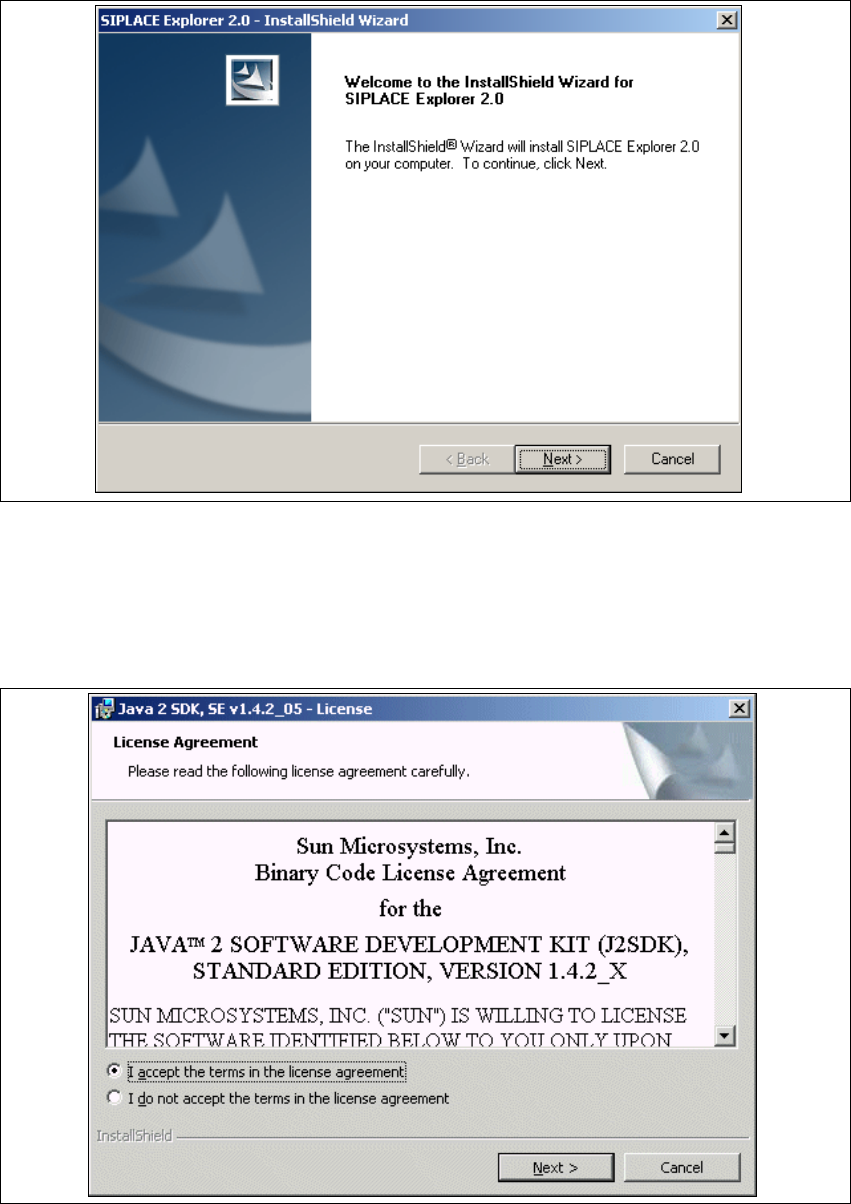

Fig. 3 - 6 Java 2 SDK setup - welcome to SIPLACE Explorer
→ Exit all other programs and then click on Next.
→ Read the license agreement. If you agree with the conditions, click I accept ..., otherwise, click
on I do not accept .... If you select I do not accept ..., the installation procedure will be
terminated.
3
Fig. 3 - 7 Java 2 SDK setup - license agreement
