Installation and Configuration Guide SIPLAC E Explorer 3 Installing SIPLACE Explorer Edition 02/2005 EN 3.6 Tomcat Configuration 57 3 Fig. 3 - 45 Windows firewall - exceptions → In the T omcat installation path, click on…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.6 Tomcat Configuration Edition 02/2005 EN
56
→ The Add a Program dialog box will open:
3

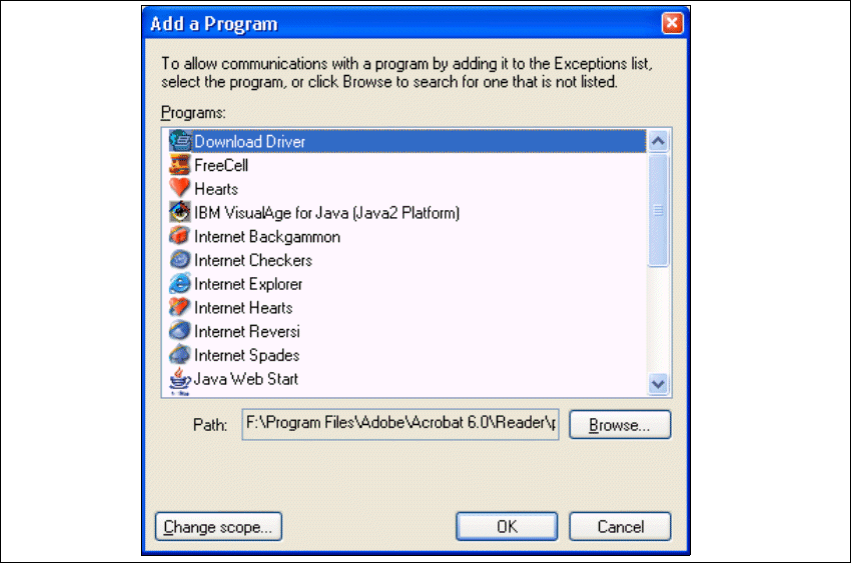

Fig. 3 - 44 Add a program
→ Specify the path in which the Tomcat.exe file is stored, by using the Browse button.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2005 EN 3.6 Tomcat Configuration
57
3

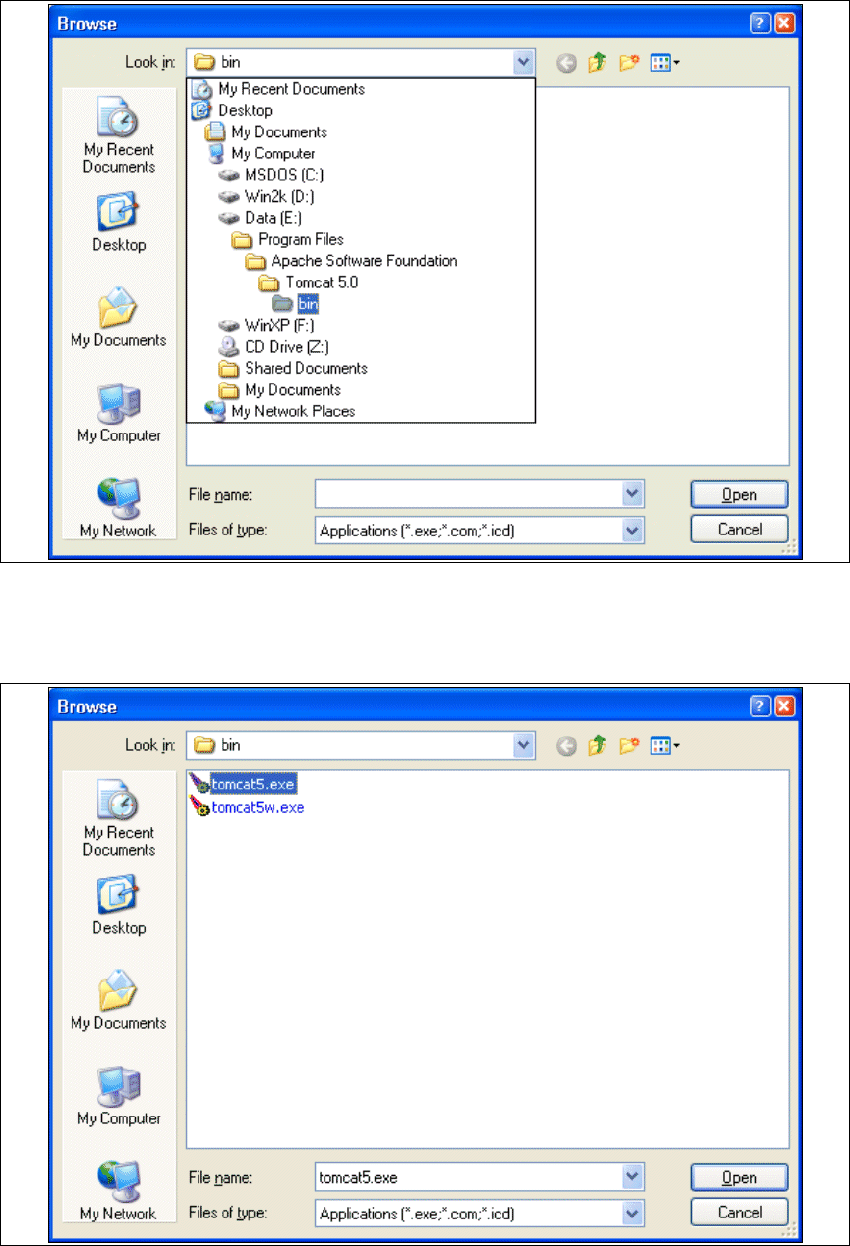

Fig. 3 - 45 Windows firewall - exceptions
→ In the Tomcat installation path, click on the ..\Tomcat 5.0\bin path and then on the Open
button.
3
Fig. 3 - 46 Windows firewall - exceptions
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.6 Tomcat Configuration Edition 02/2005 EN
58
→ Select the file tomcat5.exe and click on the Open button.
→ The Add a Program dialog box will open again:
3

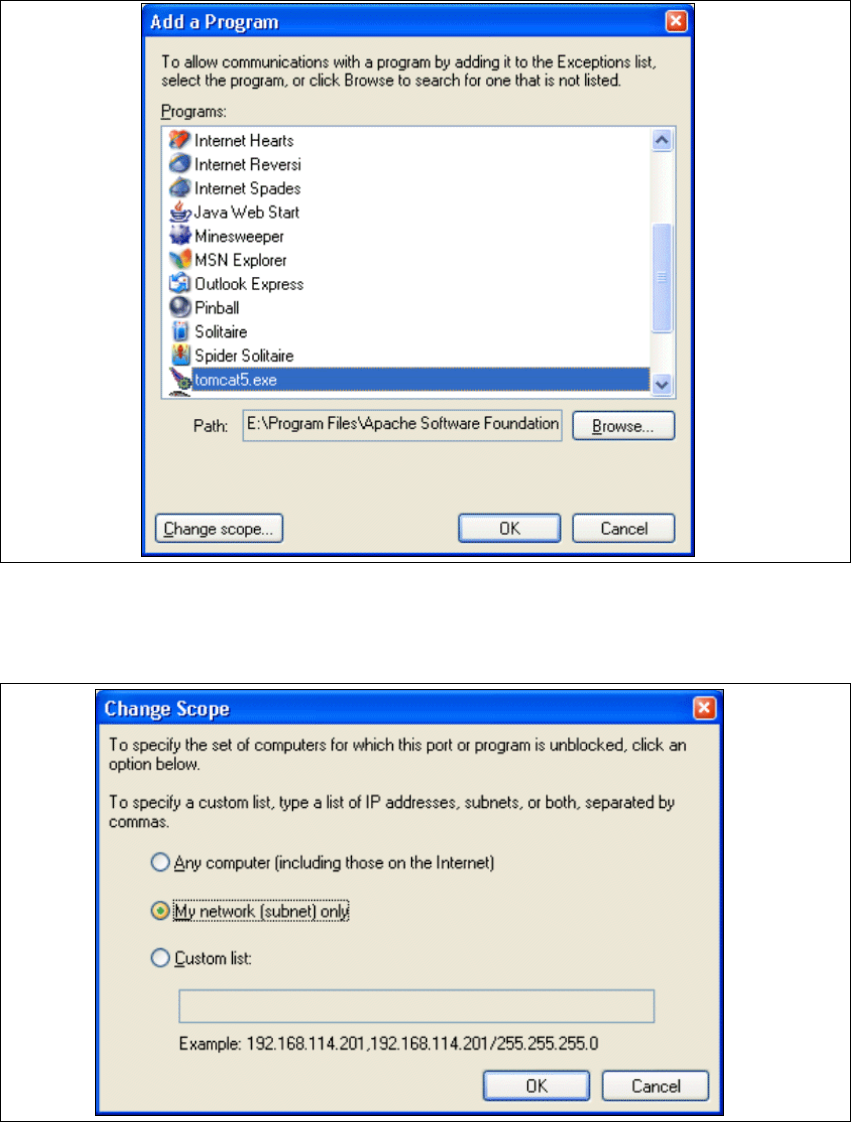

Fig. 3 - 47 Add a program
→ Select the entry tomcat5.exe from the Programs menu and click on the Change Scope
button.
3
Fig. 3 - 48 Change scope
