Installation and Configuration Guide SIPLAC E Explorer 3 Installing SIPLACE Explorer Edition 02/2005 EN 3.3 SIPLACE Explorer 2 .0 Installation 41 → Click on Finish . → SIPLACE Explorer can be started by selecting Program…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.3 SIPLACE Explorer 2.0 Installation Edition 02/2005 EN
40
→ Once you have selected the required installation option, click on the Next button to continue.
→ The following dialog box will appear.
3

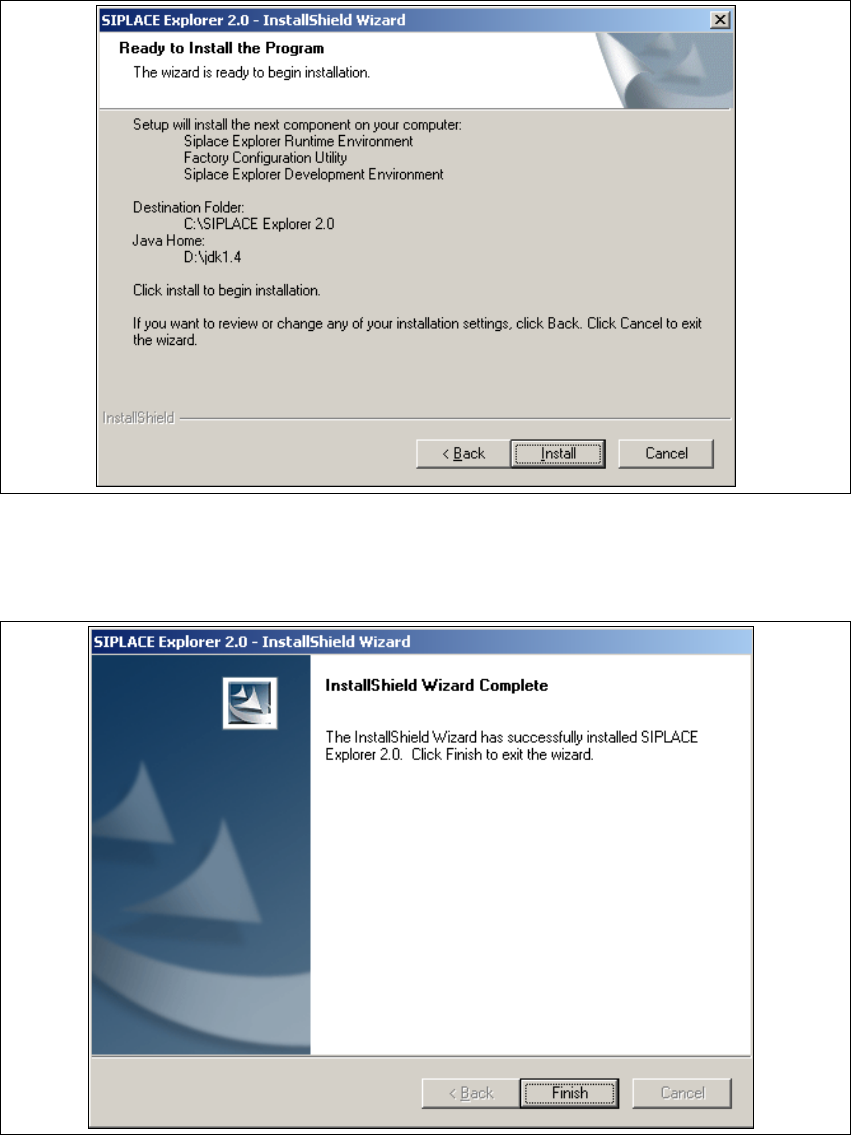

Fig. 3 - 23 SIPLACE Explorer setup - 'ready to install' dialog box
→ Click on the Install button, to begin the actual installation of SIPLACE Explorer V2.0.
→ Once the installation procedure has finished, the following dialog box will appear.
3
Fig. 3 - 24 SIPLACE Explorer setup - installation complete
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2005 EN 3.3 SIPLACE Explorer 2.0 Installation
41
→ Click on Finish.
→ SIPLACE Explorer can be started by selecting Programs → SIPLACE Explorer 2.0 from the
Windows menu and will be loaded to correspond with your selected installation options.
→ SIPLACE Explorer V.2.0 Runtime Environment:
"Runtime Environment" runs as a Windows NT service and is automatically started whenever
you reboot your computer. You will see the icon in your console. Right-click with the mouse
to open other applications and tools. The following options are available: 3
– SE Manager
– SE Security Manager
– Line Configuration
– Performance Analyzer
–Console
– Language
These additional applications and tools can also be started via the Programs → SIPLACE
Explorer 2.0 menu in Windows. 3
3

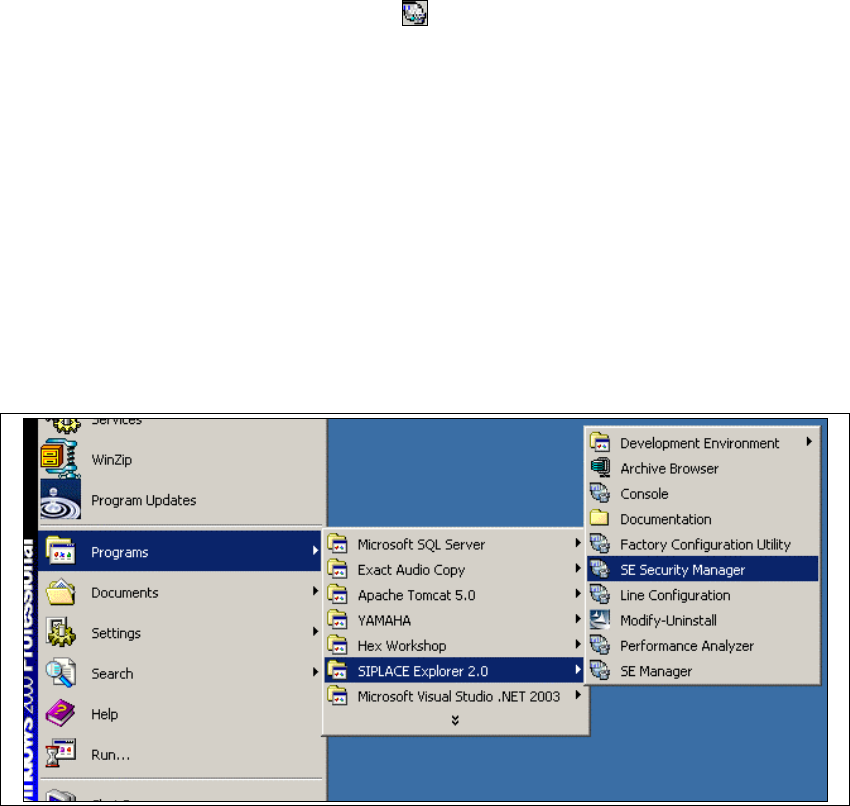

Fig. 3 - 25 RTE Windows Start menu
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.3 SIPLACE Explorer 2.0 Installation Edition 02/2005 EN
42
The following options are available: 3
– Archive Browser
–Console
– Line Configuration
– Performance Analyzer
– SE Manager
– SE Security Manager
– Modify-Uninstall
– Documentation
→ SIPLACE Explorer V.2.0 Development Environment
Start the Development Environment via the Programs → SIPLACE Explorer 2.0 →
Developer Tools menu in Windows. 3
3

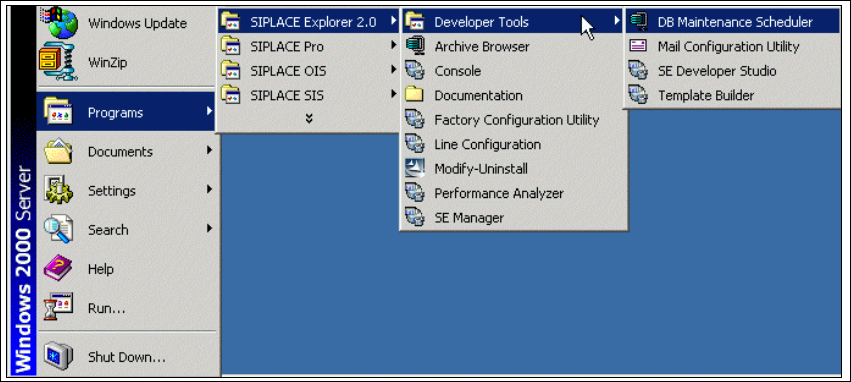

Fig. 3 - 26 DE Windows Start menu
The following applications and tools are available: 3
– DB Maintenance Scheduler
– Mail Configuration Utility
– SE Developer Studio
– Template Builder
