3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer 3.3 SIPLACE Explorer 2.0 Installation Edition 02/2005 EN 36 → T o run SIPLACE Explorer you ne ed to have JA V A 2 SDK v .1.4 installed o…
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2005 EN 3.3 SIPLACE Explorer 2.0 Installation
35
→ You will be guided through the SIPLACE Explorer installation procedure.
3

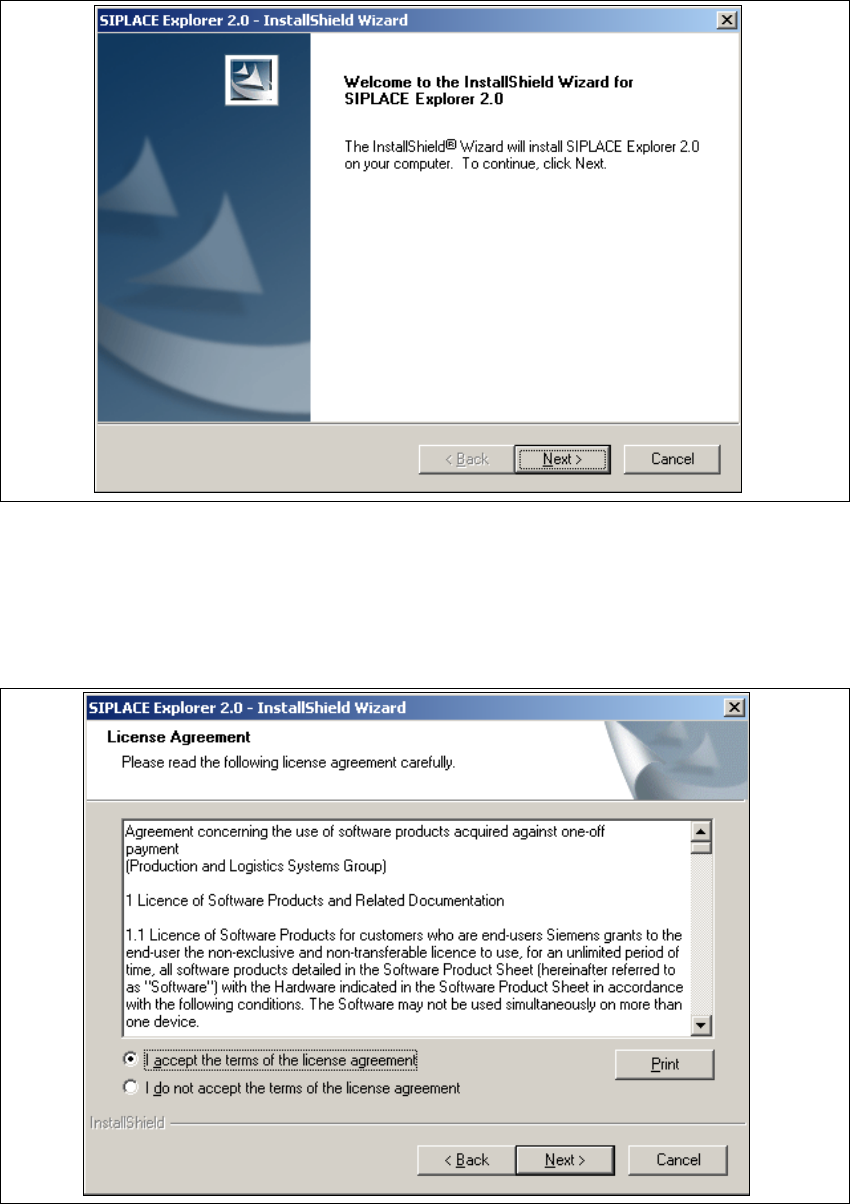

Fig. 3 - 14 SIPLACE Explorer welcome
→ Exit all other programs and then click on Next.
→ Read the license agreement. If you agree with the conditions, click I accept ..., otherwise click
on I do not accept .... If you select I do not accept ..., the installation procedure will be
terminated.
3
Fig. 3 - 15 SIPLACE Explorer setup - license agreement
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.3 SIPLACE Explorer 2.0 Installation Edition 02/2005 EN
36
→ To run SIPLACE Explorer you need to have JAVA 2 SDK v.1.4 installed on your PC. If it is
already installed on your PC, installation will begin automatically.
→ However, if the installation procedure is unable to find J2SDK v.1.4.X, the Locate J2SDK
dialog box will appear on your screen.
3

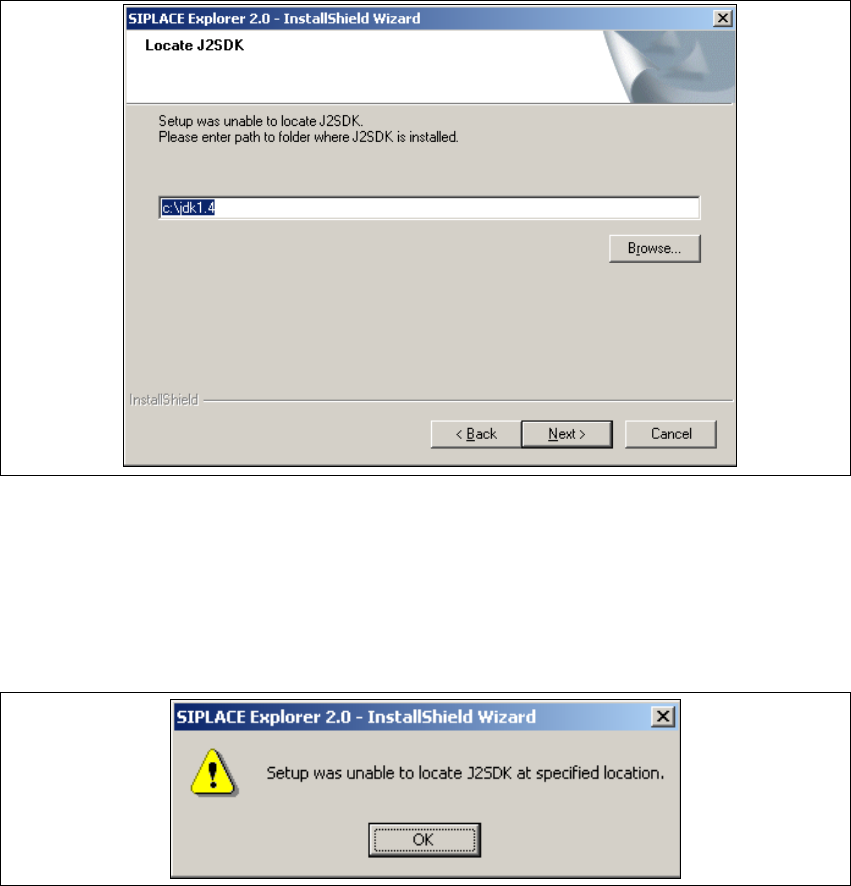

Fig. 3 - 16 SIPLACE Explorer setup - locate JAVA 2 SDK
→ In this case, you can either enter the path to the J2SDK 2 SDK v.1.4. folder directly into the text
field or click on the Browse button and use the Open File dialog box to find the JAVA 2 SDK
folder.
→ If you failed to correctly specify the path to the folder in which JAVA 2 SDK is installed, you will
see the following dialog box.
3
Fig. 3 - 17 SIPLACE Explorer setup - unable to locate J2SDK
→ Click OK to return to the previous screen. SIPLACE Explorer requires JAVA 2 SDK to be
installed prior to installation.
→ At this point, you can either try to specify the JAVA 2 SDK folder again, or click Cancel to exit
the installation of SIPLACE Explorer.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2005 EN 3.3 SIPLACE Explorer 2.0 Installation
37
→ If you chose Cancel, please install the version of JAVA 2 SDK included on the installation CD
or available free from (see page 28) Sun Microsystems at http://java.sun.com/j2se and then re-
start installation of SIPLACE Explorer.
NOTE
If you have the J2 Runtime environment (not JAVA 2 SDK) - available from Sun Microsystems
at http://java.sun.com/j2se - installed on your system, the website generated by SIPLACE
Explorer Website Builder will not function properly as it is based on JSP, which requires JAVA
2 SDK. 3
→ The installation of SIPLACE Explorer 2.0 will be continued once JAVA 2 SDK v.1.4 has been
localized. The following dialog box will appear.
3
Fig. 3 - 18 SIPLACE Explorer setup - choose destination location
→ Enter your name in the User Name field and the name of your company in the Company
Name field. Click on Next to continue.
