4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 02/2005 EN
72
4.1.1.6 Step 5 - Configure System Database
→ Now you can configure the SIPLACE Explorer System database settings:
– Database type;
– Driver name;
–Host;
–Port;
– Database name;
– Login (click on the corresponding cell button to call-up a dialog box in which you can specify
login information, i.e. user name and password).
→ For MS SQL Server database the default port '1433' will be offered, which you will not usually
need to change.
NOTE
If you have installed MSDE 2000, you must now enter the port number shown during the
installation procedure. 4
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 02/2005 EN 4.1 Standard Monitoring Application (SMA)
73
4

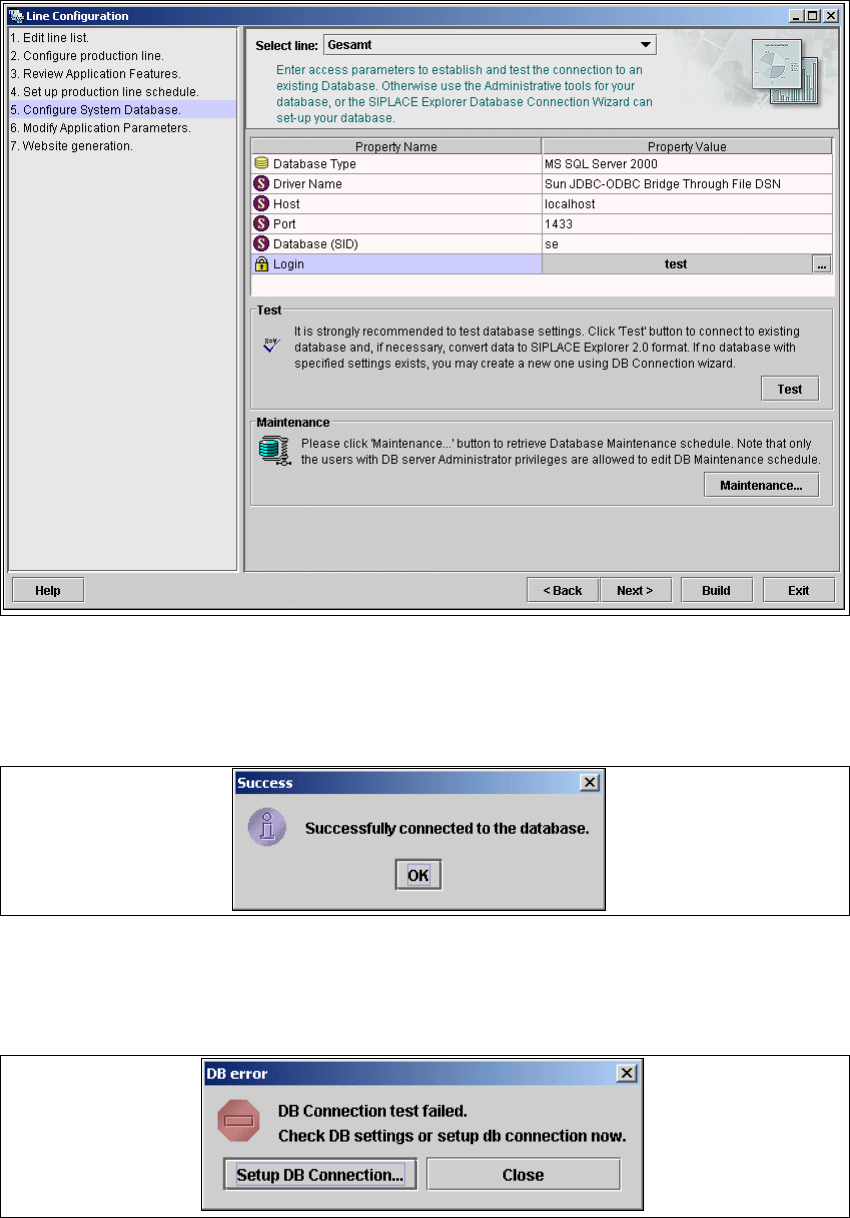

Fig. 4 - 8 Step 5: configure system database
→ After entering the database access parameters, we strongly recommend that you check the
connection to the database Click Test to check whether the connection to the database can be
established. If the connection functions properly, you will see the following information box:
4
Fig. 4 - 9 Success
→ Click OK. You can now continue with the line configuration process.
→ If the connection does not function properly, you will see the following information box:
4
Fig. 4 - 10 DB error
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 02/2005 EN
74
→ Click on the Setup DB Connection button to start the DB Connection Wizard setup
sequence and configure the SIPLACE Explorer system database.
4
Intermediate Step - Database Connection Wizard
→ Setup and configuration of the system database consists of a simple three-step procedure.
Click on Next to continue.
4
Fig. 4 - 11 Welcome screen - database connection wizard
