Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 02/2005 EN 4.1 Standard Monitoring Application (SMA)
67
→ The added lines will be shown in the Line Configuration - Edit Line List dialog box.
4

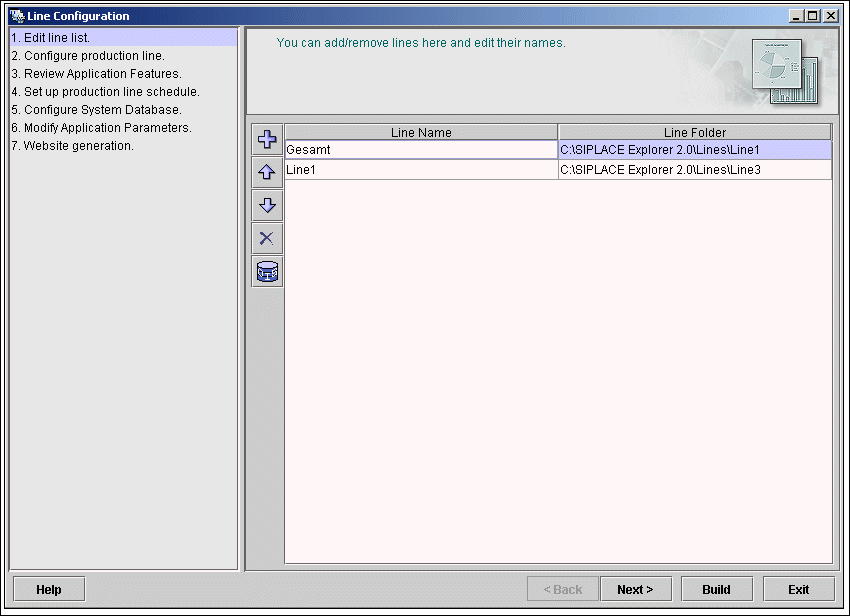

Fig. 4 - 4 Step 1: line list
→ Specify the line name and the path at which the configured monitoring application is to be
stored for this line. A *.gms file with the configuration settings for this line application will then
be saved at the specified path.
→ Click on Next to continue with the next step.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 02/2005 EN
68
4.1.1.3 Step 2 - Configure Production Line
→ This is where you can configure your production line. Select the relevant production line at
Select Line and specify the parameters for access to the SIPLACE OIS database.
→ If you have already configured another application for your production line, you can import the
line configuration from that existing application (.gms file). The equipment information will be
populated from this imported data.
→ This data will be automatically adopted during line import from the OIS.
4

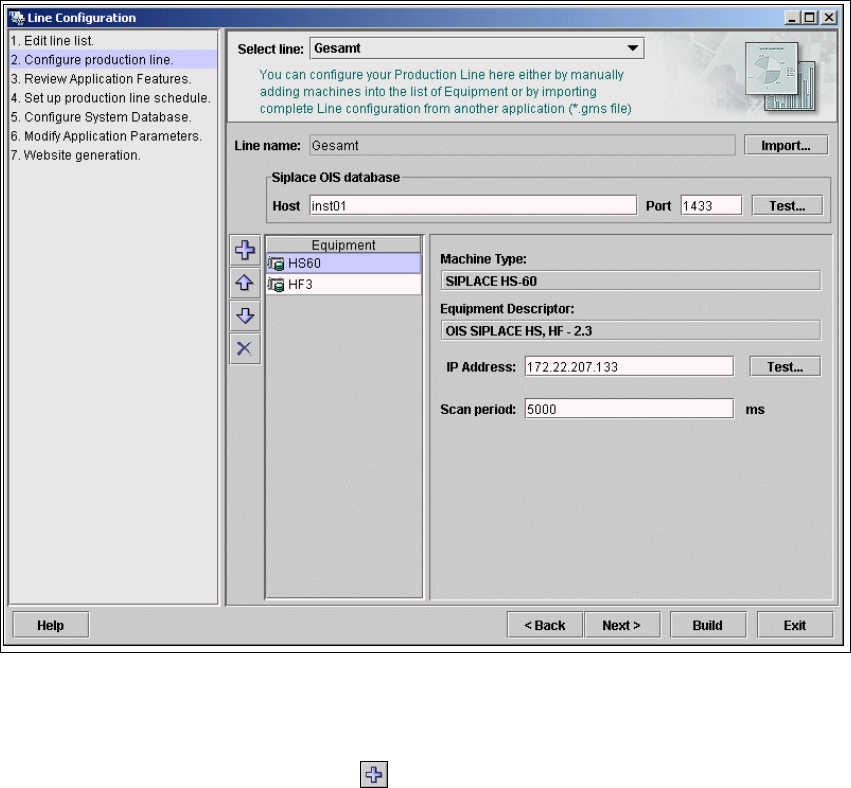

Fig. 4 - 5 Step 2 - configure production line
→ If you have not imported the line configuration from OIS, you will need to manually configure
all machines in the production line. Repeat the procedure for each machine in the line.
– Click on the Add equipment icon in the toolbar. The Select Equipment Descriptor
and Name dialog box will appear.
– Select the equipment description and edit the name for the selected machine.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 02/2005 EN 4.1 Standard Monitoring Application (SMA)
69
→ If you have not imported the line configuration from OIS, you will need to configure the machine
properties for each machine in the production line, as follows:
– Select the machine from the Equipment list on the left.
– Specify the machine properties from the window on the right.
→ For each type of equipment, you will be presented with a different box of properties. You will
need to specify the following values:
– IP address
The IP address will be automatically entered during OIS import.
– The IP address and scan period for equipment available via SIPLACE OIS database. The
scan period defines the frequency with which SIPLACE Explorer checks the data in the OIS/
SIS database in order to import new data from that database. We recommend a scan period
of 60 secs.
→ When all machines in the production line have been defined, click on the Next button to
continue with the next step.
