→ The Line Configuration dialog box will open. This is the first step of the line configuration
process.
4.1.1.2 Step 1 - Edit Line List
→ Create the relevant line (lines) here.
4
Fig. 4 - 1 Step 1: line list
→ New lines can be created via the add line icon.
→ An existing line can be imported with the OIS import function. Simply click on the OIS Import
icon .
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 02/2005 EN 4.1 Standard Monitoring Application (SMA)
65
→ The Import OIS Lines dialog box will open.
4
Fig. 4 - 2 Step 1: import OIS lines
→ Enter the OIS DB host name in the OIS-DB-Host field and the OIS DB port in the OIS-DB-Port
field.
NOTE
If you have installed MSDE 2000, you must now enter the MSDE port number shown during
the installation procedure. 4
→ Click on the Refresh icon .
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 02/2005 EN
66
→ All lines available for import from OIS will be shown.
4

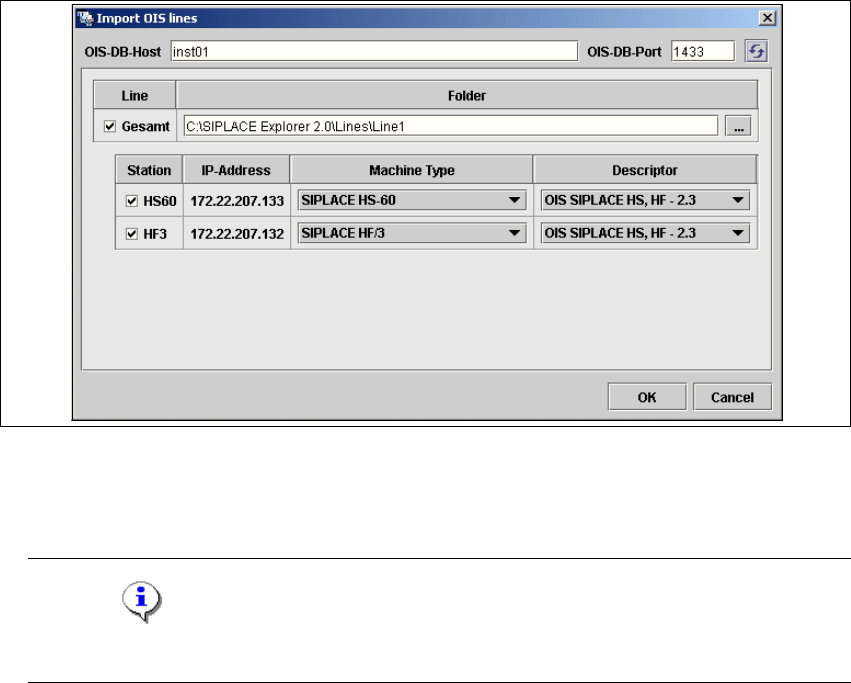

Fig. 4 - 3 Step 1: import OIS lines
→ Now select the relevant station machine type for each line, at Machine Type. The
corresponding OIS descriptor will then be automatically displayed in the Descriptor field.
NOTE
It is assumed that the machine types are known for each line. 4
→ Once you have entered all settings, confirm your choice with OK.
