10 3x8mm S-Förderer - Foil disposal unit
10.4 Assembly Foil disposal unit
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 131
Assembly of bevel gear to DC gear motor shaft
10.4
10.4 Assembly Foil disposal unit
Assembly Foil disposal unit
Assembly of gear on shaft 4 with wheels 2 and 3
▪ Ensure the correct sequence of spacer during the assembly of spur gear assembly.
Assembly of gear on shaft with wheel 1
1. Position screw on the flat side of DC gear motor shaft,
prior to tightening the screw.
10 3x8mm S-Förderer - Foil disposal unit
10.4 Assembly Foil disposal unit
132 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur
Assembly of gear on shaft with wheel 3

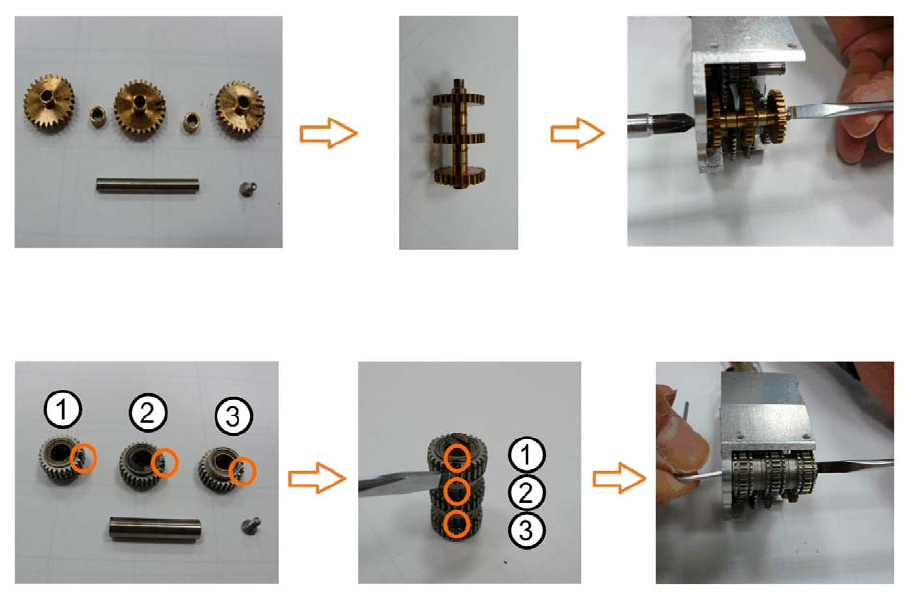

Assembly of pinions
▪ Ensure the correct sequence by means of the pinion marking.
10 3x8mm S-Förderer - Foil disposal unit
10.4 Assembly Foil disposal unit
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 133
Assembly of cover plate
1. Fastening with 3 screws
Initial testing of complete motor assembly
▪ Check manually (by hand), that the 3 gearing stages
can be rotated (forward) easily.
