4 S-Feeder Test Software

4.1 Checking of 2x8mm S-Feeder

SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 87

4 S-Feeder Test Software

S-Feeder Test Software

4.1

4.1 Checking of 2x8mm S-Feeder

Checking of 2x8mm S-Feeder

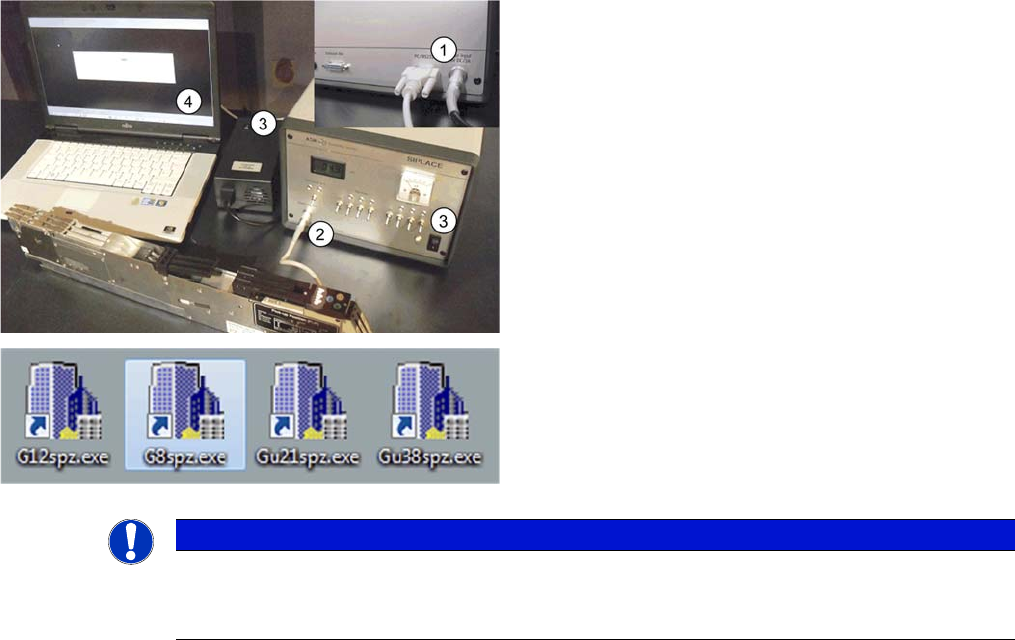

1. Connect the power supply. and RS232 Cable with Mo

tortestbox (rear) ..

2. Connect the feeder with the Motortestbox (the picture

shows a 3x8mm S-Feeder).

3. Switch off the power supply and the motor testbox .

4. Connect the RS 232 cable to the PC through the

COM1 and start the test software

NOTICE

The subsequent procedure is described by the testing software for the 2x8mm S-Feeder

For operation can be used both of the function keys on the PC keyboard, as well as the corre

sponding buttons of the user interface!

4 S-Feeder Test Software

4.1 Checking of 2x8mm S-Feeder

88 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur

software workflow (2x8mm S feeder)

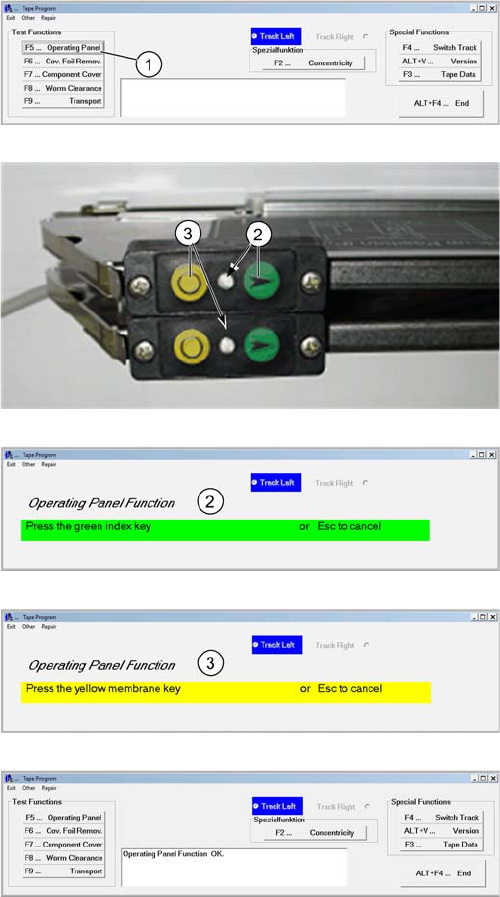

F5 Control panel

1. The left track is in the main menu after starting allways

enabled. Start the test "control panel" via the button F5

After step 1, both LED´s are off.

After step 2 flash the LED by the active track.

After step 3 flash both LED´s.

2. Press on the feeder the green touch key for the left

track . (Tape Index Feed)

3. Press on the feeder the yellow touch key for the left

track. (Foil Feed)

4. The results is shown in the comment field..

5. Switch over by pressing the key F4 on the right Track

and repeat steps 1 to 4 with the control panel on the right

Track

4 S-Feeder Test Software

4.1 Checking of 2x8mm S-Feeder

SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 89

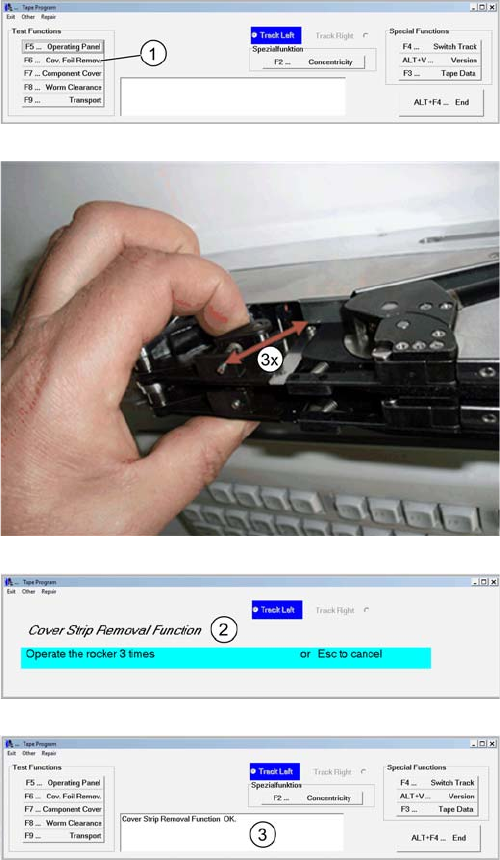

F6 Cover strip

1. Start the test "cover strip" by pressing the key F6

Move the rocker of the activated foil removal till the motor

stops. Run this movements for 3 times. The picture dis

play the rocker in the right track

2. On the feeder, move the swinging bracket of the left

track 3x manually.

3. The result is shown at the comment field.

4. Press F4 to the right Track and repeat the steps 1 to 3 ..
