Service manual vacuum check with closed nozzles
Page
85 from 136
4.2.5.3 Measurements with modifications
4.2.5.3.1 Measurement with filter disk covered (soiled).
a.) With type 1235 nozzles
b.) With type 1069 nozzles
NOM
NOM
ACT
ACT
Holding circuit > nominal.
Open value > nominal
No features
No features
Service manual vacuum check with closed nozzles
Page
86 from 136

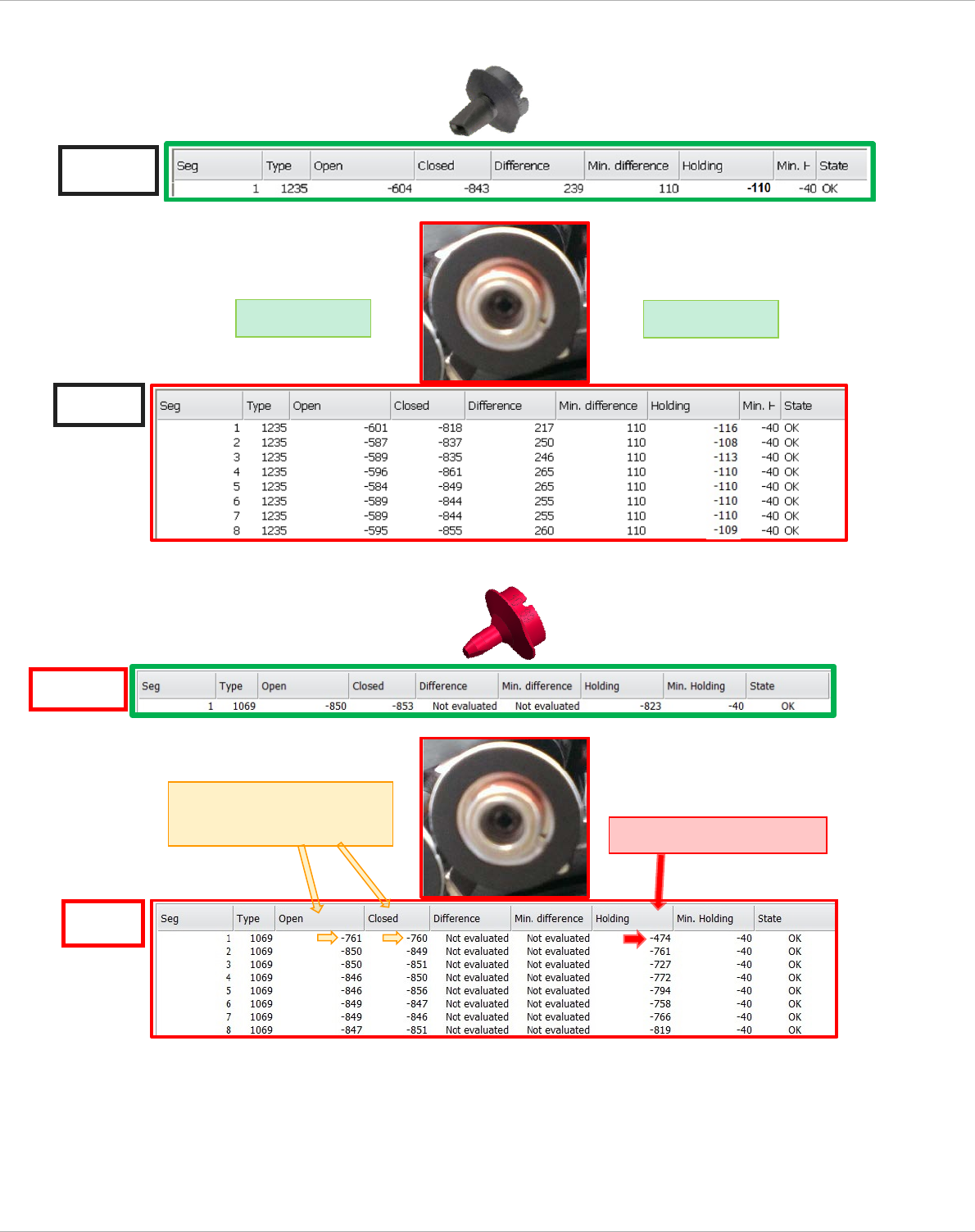

4.2.5.3.2 Measurement with half a filter disk (sealing membrane missing).
a.) With type 1235 nozzles
b.) With type 1069 nozzles
NOM
NOM
ACT
ACT
Open value < nominal
Closed value < nominal
No features
Holding circuit < nominal
No features
Service manual vacuum check with closed nozzles
Page
87 from 136
4.2.5.3.3 Measurement without filter disk.
a.) With type 1235 nozzles
b.) With type 1069 nozzles
NOM
ACT
ACT
No features
Open value < nominal
Closed value < nominal
Holding circuit < nominal
NOM
No features
