Service manual vacuum check with closed nozzles Page 91 fr om 136 4.2.5 .3.7 Hole for t he pressure air in holding circuit on segment 1 soiled. a.) W ith type 1235 no zzles b.) W ith type 1069 no zzles AC T Holding c irc…
Service manual vacuum check with closed nozzles
Page
90 from 136

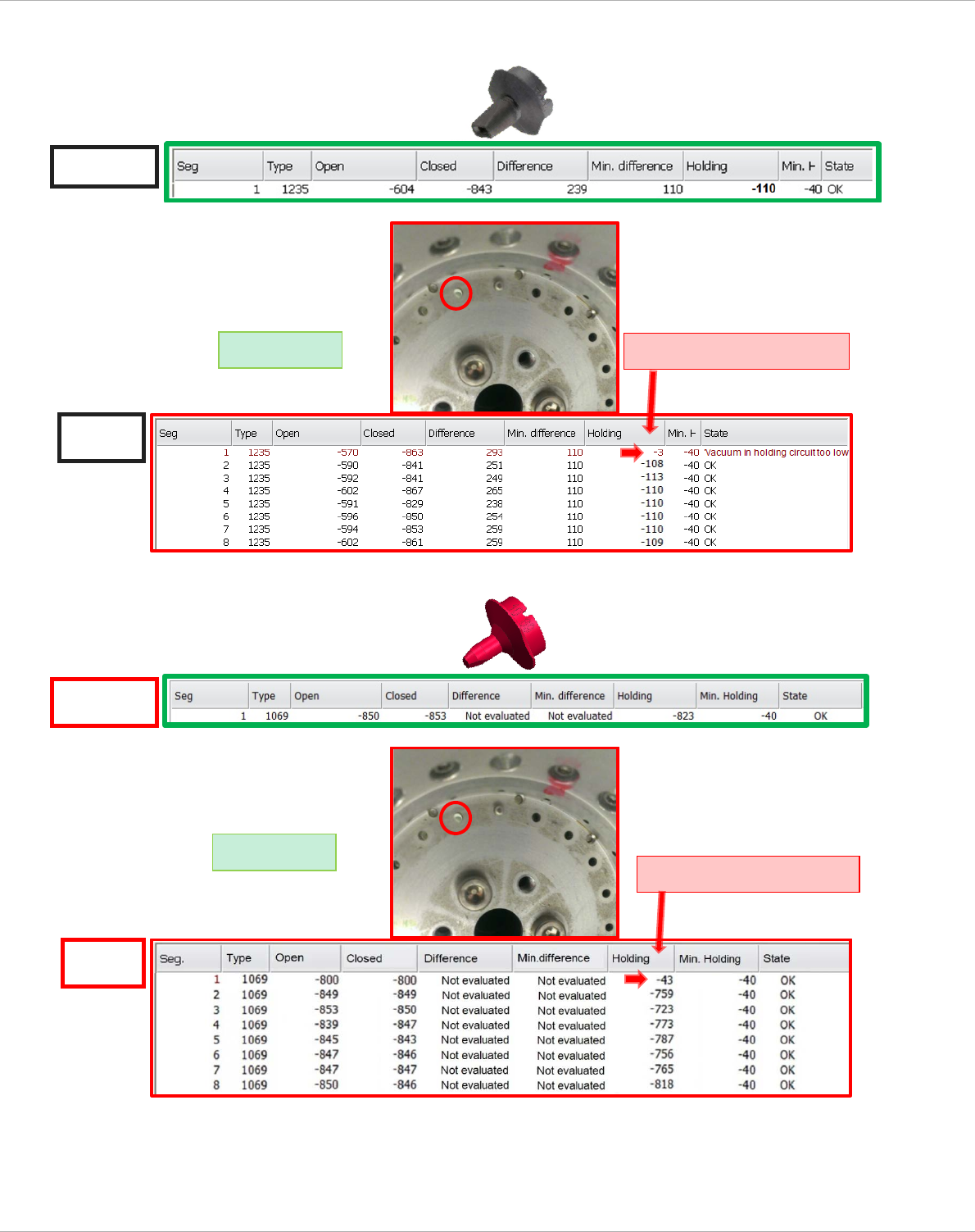

4.2.5.3.6 Hole (passage to the star) for the holding vacuum on segment 1 soiled.
a.) With type 1235 nozzles
b.) With type 1069 nozzles
NOM
ACT
ACT
Holding circuit < nominal
Holding circuit < nominal
NOM
No features
No features
Service manual vacuum check with closed nozzles
Page
91 from 136

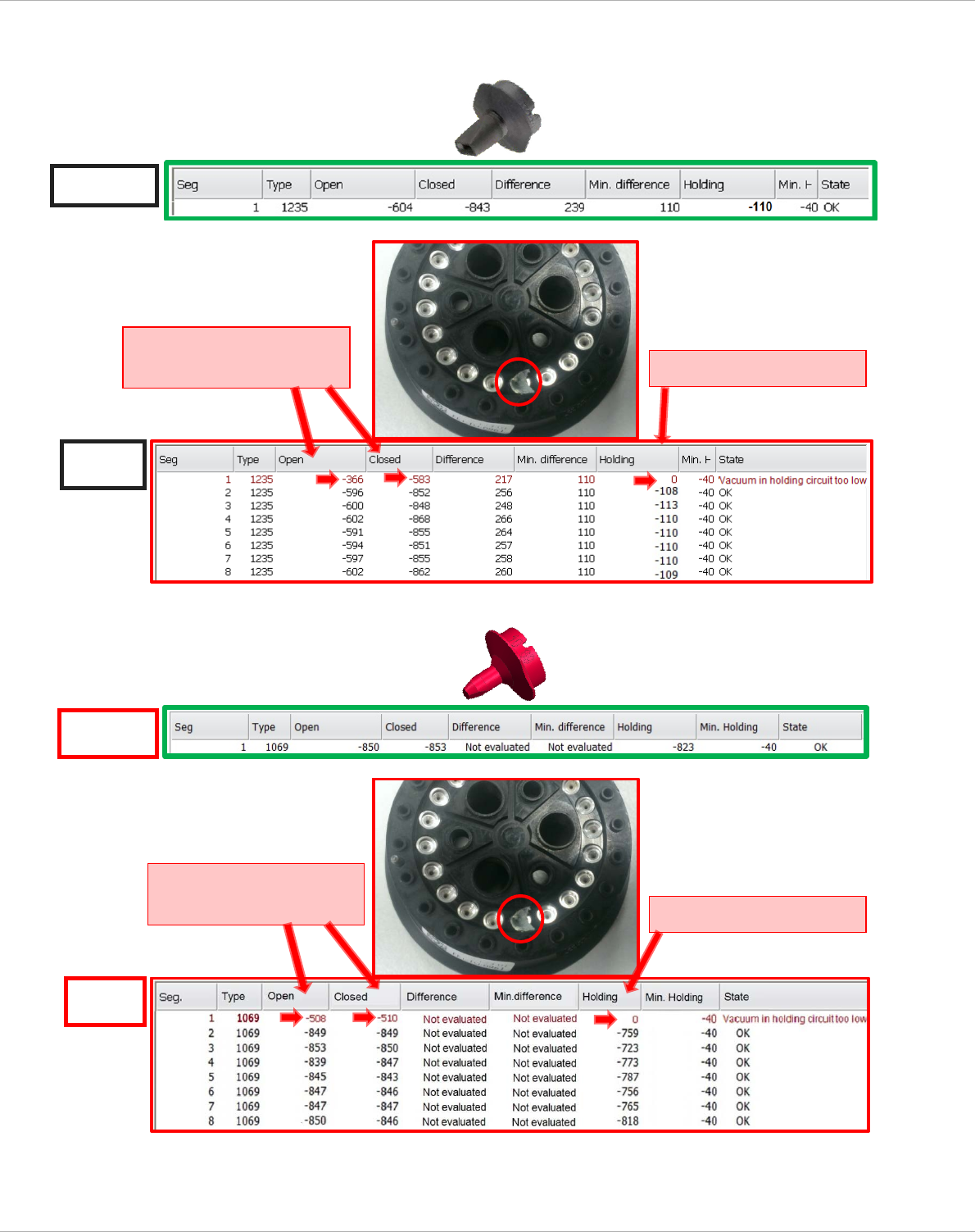

4.2.5.3.7 Hole for the pressure air in holding circuit on segment 1 soiled.
a.) With type 1235 nozzles
b.) With type 1069 nozzles
ACT
Holding circuit < nominal
Open value < nominal
Closed value < nominal
NOM
ACT
Holding circuit < nominal
Open value < nominal
Closed value < nominal
NOM
Service manual vacuum check with closed nozzles
Page
92 from 136

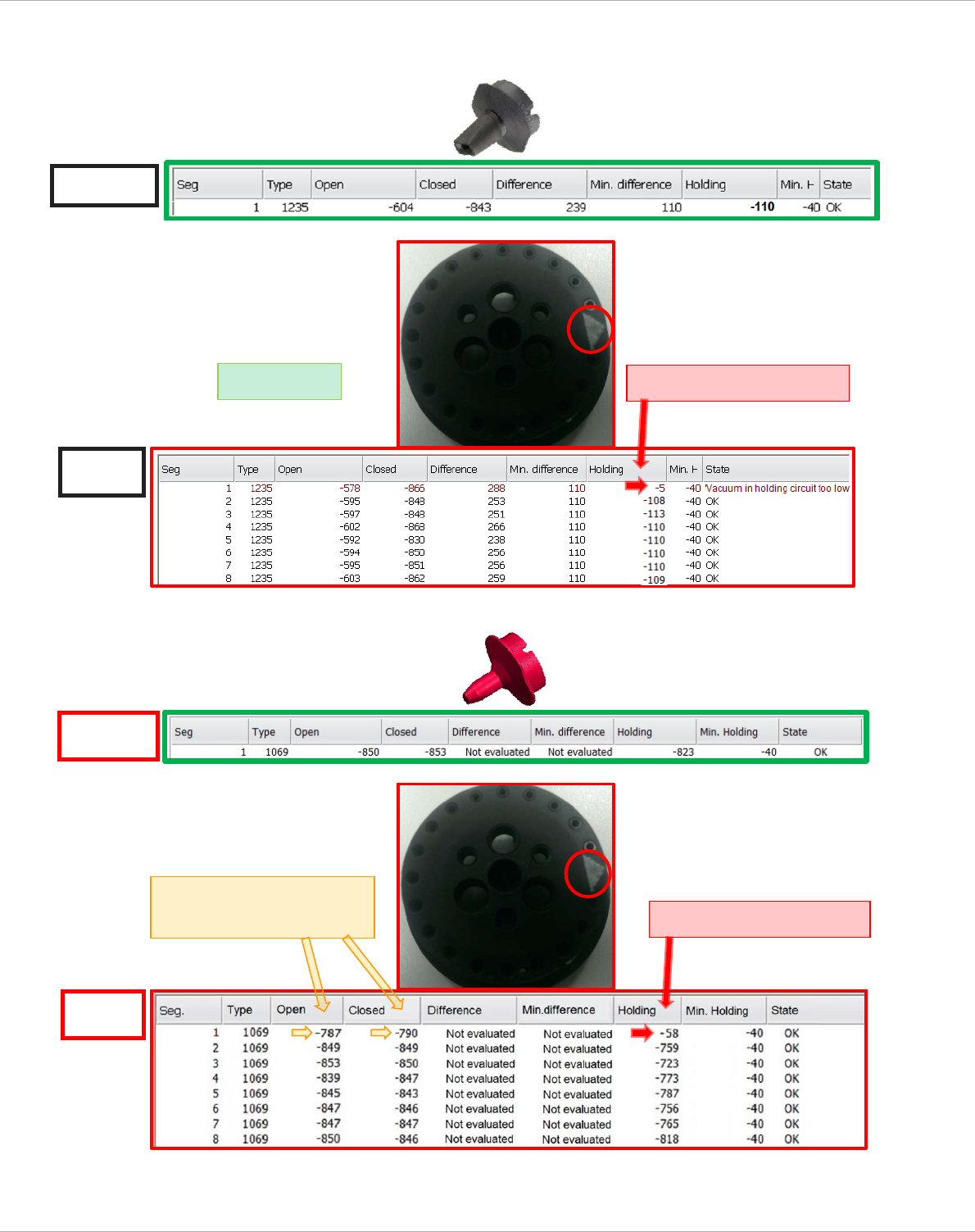

4.2.5.3.8 Hole for the vacuum in holding circuit on segment 1 soiled.
a.) With type 1235 nozzles
b.) With type 1069 nozzles
ACT
ACT
Holding circuit < nominal
Holding circuit < nominal
Open value < nominal
Closed value < nominal
NOM
NOM
No features
