Service manual vacuum check with closed nozzles Page 94 fr om 136 b.) W ith type 1069 no zzles AC T NOM in the vici nity of the loose screw s Holdin g cir cuit < nom inal Loose S cr ews in the vici nity of the loose s…

100%1 / 136
Service manual vacuum check with closed nozzles
Page
93 from 136

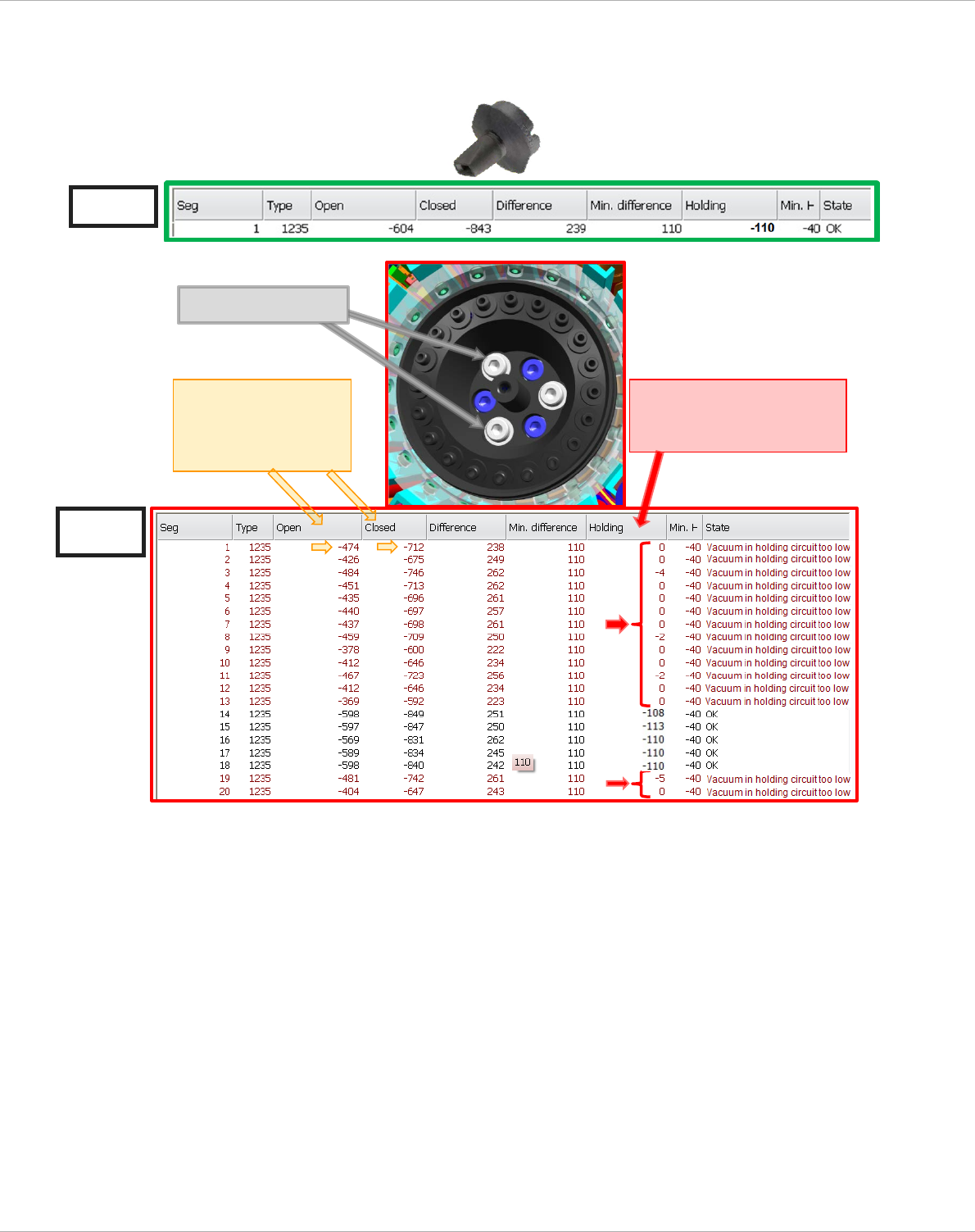

4.2.5.3.9 2 screws on the holding circuit not tightened (screws at 10 & 3; screw at 17 is
tightened).
a.) With type 1235 nozzles
ACT
in the vicinity of the loose
screws
Holding circuit < nominal
NOM
Loose Screws
in the vicinity of the
loose screws
open < nominal
closed < nominal
Service manual vacuum check with closed nozzles
Page
94 from 136
b.) With type 1069 nozzles
ACT
NOM
in the vicinity of the loose
screws
Holding circuit < nominal
Loose Screws
in the vicinity of the
loose screws
open < nominal
closed < nominal
Service manual vacuum check with closed nozzles
Page
95 from 136
4.2.6 Vacuum tests on C&P20p / C&P20m2 heads (Venturi)
In order to provide guidance when troubleshooting, a number of different modifications were
made to a CP20p head and vacuum tests were then carried out with type 4235 open nozzles
(calibration nozzles) and type 4069 closed (red) nozzles, and the results were compared.
For the sake of clarity, only the first 8 measurements that were taken are shown
here.
The modifications were always carried out on segment 1.
4.2.6.1 Measurements without any modifications (NOMINAL values)
a.) With nozzles 4235
NOMINAL
