2 Brief Description 2.1 Product Description Assembly Instructions / Montageanleitung SIPLACE X-Series S MTC2 at Location 2 MTC2 an Stellplatz 2 05/2019 53 2 Brief Description This manual describes the conversion tasks re…
1 Introduction
1.5 Abbreviations
52 Assembly Instructions / Montageanleitung SIPLACE X-Series S MTC2 at Location 2 MTC2 an Stellplatz 2 05/2019
2 Brief Description
2.1 Product Description
Assembly Instructions / Montageanleitung SIPLACE X-Series S MTC2 at Location 2 MTC2 an Stellplatz 2 05/2019 53
2 Brief Description
This manual describes the conversion tasks required for installation of an MTC2 at location 2 of X2
S / X3 S / X4 S machines.
2.1 Product Description
The MTC2 consists of two independently working towers, which allow you to configure and fully
automatically change up to 100 JEDEC waffle pack trays.
To use an MTC at location 2 of the X2 S / X3 S / X4 S, you need to install an MTC slide-in frame-
work [03009963‑xx].
2.1.1 Overview of the Modules

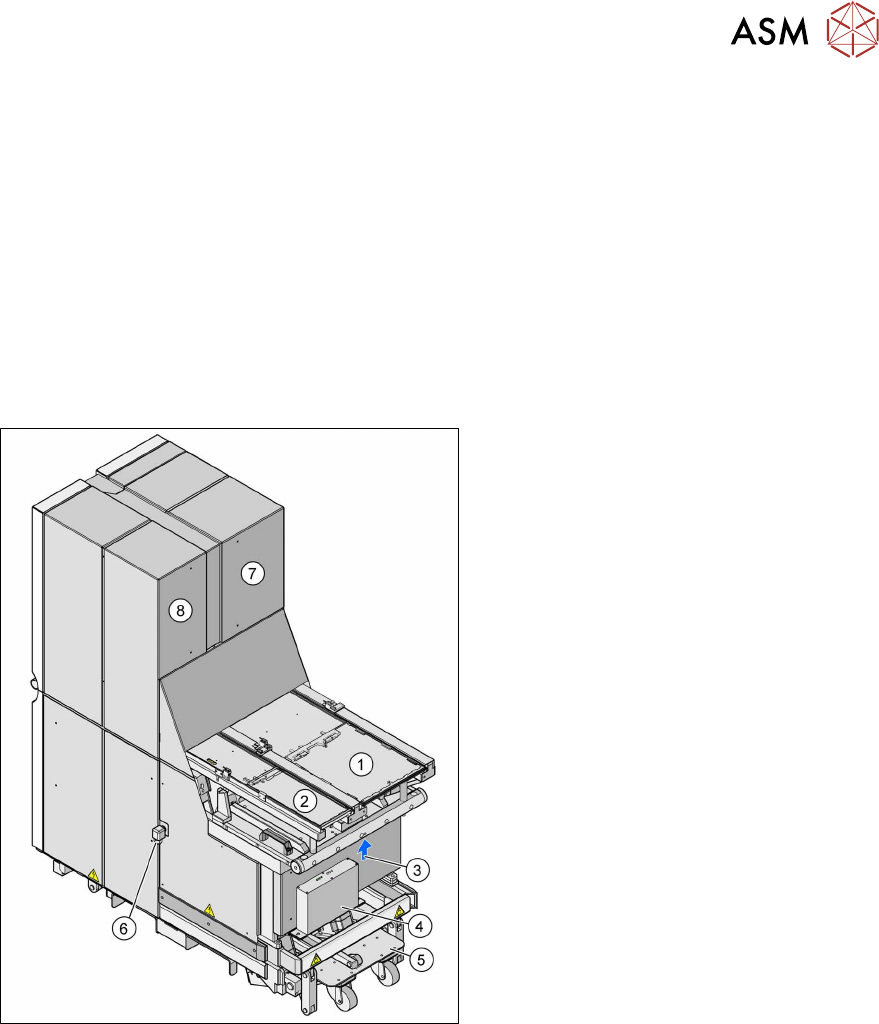

Fig.7: MTC2
1. Feed axis 1
2. Feed axis 2
3. Interface plug for docking into the
placement machine
4. Electronic control unit
5. Integral chassis
6. Cable gland for the power supply cable
7. Tower 1
8. Tower 2
Tower 1 can accommodate a maximum of
30 XL waffle pack tray carriers with 60 JE-
DEC or 30 special magazines of maximum
size.
Tower 2 can accommodate a maximum of
40 waffle pack tray carriers with 40 JEDEC
waffle pack trays.
2.2 Requirements
For X4 S machines, configurations with an MTC at location 2 are generally possible in conjunction
with a Twin. Corresponding configurations with a CPP are available as a special configuration.
For machine types X3 S and X2 S, configurations with an MTC at location 2 are generally possible
in conjunction with a Twin or a CPP head.
In addition to the MTC2, a service flap and an output extension or conveyor are fitted as a default.
Observe the following instructions for these:
●
Assembly instructions "SIPLACE X‑SeriesS service flap" [DE+EN: 00197396‑xx]
●
Assembly instructions "SIPLACE X‑SeriesS Input/output conveyor extension and hand
guard" [DE+EN: 00197089‑xx]
2 Brief Description
2.3 Restrictions
54 Assembly Instructions / Montageanleitung SIPLACE X-Series S MTC2 at Location 2 MTC2 an Stellplatz 2 05/2019
2.3 Restrictions
The MTC2 can not be used in machines of type SIPLACE X4i S.
CAUTION
Conversion as required for specific placement head
The MTC may need to be converted, depending on the head fitted in the machine
(SIPLACE CPP or TH)!
See also the installation instructions in the "SIPLACE X-Series user manual (SIPLACE X-Series S,
from SC 706.01 SP1)" [00197003-xx]
2.4 Scope of Delivery
You need the following parts:
Quantity Item no. Designation
1 03011837-xx Matrix Tray Changer 2 (MTC2)
This includes, for example, the following:
1 03009963-xx Slide-in framework
1 03009966- xx Parts provided (see below)
1 03099777- xx Conversion kit "SIPLACE X4 S MTC parts for protection config" (see
below)
The following parts will also be needed, depending on the configuration:
Quantity Item no. Designation
1 03010476-xx Adjustment USA/Japan network
1 03091029-xx Adapter cable set MTC SX3a/SX4a Vario
Parts for SIPLACE Twin (see below)
Parts for nozzle changer (see below)
03077244- xx Retrofit kit "MTC2-CPP" (see below)
00519975‑xx Service flap SIPLACE X-Series S
Output extension
See the assembly instructions "SIPLACE X‑SeriesS Input/output
conveyor extension and hand guard" [DE+EN: 00197089‑xx]
