Station Software 709.1 / Installation Manual Ausgabe 05/2016 Edition

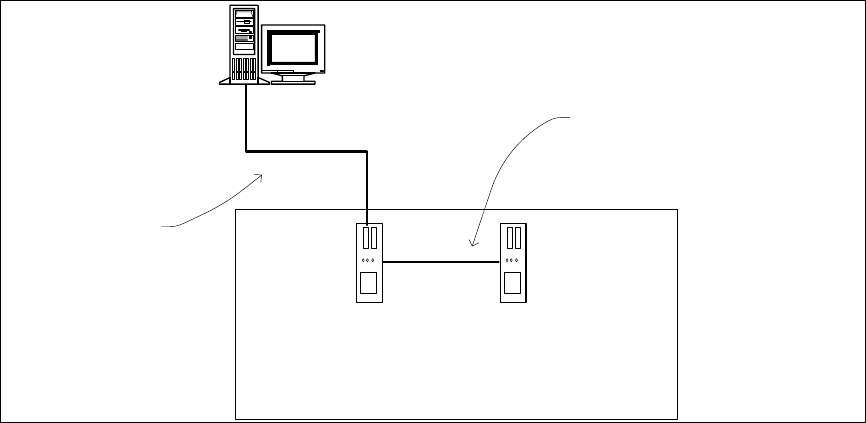

4.3 Network Configuration

Station

computer

Coplan computer /

feeder computer

Private network between

station computer and Coplan

computer / feeder computer

SIPLACE LAN

SIPLACE Pro

Figure 4-1: Network connections between the machine and SIPLACE Pro

In two-computer operation a separate private network is set up between the station computer and

the Coplan computer or feeder computer via a subnet mask.

Fixed IP addresses for the station computer, Coplan computer or feeder computer can thus be

assigned for all SIPLACE machines. These IP addresses are not known outside the private

network, for instance in the SIPLACE LAN.

These IP addresses need not be further configured by the operator while the station software is

being installed.

Please also refer to chapter 6.

Station Software 709.1 / Installation Manual Ausgabe 05/2016 Edition

5 Installing the Station Computer

5.1 Installation Sequence

Back up the machine data

BIOS update on the station computer

Perform BIOS update

Install Windows Emb. Standard 7 operating

system for the station computer

(including selection of the computer

configuration and installation of the touch

screen)

Install SIPLACE software

(station software incl. additional programs)

BIOS settings on the station computer

Perform BIOS settings

Finish the installation

See section 5.2.

See separate Installation Manual for details on

installing the Windows 7 operating system,

item no. [00197737-xx].

For details on calibrating the touchscreen, see

section 5.3.2.

See section 5.4.

See section 5.4.6.

Figure 5-1: Installation sequence

Station Software 709.1 / Installation Manual Ausgabe 05/2016 Edition

5.2 Performing BIOS Update/Settings on the Station / Coplan / Feeder

Computers

The image files for the BIOS update/BIOS settings and the corresponding installation instruction

(readme file) are available on the V1.0 BIOS CD that can be ordered via the service technician or

downloaded from the SIPLACE Software Download Center. For more information, see separate

Installation Manual for details on installing the Windows 7 system, item no. [00197737-xx].

5.3 Preparations for Installing the Software

5.3.1 Requirements

Requirements for installing the SIPLACE software, Coplan computer software or feeder computer

software:

– The Windows Embedded Standard 7 SP1 (32-bit or 64-bit) must be installed on the station

computer and in two-computer operation on the Coplan computer or feeder computer (see

"Installation Manual Operating System Windows Embedded Standard 7", item number

[00197737-xx]).

– The station computer has to be equipped with at least 2 GB memory with WES 7, 32-bit and 4

GB memory with WES7, 64-bit respectively. If necessary, station computers in the field have to

be exchanged or upgraded with a memory extension. Please refer to the Technical Information

TI2014-09E04.

– Also observe the requirements in section 6.2.1 that have to be met when installing the Coplan

computer software or feeder computer software via remote connection.

Under Windows Embedded Standard 7 the computer configuration has to be selected and the

touch screen calibrated. You must be logged in as Administrator in order to be able to carry out

this work.
