6 Installing Coplan Computer Software or Feeder
Computer Software
If the 3D coplanarity module or the SIPLACE BulkFeeder X is used, an additional SIPLACE Vision
computer named Coplan computer and feeder computer respectively is required. For simplification,
these computers are called "Vision computer" in this chapter if the current description is valid for
both variants.
NOTICE
The 3D coplanarity module and SIPLACE BulkFeeder X options cannot run
simultaneously. I.e., a Vision computer can either be set up as Coplan computer or as
feeder computer.
Detailed information on the 3D coplanarity module can be found in the corresponding Assembly
Instructions, item numbers [00195344-xx] (for X-series), [00196842-xx] (for SX1/SX2) und
[00197395-xx] (for X-series S).
Detailed information on the SIPLACE BulkFeeder X can be found in the SIPLACE BulkFeeder X
Operating Manual, item no. [00198045-xx].
The respective software can either be installed directly on the Vision computer or via a remote
connection from the station computer.
Both installation options are described in the following.
6.1 Installing the Software Directly on the Vision Computer
CAUTION
The station software must not run on the station computer during installation of the
respective software on the Vision computer!
NOTICE
The installation requires approx. 20 minutes.
► Log in to the Vision computer under the ASM_Admin user account.
► Insert the installation DVD in the drive.
► Open the Windows Explorer and start setup.exe under drive E: by double-clicking it.
Station Software 709.1 / Installation Manual Ausgabe 05/2016 Edition
35
6.1.1 Selecting the Additional Vision Computer
The SIPLACE Choice Center dialog box opens.
Figure 6-1: "SIPLACE Choice Center" dialog box
► Click the Additional VISIONPC button.
The following dialog box opens:

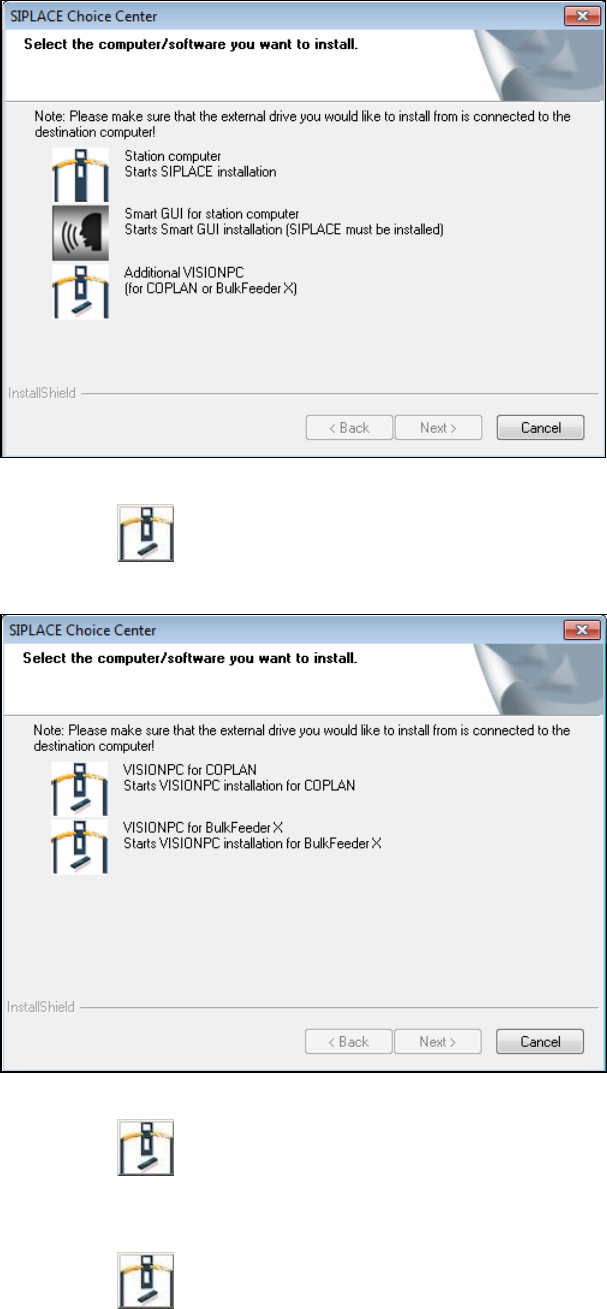

Figure 6-2: Selecting computer / software
► Click the VISIONPC for COPLAN button to install the Coplan computer software.
Or:
► Click the VISIONPC for BulkFeeder X button to install the feeder computer software.
Station Software 709.1 / Installation Manual Ausgabe 05/2016 Edition
36
NOTICE
The Coplan computer software and feeder computer software cannot be combined with
each other!
The installation of the respective software continues with the welcome screen.
6.1.2 Welcome

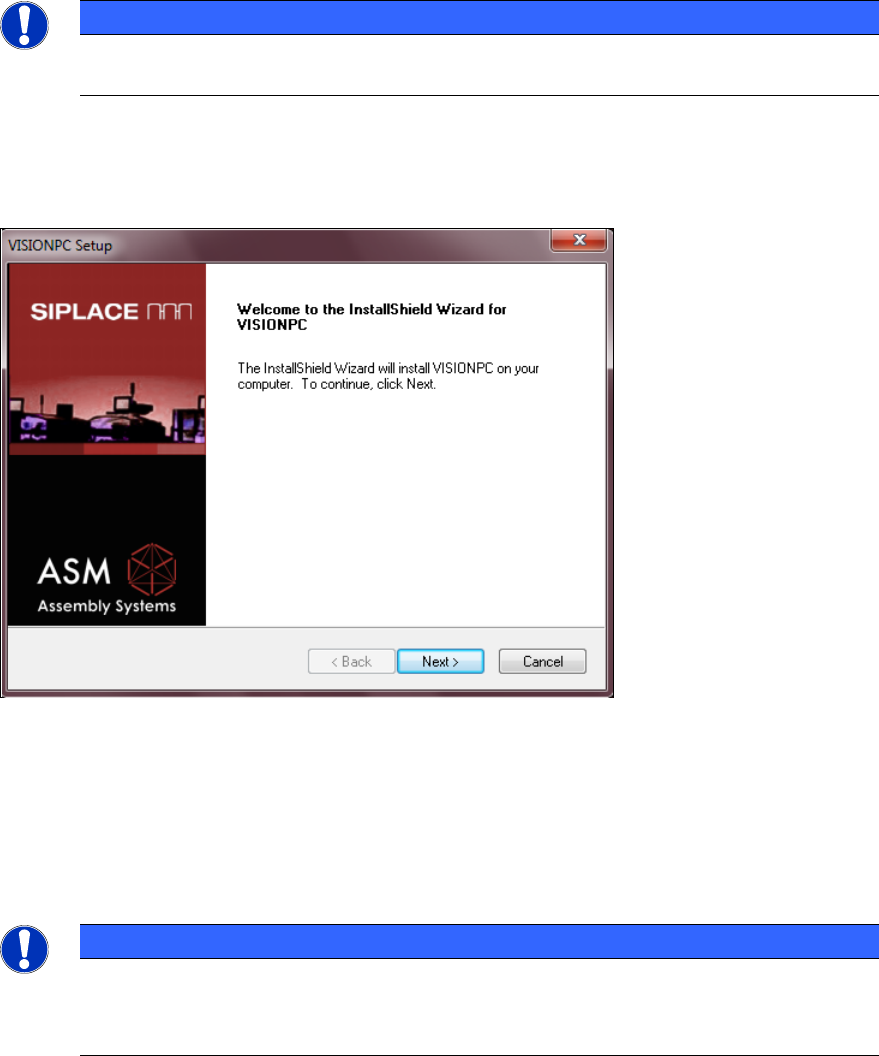

Figure 6-3: Welcome
► Click the Next button.
The necessary files are installed on the Vision computer.
6.1.3 Finalizing the Installation
NOTICE
The STATUS only lists the programs that have just been installed.
If errors occurred during installation, the status is indicated by the Error button being
displayed next to the program name instead of the Ok button.
► If you wish to read the log of the installation of any program, click the Ok (or Error) button next
to the name of the program. The Notepad editor is started and displays the appropriate file.
