Maintenance Tasks for C&P20/A/M/P Head Maintenance Intervals 38 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 4.2 4 . 2 M a in t e n a n c e I n t e r v a ls Maintenance Intervals 5205 - Ma jor - C&…
Maintenance Tasks for C&P20/A/M/P Head
Differences Between C&P20, C&P20 A, C&P20 M and C&P20 P
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 37
Fan
The housing of the C&P20 P features an additional
fan (1).
This fan is not present on the C&P20/A/M.
Type
The C&P20A housing has a label with the head type on
it (1).
The other C&P20 variants do not have this label.
Linear guidance Z axis
The C&P20A/M/P has a blue dot on the Z axis rotor (1).
If the blue dot is missing, the type is C&P20.
Maintenance Tasks for C&P20/A/M/P Head
Maintenance Intervals
38 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin
4.2
4.2 Maintenance Intervals
Maintenance Intervals
5205 - Major - C&P20-A-M-P
9000 – Foot not e * Maintenanc e display
* see also maintenance display

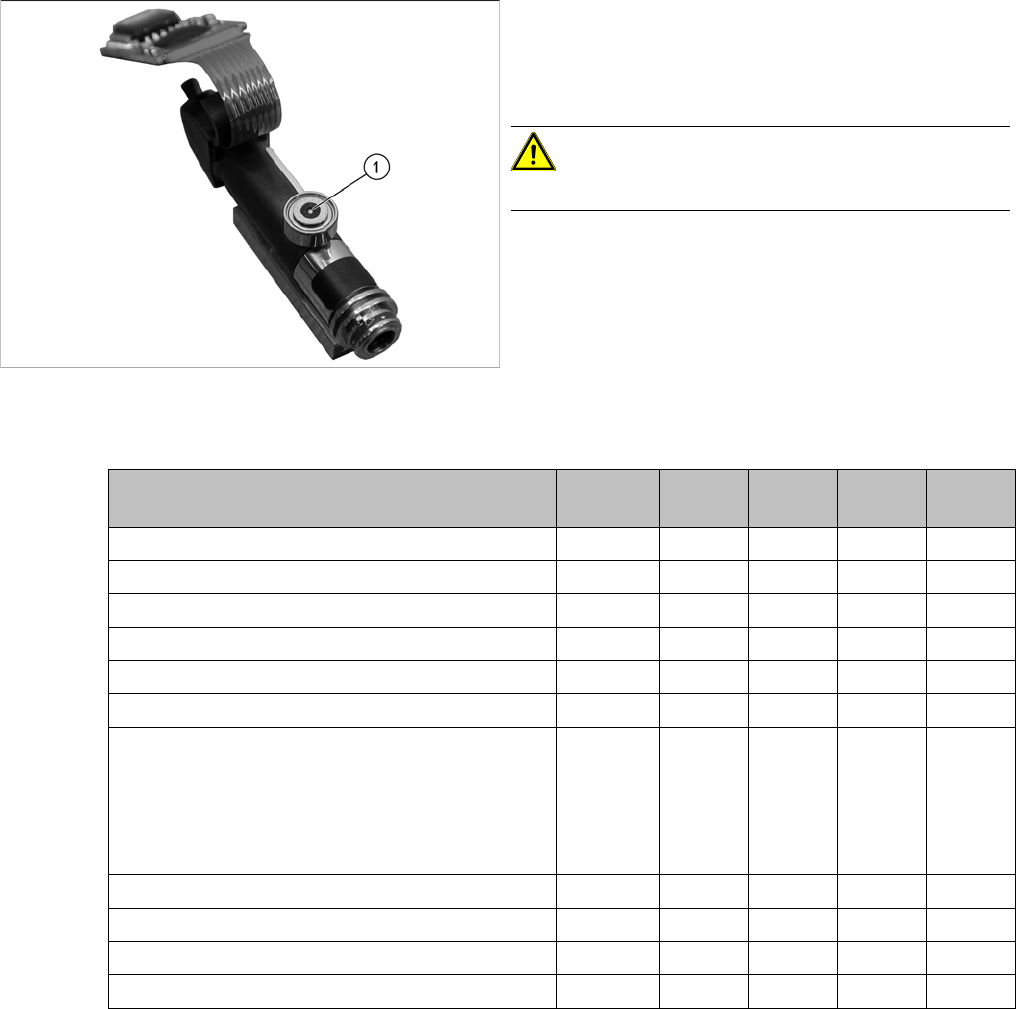

Driver bearing
Heads with a black dot on the driver bearings (1) are
C&P20A/M/P heads.
The black dot is missing on C&P20 heads.
CAUTION!
The two versions need different oils.
Maintenance tasks
Speedstar C&P20/A/M/P
Duration
[min]
Each
week
Every 3
months
Every 6
months
Every 12
months
Preparing the Placement Head 5 X*
Replacing the Pressure Control Valve 3 X*
Cleaning the Z Axis 6 X*
Oiling the DP Segment Guide 15 X*
Oiling the Z Axis Linear Guide 3 X*
Oiling the DP Driver Bearing 4 X*
Checking/Replacing the Vacuum-Conducting
Parts
▪ Reflecting ring and cover
or
▪ Holding circuit and silencer
5X*
Cleaning the Raceway and the Jaw 2 X*
Replacing the Filter Disks 15 X*
Checking/Cleaning/Replacing the Switching Disks 1 x X*
Cleaning the Component Sensor 1 X*
Maintenance Tasks for C&P20/A/M/P Head
Tools, Consumables, Spare and Wear Parts
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 39
4.3
4.3 Tools, Consumables, Spare and Wear Parts
Tools, Consumables, Spare and Wear Parts
The following lists contain all necessary consumable materials, wear and spare parts plus tools for per-
forming maintenance tasks to the different C&P20 placement heads.
HMK = Included in Head Maintenance Kit
* Optional part in HMK
Klueber Lamora D-220
Consumables Item no. HMK
Lint-free cloth, KM wipe 03082092- xx
Microfiber cloth for cleaning optical assemblies
Ethanol
Isopropanol – IPA can be used as an alternative.
Lubcon Thermoplex ALN 1001/00, 50 ml (blue) 03078556- xx X
Klüberalfa DH 3-100, 50 ml (black) 03078928- xx X
Maintenance labels C&P20 (pack of 10) 03067486- xx X
CD marker Edding 8400 03070076- xx X
Cleaning sticks 00388764- xx X
Distilled water
Compressed air
Whiteboard cleaner, set of 10 03070074- xx X
Cable ties B = 2.5 mm L = 102 mm Panduit 00308458- xx X*
ISOFLEX Topas 5051 50 ml 03078517- xx
C&P20 only:
NYE Synthetic Oil 200A, 50ml (white) 03078548- xx
Wear parts Item no. HMK
Filter disk assembly C&P20 03042001Sxx
Switching disk assembly/DP C&P20 03013091Sxx
For vacuum pump operation:
C&P20/A/M: sealing disk 03046345- xx
C&P20 P: sealing disk 03105638- xx
Tools Item no. HMK
ESD wriststrap TYP.OK/WRS 00320279- xx
Universal placement head mounting rack 03056231- xx
Multipipette (replaces: [03078989-xx]) 00386154- xx X
Combitips 0.2 ml blue 03070440- xx X
Combitips 0.1 ml black 03078990- xx X
Silicon hose D12 L20mm 03058392- xx X
Antistatic tweezers, type Bernstein 5-192 00377393- xx X
Antistatic tweezers, type Bernstein 5-195 00377394- xx
Tweezers, blunt 145 mm size 3 mm 00376493- xx X
Angled tweezers / N 00096487- xx X
TorqueVario-S screwdriver (1.0-5.0 Nm) 03078400- xx X
Bit holder for TorqueVario screwdriver 03078706- xx X*
