Maintenance Tasks for C&P20/A/M/P Head Performing Maintenance Tasks 4.6.9 Fitting the Cover/Silencer 56 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 4.6.9 4 . 6 . 9 F it t in g t h e C o v e r / S …
Maintenance Tasks for C&P20/A/M/P Head
4.6.8 Cleaning the Raceway and the Jaw Performing Maintenance Tasks
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 55
4.6.8
4.6.8 Cleaning the Raceway and the Jaw
Cleaning the Raceway and the Jaw
NOTICE
C&P20 P only
This maintenance task is only performed on the C&P20 P.
This maintenance task is not required for the C&P20/A/M.
➢ The reflecting ring/silencer must be dismantled for
this task.
► Push a cleaning stick past the Z axis (1), through two
segments and as far as the raceway.
► Rotate the star with the cleaning stick once, to the
other side of the Z axis.
► Pull the cleaning stick out of the star.
► Unthread a segment.
► Clean the upper and lower guideway (1) of the jaws
with a cleaning stick.
► Thread the segment back in.
► Repeat these steps for all segments.
Maintenance Tasks for C&P20/A/M/P Head
Performing Maintenance Tasks 4.6.9 Fitting the Cover/Silencer
56 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin
4.6.9
4.6.9 Fitting the Cover/Silencer
Fitting the Cover/Silencer
► Fit the reflecting ring or silencer. Also observe the following instructions:
4.6.10
4.6.10 Replacing the Filter Disks
Replacing the Filter Disks
CAUTION
Installation instructions
► Silencer: Insert the silencer once more and screw it in place. The screw may only be tight-
ened "hand-tight".
► Reflecting ring C&P20/A/M: Tighten the fastening screw for the cover with a torque of
25+5 Ncm.
► Reflecting ring C&P20 P: Tighten the screw fastening the cover until hand-tight.
CAUTION
Use the correct filter disk extraction device.
If you use the wrong filter disk extraction device, the placement head could be damaged.
► Make sure that you use the correct filter disk extraction device for your placement head.
⇨ C&P20/A/M: filter disk extraction device [03055046-xx] (transparent)
⇨ C&P20 P: Filter disk extraction device C&P20 P (green) [03108641-xx]
CAUTION
Avoid getting filter disk residues into the head.
► Replacement in the machine: switch the vacuum off when the machine is running.
► During replacement outside the machine, turn the head on the head mount, so that the Z
axis is at the bottom.

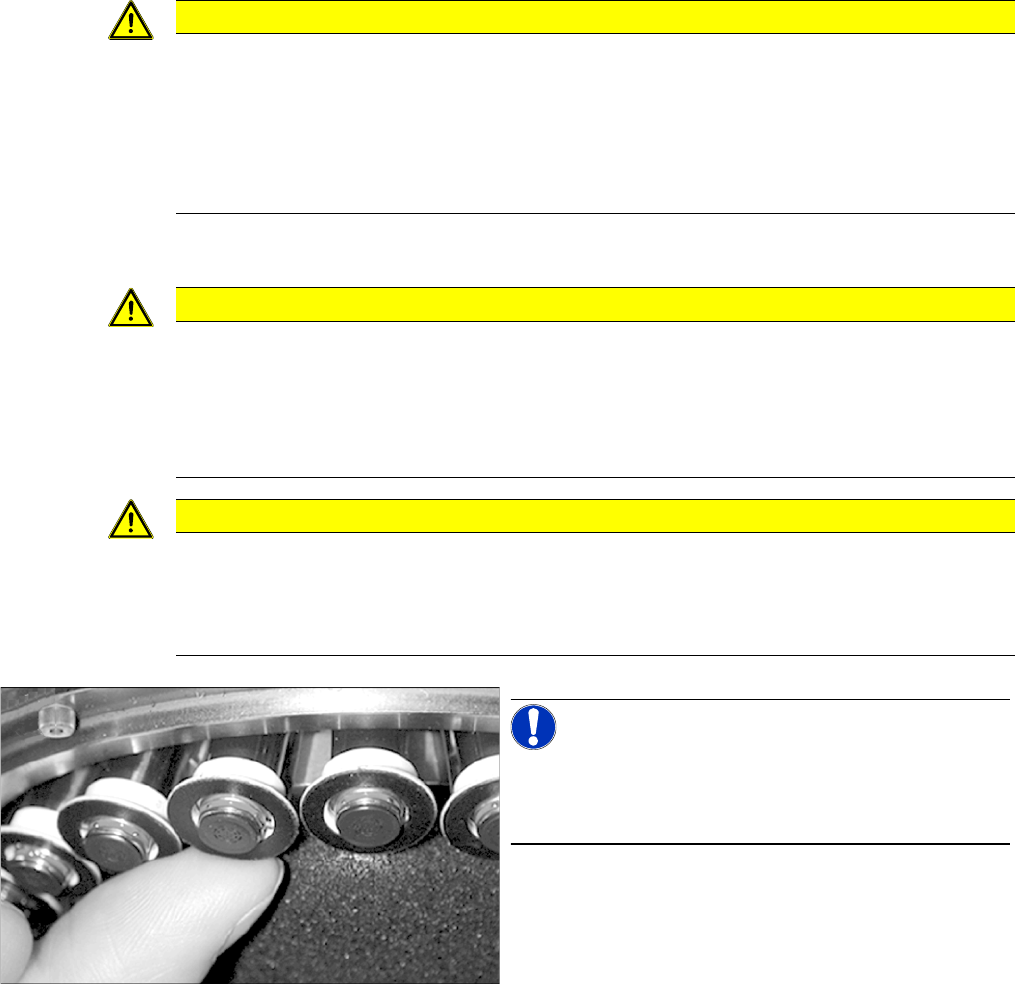

Filter disks (example of C&P20 A shown)
NOTICE!
Recommendation
We recommend replacing all filter disks during each
maintenance cycle.
Replace any damaged filter disks with new ones. Pro-
ceed as follows:
Maintenance Tasks for C&P20/A/M/P Head
4.6.10 Replacing the Filter Disks Performing Maintenance Tasks
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 57
Replacing the Filter Disks
Remove the filter disks (example of C&P20 A shown)
► Place the tool in front of the collar and press the guid-
ance sleeve against the collar.
► Turn the handle a quarter clockwise.
► Remove the tool.
► Make sure the filter disk has been removed complete-
ly.
► Remove the filter disk from the tool.
Fit the filter discs (example of C&P20 A shown)
► Insert the new filter disk into the tool.
► Press the filter disk centrally onto the collar.
The filter disks must engage audibly!
► Visually check the correct position of the filter disk.
The filter disk must be fitted straight on the DP drive!
