Maintenance Tasks for C&P20/A/M/P Head
4.6.12 Cleaning the Component Sensor Performing Maintenance Tasks
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 59
4.6.12
4.6.12 Cleaning the Component Sensor
Cleaning the Component Sensor
CAUTION
Prisms, cleaning sticks
► Take care not to damage the component sensor prisms.
► Make sure that you do not use the cleaning sticks soaked in oil from cleaning the sleeves.
Always use a new cleaning stick!

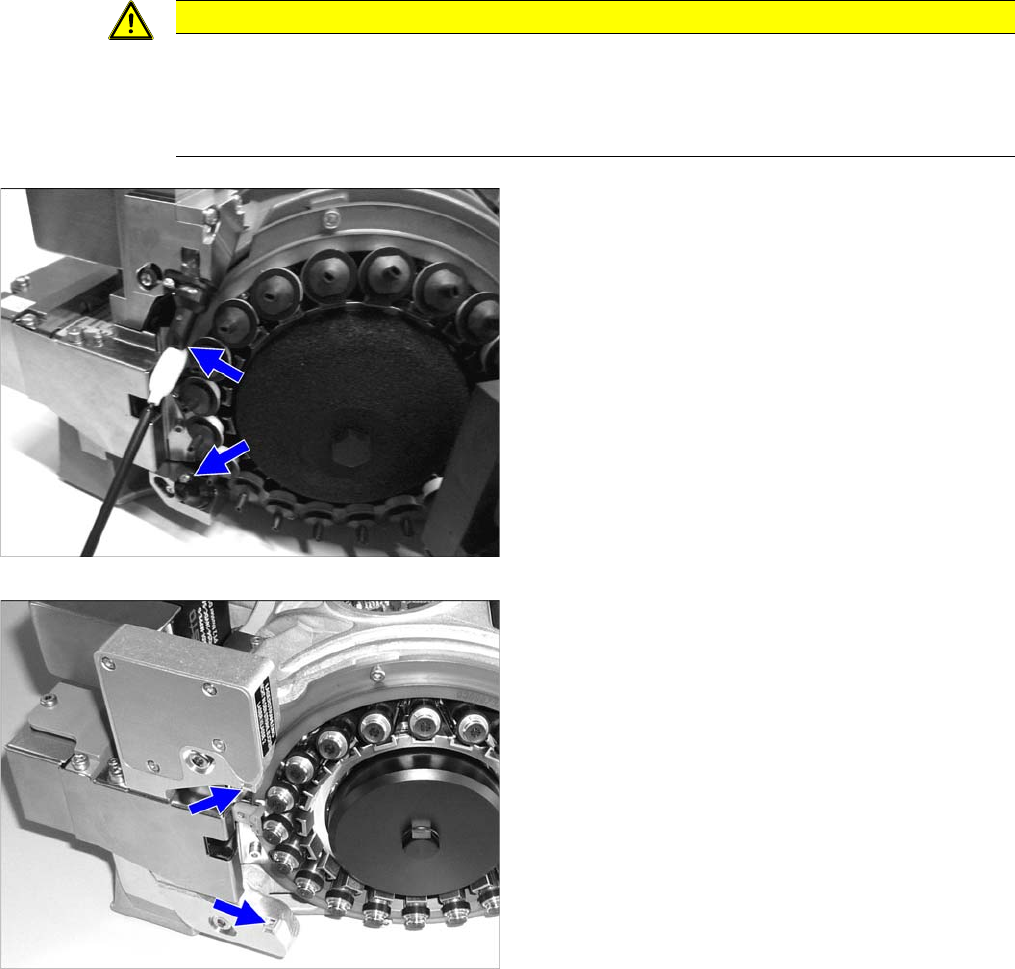

Cleaning the component sensor (C&P20/A/M)
Cleaning the component sensor (C&P20 P)
► Remove the protective cover from the component
sensor.
► Clean the prisms of the component sensor with a
cleaning stick soaked in ethanol.
► Refit the protective cover on the component sensor.
Maintenance Tasks for C&P20/A/M/P Head
Final Work 4.6.12 Cleaning the Component Sensor
60 Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin
4.7
4.7 Final Work
Final Work

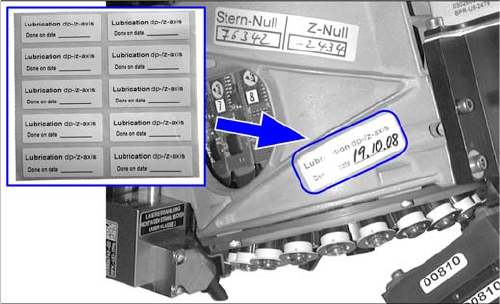

Attaching the maintenance label
Fitting the placement head
► Fit the placement head back onto the gantry. Read the service manual for your machine first.
► Remove the protective cover from the component sensor.
► Switch the placement machine on at the main switch.
► Calibrate the placement head, preferably using the FHE function. For details, refer to the service
manual.
► For SW704 and higher only: Reset the maintenance cycle counter for the corresponding assemblies.
► Remove any label which may still be present from the
placement head.
► Remove any adhesive residues and clean the area.
► Attach the label and enter the date and, if required,
the meter count, depending on how you determine
your maintenance intervals.
Maintenance Tasks for Twin
Maintenance Intervals
Maintenance Manual SIPLACE Placement Heads CPP, C&P20, Twin 61
5
5 Maintenance Tasks for Twin
Maintenance Tasks for Twin
5.1
5.1 Maintenance Intervals
Maintenance Intervals
5305 - Major - TH/VHF
NOTICE
Description example
The following tasks are performed using the example of a Twin. The procedure for the other
Twin variants Twin HF, VHF P&P and Twin VHF is the same. Any relevant differences will be
mentioned explicitly.
Maintenance tasks
Twin
Duration
[min]
Each
week
Every 3
months
Every 6
months
Every 12
months
Preparing the Placement Head 5 X
Replacing the Pressure Control Valve 3 X
Cleaning the Sleeve and Nozzle Seat 2 X
Cleaning/Replacing the Additional Volume Filter 2 X
