9 4-3 Comp onent placeme nt cycle time ( Number of component s to be placed per hour) P 20 nozzle head Component bottom recognition camera ( equipped with a head ) Component side re c ognition camera ( equipped with a he…
8

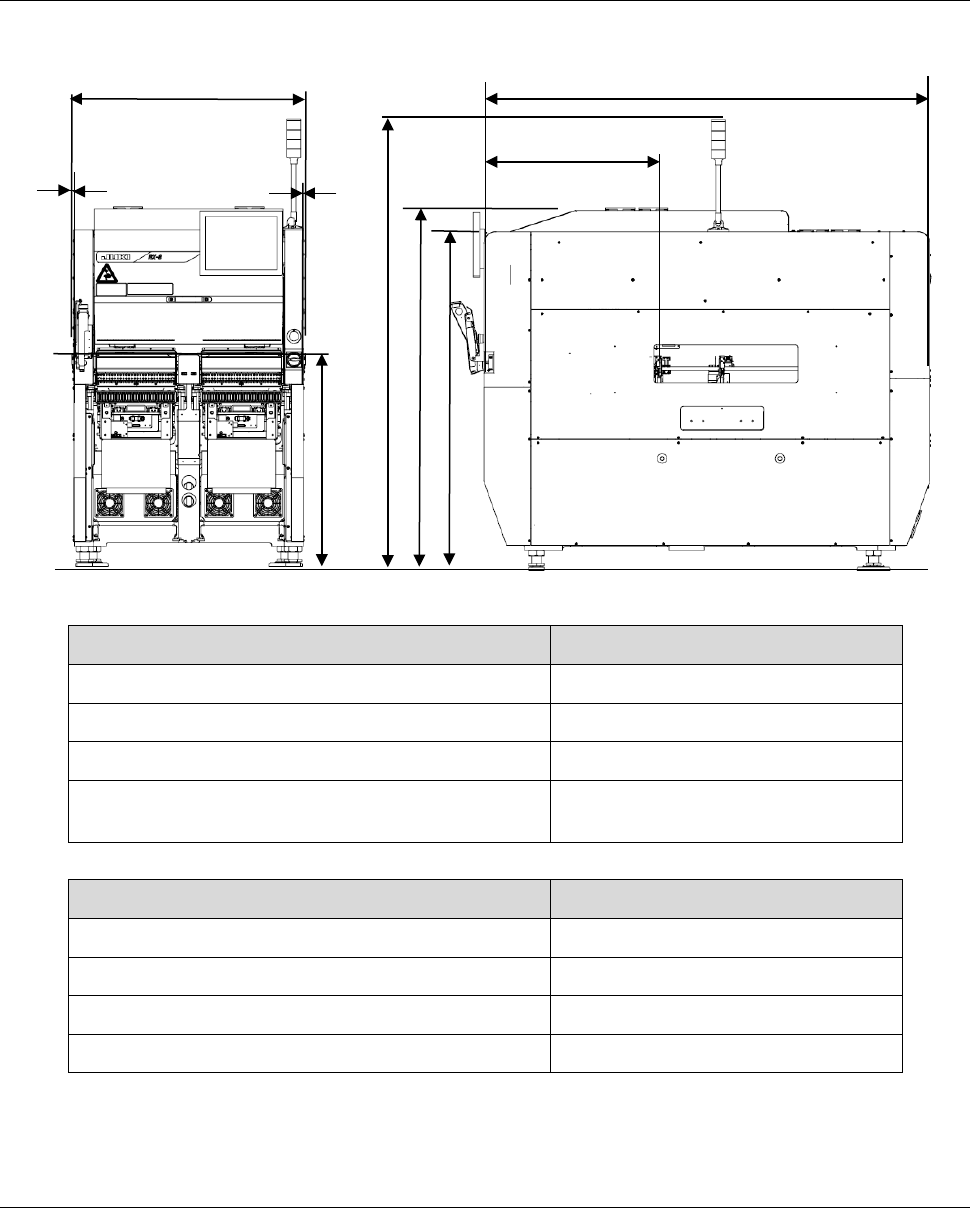

4-2-2 External dimension drawing
Dimension Single-lane conveyor specifications
A (Length of the conveyor) 998 mm
C (excluding the LCD) 1,893 mm
H (Transport output amount) 8 mm
I (From the front of the cover to the board transport
path on the reference side)
750. 5 mm (Front side)
Dimension
B (From the floor to the topside of the conveyor belt) 900 mm
E (From the floor to the topside of the cover 1) 1,440 mm
F (From the floor to the topside of the cover 2) 1,530 mm
G (From the floor to the topside of the signal light) 1,916 mm
The dimensions above exclude the maximum protuberance.
*1 The tolerance of the dimensions above shall be ± 5 mm.
4-2-3 Mass of the main unit
1,810 kg * Excluding options
H
C
H
A
B
G
F
I
E
9
4-3 Component placement cycle time (Number of components to be
placed per hour)
P20 nozzle head
Component bottom recognition camera (equipped with a head)
Component side recognition camera (equipped with a head)
1 Unit: CPH
HEAD TYPE
Component placement cycle time *1
P20 nozzle head
55,000
*1 This is the number of components that can be placed for one hour when 400 pieces of 0603
capacitors are placed onto a 200 mm×200 mm board at each angle of 0, 90, 180 and 270
degrees sequentially. (This method conforms to IPC9850.)
10

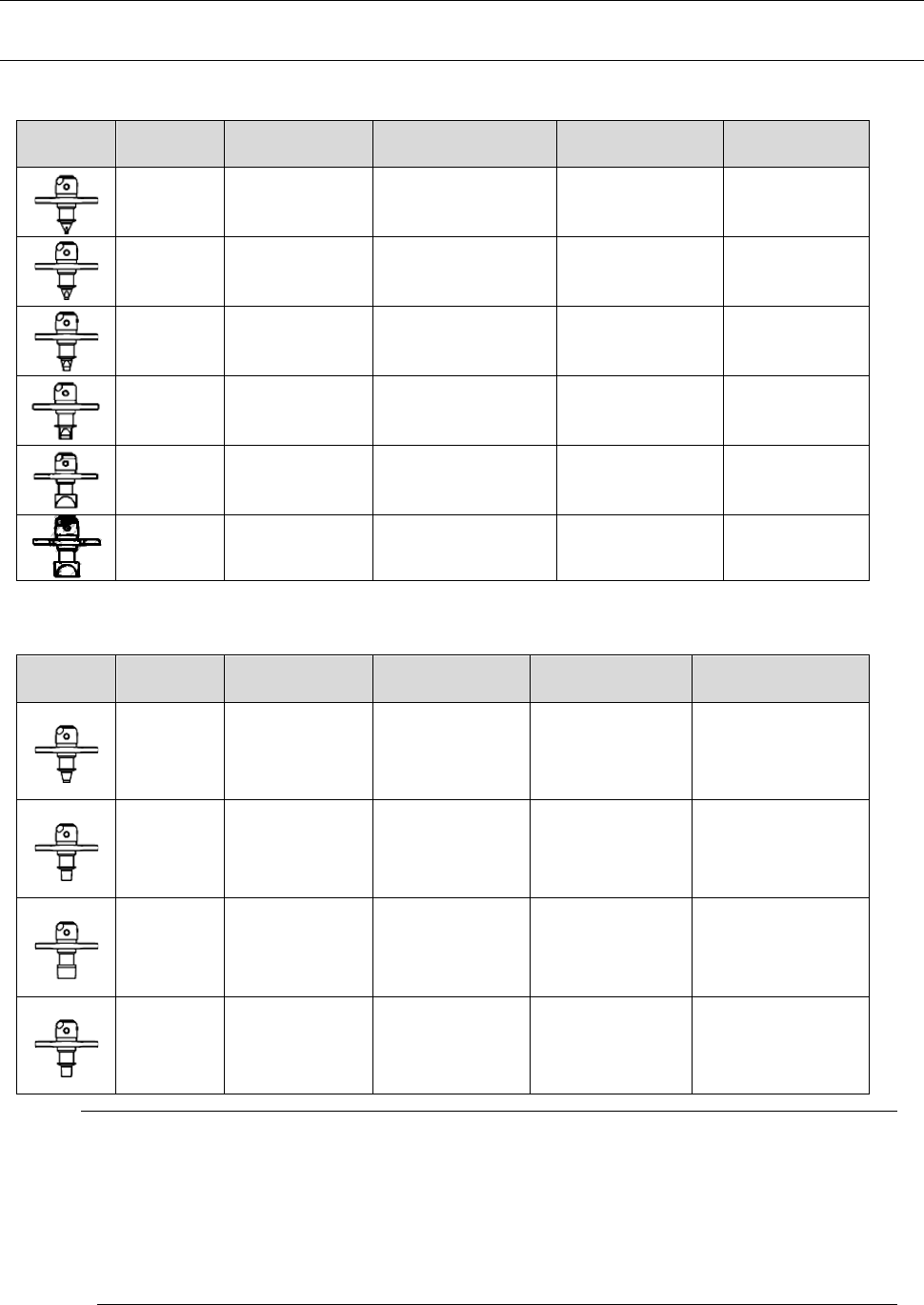

4-4 Nozzles
4-4-1 Types of nozzles for an P16/P16S/P20 nozzle head
Reflective type square nozzle
Shape Nozzle ID Name
Nozzle outer
diameter
Nozzle inner
diameter
Applicable
component
501 HF0402R(C)
0.4 mm x 0.3 mm
(rectangle)
0.08 mm
(X-type)
0402
502 HF0603R(C)
0.6 mm x 0.3 mm
(rectangle)
0.2 mm
(Two-hole type)
0603
503 HF1005R(C)
1.0 mm x 0.5 mm
(rectangle)
0.4 mm 1005
512 HF1608R
1.6mm × 0.8mm
(rectangle)
0.7mm 1608
521 HF3008R
3.0mm × 0.8mm
(rectangle)
1.6mm x0.4mm
(long hole)
LED
(side view)
etc.
524 HF3216R
3.2mm × 1.6mm
(rectangle)
1.2 mm 3216
Reflective type circular nozzle
Shape
Nozzle ID Name
Nozzle outer
diameter
Nozzle inner
diameter
Applicable
component
506 HF10071(C) 1.0 mm 0.6 mm
1608 - 2012
507 HF12081 1.4 mm 1.0 mm
3216
508 HF25201 2.5 mm 2.0 mm
□
3mm -
□
5mm
511 HF12081(C) 1.4mm 1.0mm 2012 - 3216
Notes
•
The machine detects whether a nozzle is removed or not. Be sure to use a nozzle
dedicated for an RX-7/RX-7R/RX-8.
•
Nozzles for an RX-8 (P20) are common with those of an RX-7 (P16)/RX-7R (P-16S).
•
Do not attach a nozzle on a head directly with your hands. The machine cannot identify a
nozzle attached on a head manually.
•
For the nozzles dedicated for 0201 and 03015, contact our sales office.
