JAKA Zu
3 v1.1
11
JAKA Zu APP is provided by JAKA on Android system, and the required configurations are as follows:
Terminal Type Tablet PC
OS Android 8.0 or above
CPU Kirin695or Snapdragon 660
ROM 32GB
RAM 4GB
Screen Size 8.0 inch
Network WIFI
Table2-1 Operation Terminal Required Hardware Configurations
The operation terminal can be requested during purchasing or provided by user themselves.
2.3 Robot Arm
The robot arm is shown as Fig 2-1, and is composed of six rotation joints with two linkages. And at the
end of the arm,a ring indicator, buttons used to drag and tech, TIO interface are located.
Fig
2-1 Robot Arm
2.3.1Robot End
At the end of the robot, an indicator and apause button is located. 。
The indicator and the pause button is located as Fig 2-2 and the meanings of different color are listed in
table 2-2. When the robot is running program, press the pause button could pause and resume the program.
12
JAKA Zu 3 v1.1
Fig 2-2 Ring Indicator and Pause Button
Color Robot Status
Blue Power on
Green Enabled
Red Falut
Yellow Drag Mode
Flashing
Yellow
Pause Mode
Table 2-2 Indicator Meanings
Warnings:
The risks related to using ofpause button should be evaluated carefully, the contact of robot and
personnel could cause server injury of personnel or damage of equipment.

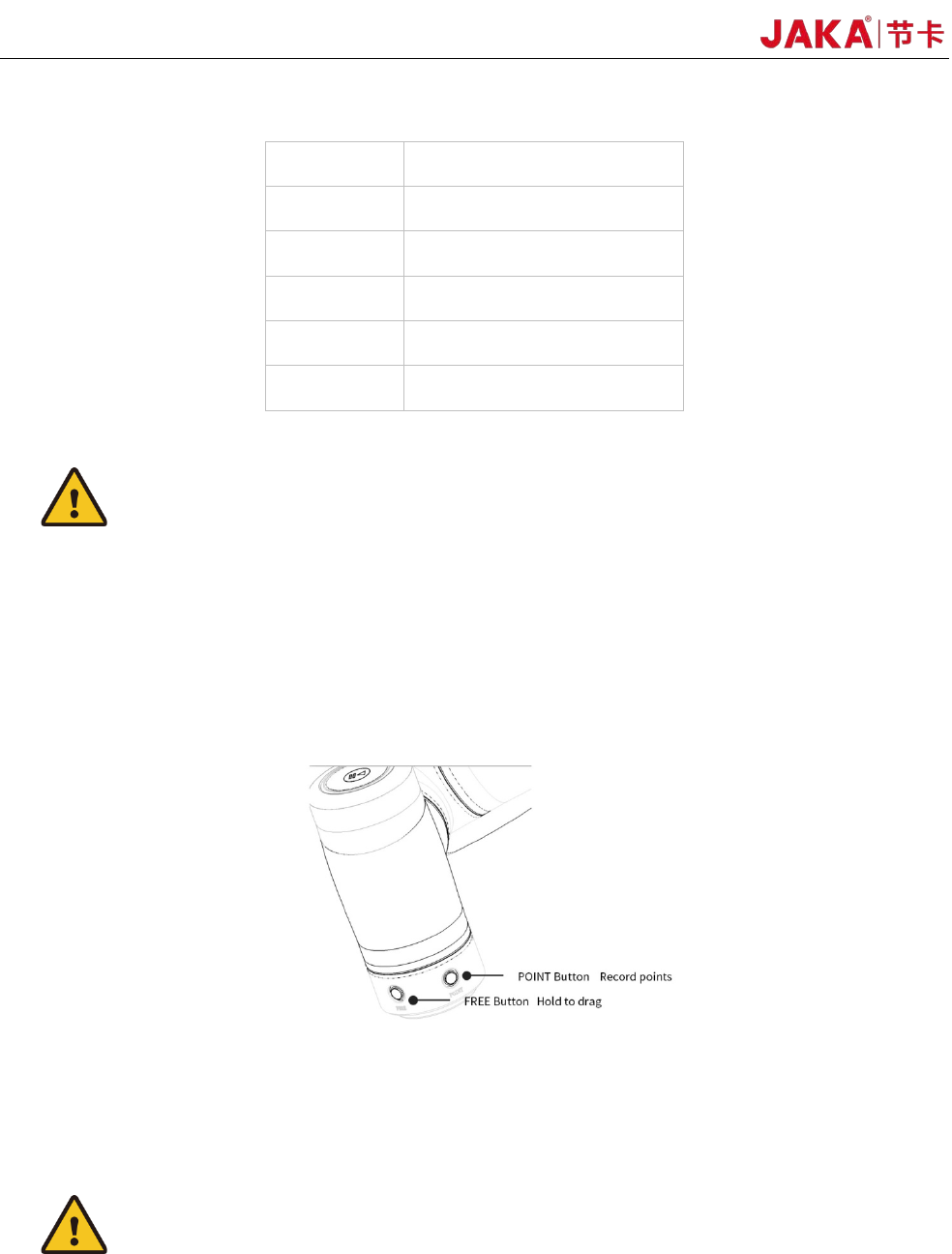

2.3.2 Flange Buttons and interfaces
On the side of flange located two buttons and TIO interface.The buttons are FREE button and POINT
button Respectively, shown as below:
The de
tailed description of TIO is in chapter 4.
When the free button is pressed, the robot would enter free-drive mode.
The point button could be used with the robot APP, and when this button is pressed the robot positon
would be recorded in the APP.
Warnings:
The risks related to using of pause button should be evaluated carefully, the playload、TCP setting
should be set properly, otherwise the contact of robot and personnel could cause server injury of personnel
or damage of equipment.
JAKA Zu
3 v1.1
13

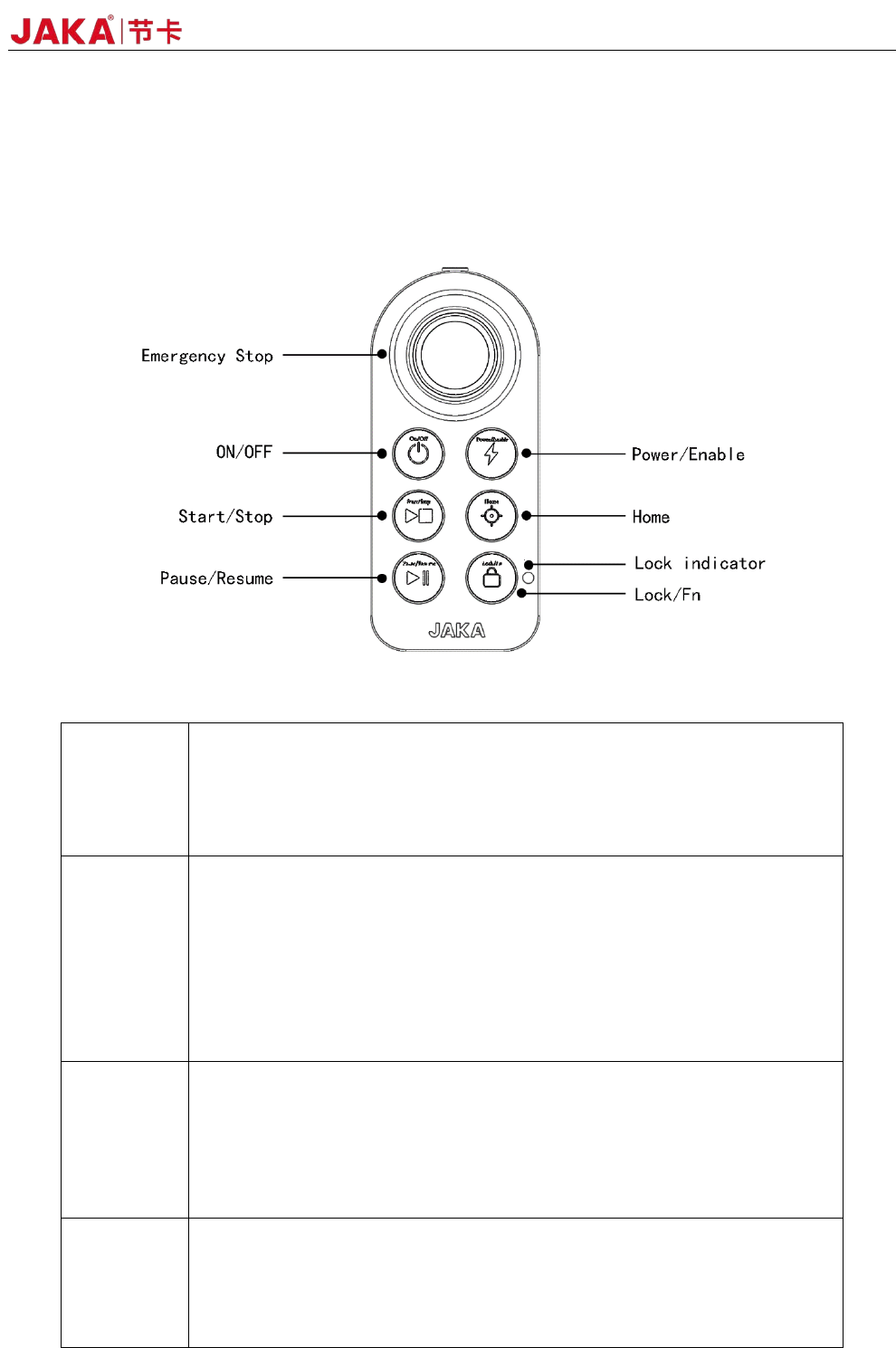

2.4 Electrical Cabinet and Control Stick
The cabinet of JAKA Zu Robots contains several kinds of interfaces which are described in chapter 4.
Along with the cabinet a stick is provided, and when the programming job is finished , the stick could be
sued to control the robot.
Commands can be sent to the robot using buttons on thestick, and are described as follows:
Table 2-3 Stick Function Description
ON/OFF
ON：Press the power button for 1 second and release it, The buzzer will
ring and the electric control cabinet will start up.
OFF：Press and hold the power button for more than 3s, the handle
buzzers 6~7 times, and the electric control cabinet is turned off.
Power/
Enable
Turn on robot：When robot turned off, short press the button to turn on
the robot.
Turn off robot：When robot turned on, short press the button to turn off
the robot.
Enable robot
：When robot turned on, short press the lock button a nd
enable button.
Disable robot
：When robot enabled, short press the lock button + enable
button
Start/Stop
Start program: press the terminate button to start the default loaded
program. After robot moves to the initial position of the program, execute the
default program .
Stop program: When program operating, short press the button to
terminate the program.
Home
Home：After robot enabled, when no program is operating, press
continuously to control the robot to run to the set default position. When robot
moves to the default position, press continuously and the lock indicator light is
blue.
