1.2.7. CONVEYOR WORK PCB STOPPER

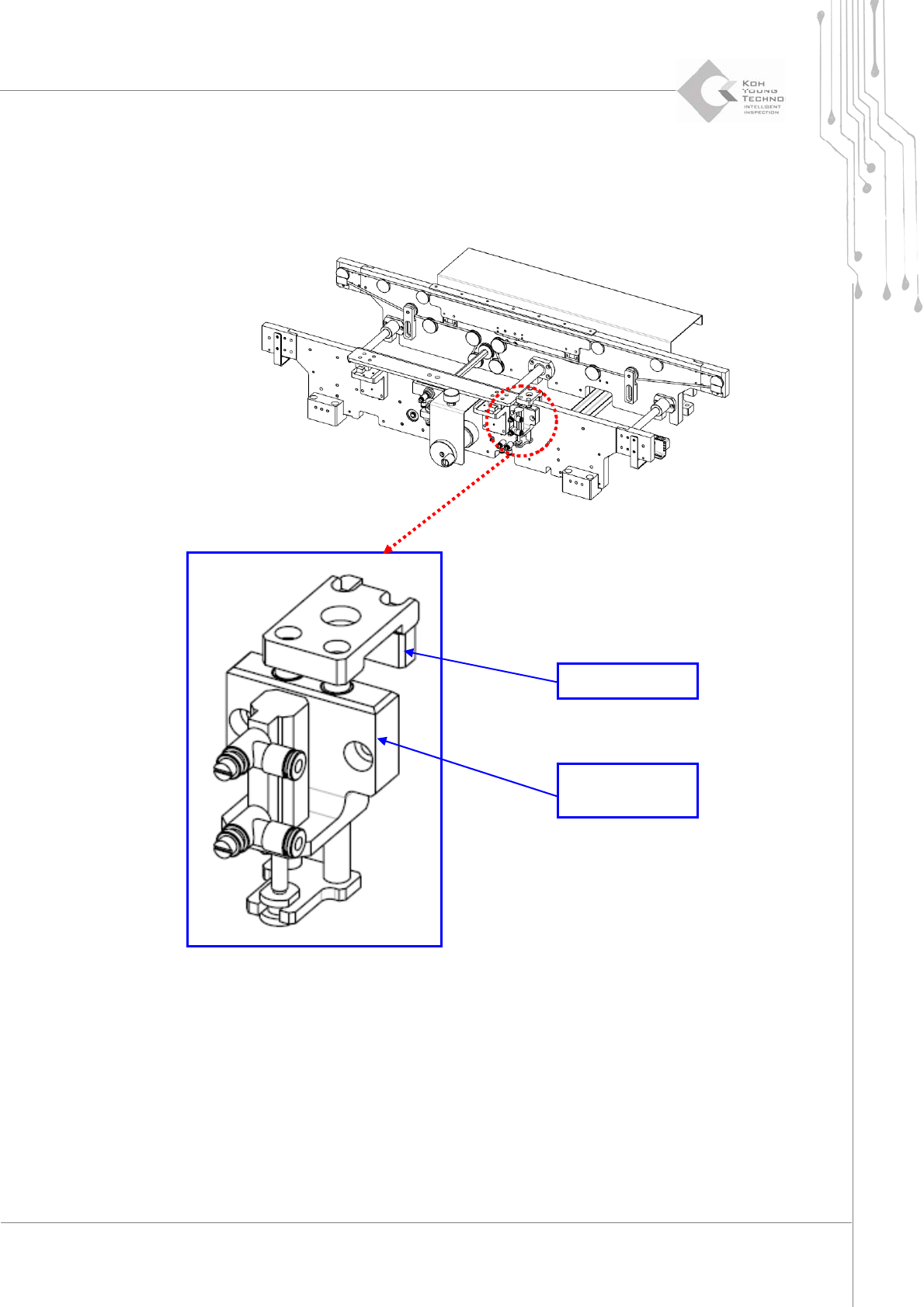

Figure 1-8. Work PCB Stopper
1. Cutthepower/theairsupplyandpressemergencyswitch.
2. OpentheFrontDoor/WindowanddisassembleRearCover/RightSideCover.
3. DisassembleairhosefromStopperAssembly.
4. Disassemble Stopper Assembly from Conveyor as the diagram and assemble new
StopperAssemblytoConveyor.
Stopper Tip
Stopper
Assembly
34 | KY-8030 2
3DSolderPasteInspectionSystem
Version 1.0
KOH YOUNG TECHNOLOGY INC.
5. CheckI/ONumberandassembletoStopperAssembly.
6. SupplypowerandcheckiftheStopperAssemblyisoperatingproperlyattheI/Oscreen.
ÚNote: Stopper Tip of Stopper Assemblywearsaway as PCBsare imported.It is recommended to
changeitinevery6monthsifwornoff.
Maintenance Manual | 35

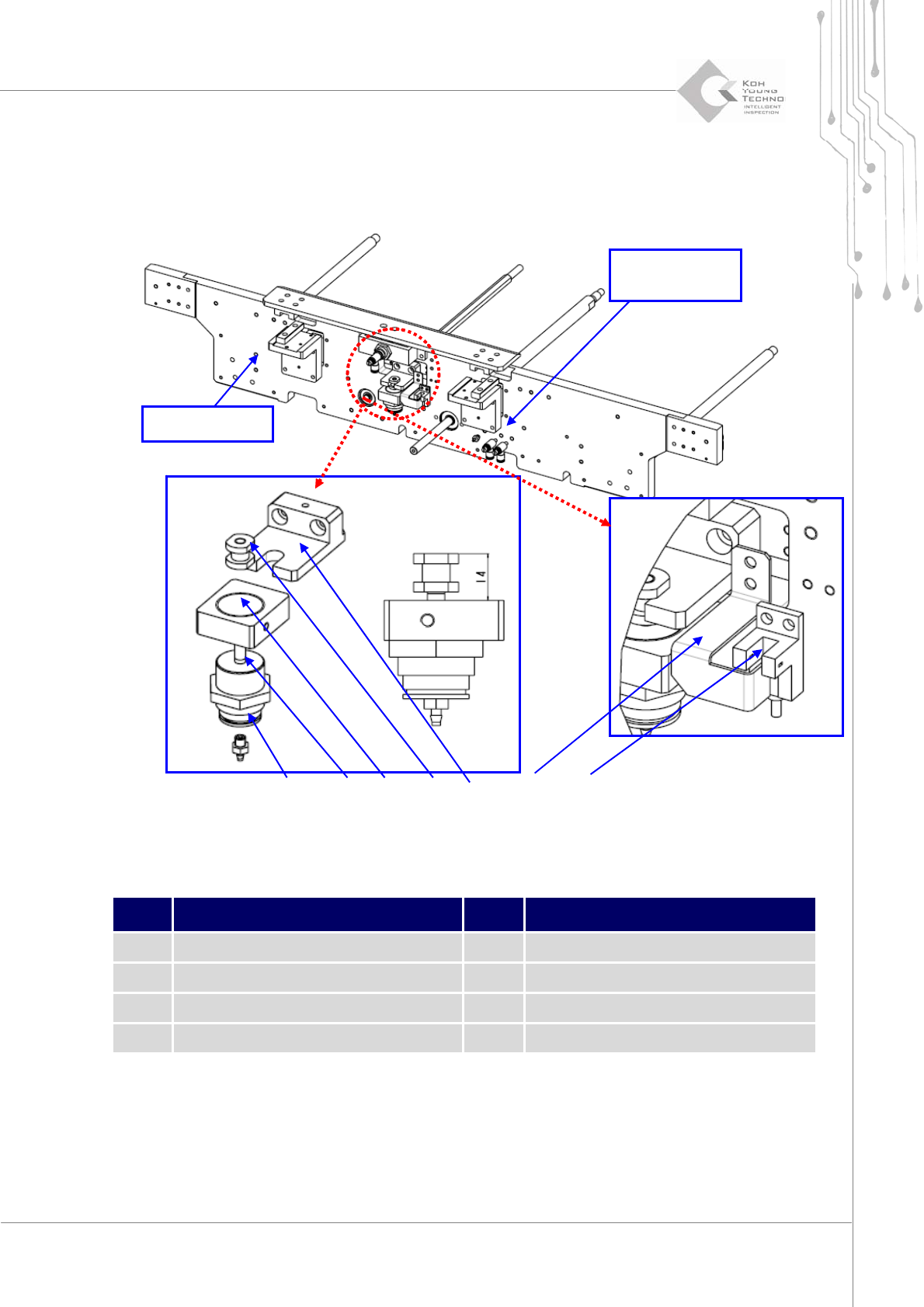

1.2.8. PCB CLAMPING CYLINDER AND UP/DOWN LIMIT SENSOR CHANGE
Figure 1-9. PCB Clamping Cylinder and Up Sensor
Item Description Item Description
1 Up/Down Limit Sensor 5 Up/Down Cylinder Bracket
2 Up/Down Dog 6 Up/Down Cylinder
3 Rail Fix Bracket 7 Fitting
4 Up/Down Cylinder Joint
1. Cutthepower/theairsupplyandpressemergencyswitch.
2. OpentheFrontDoor/WindowanddisassembleRearCover/RightSideCover.
3. Disassemble Fix Rail from Up/Down Dog and disassemble Up/Down Limit Sensor
Fixed Rail
Speed
Controller
