86 | KY -8030 2 3D  Solder  Paste  Inspec tion  System  V ersion 1.0 K OH Y OUNG T ECHNOLOGY I NC . 9. Select  the  “Use  the  following  IP  address”.  10. Click  the  [OK]  button  after  inputting  t…

Maintenance Manual | 85

7. Clicktherightbuttonofthemouseatthe[Localareaconnection]andselect[Properties].

8. Clickthe[Properties]buttonafterselectingthe“InternetProtocol(TCP/IP)”.

86 | KY-8030 2

3DSolderPasteInspectionSystem

Version 1.0

KOH YOUNG TECHNOLOGY INC.

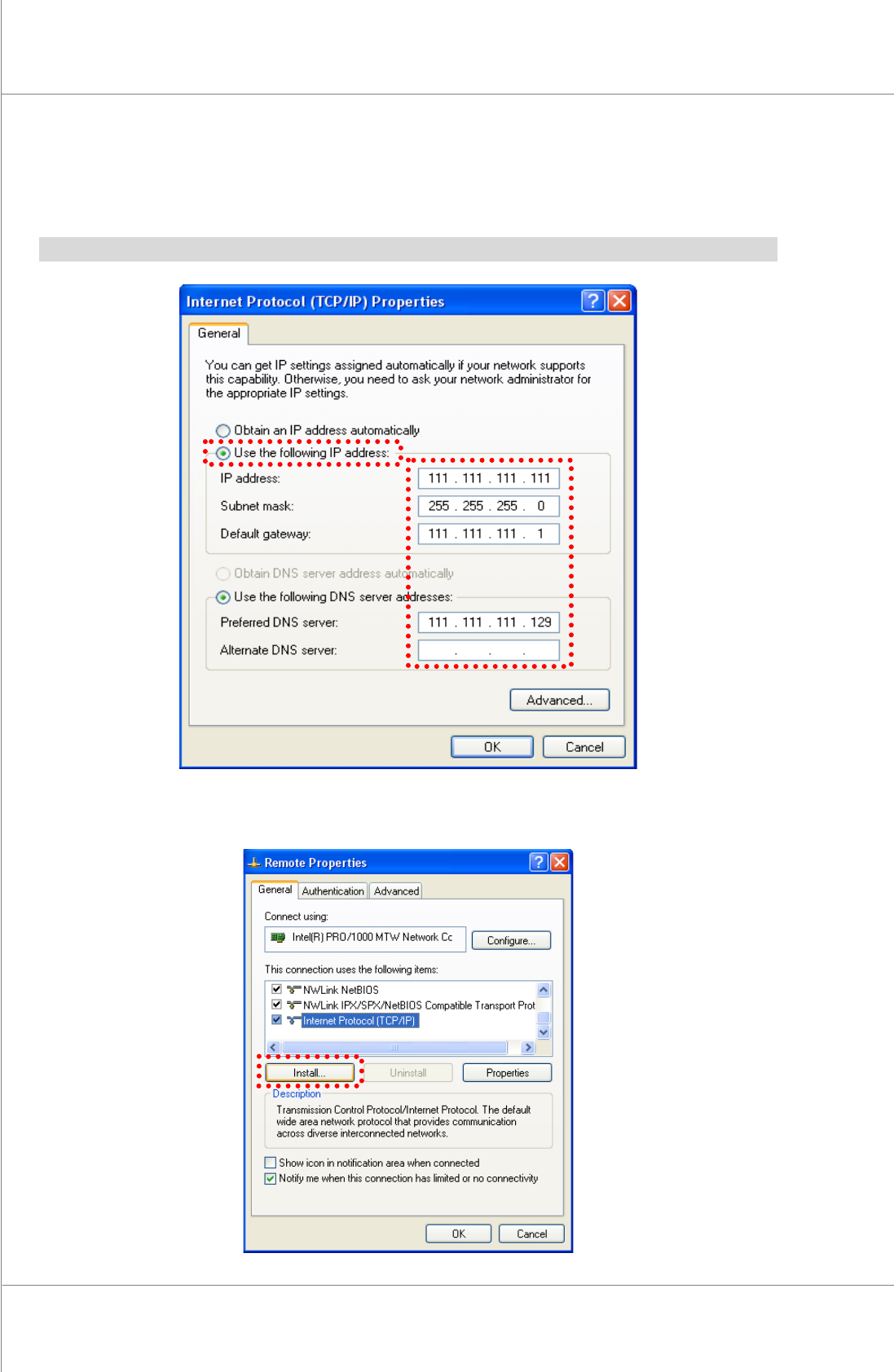

9. Selectthe“UsethefollowingIPaddress”.

10. Clickthe[OK]buttonafterinputtingtheIPaddress,Subnetmask,standardgatewayand

standard/subDNSserver.

※Note:Inputvaluediffersdependingonthecompany.PleaseconsultwithaNetworkengineer.

11. Pleaseclickthe[Install].

Maintenance Manual | 87

12. Select“Protocol”andthenclickthe[Add]button.

13. Clickthe[OK]buttonafterselecting“NWLinkIPX/SPX/NetBIOSCompatibleTransport

Port”.Aprotocolisadded.
