Maintenance Manual | 73

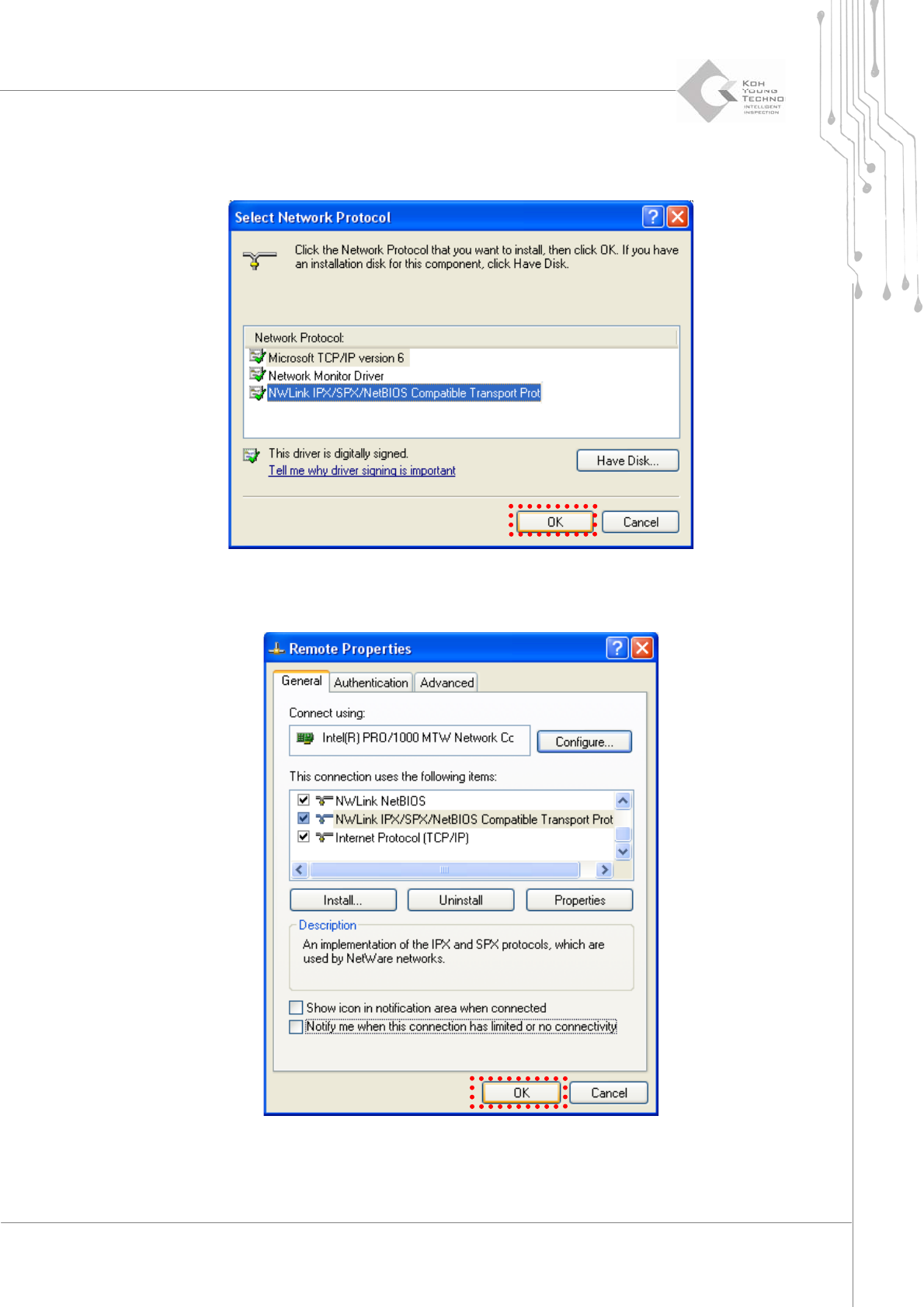

11. Click the[OK] buttonafterselecting “NWLink IPX/SPX/NetBIOS compatible Transport
Port”.Aprotocolisadded.
12. Clickthe[OK]button.
74 | KY-8030 2
3DSolderPasteInspectionSystem
Version 1.0
KOH YOUNG TECHNOLOGY INC.
3.5.2. REMOTE PROGRAM INSTALLATION
1. Executethe“Setup.exe”fileoftheRemotemonitoringseverprogram.
2. Run “Net Monitor.exe” file to use the Remote program. The selected items include
Machineview,ListviewandYieldGraphview.
Figure 3-5. Machine view
Maintenance Manual | 75
Figure 3-6. List view
Figure 3-7. Yield Graph view
