D33363 | Date 01/2020 27

Operation and control

TIMER

End 14 : 45

44h:44m

180.4 °C

TEMP

Set 180

.4 °C

20%

FLAP

FAN

FLAP

40 %

53 412

TIMER

30m04h

End

13:30 23.11.

11 1267 8 9 10

Fig. 15 ControlCOCKPIT for UF.../IF... appliances in operating mode

180.0 °C

Set 180.9 °C

TEMP

TIMER

End 14 : 45

44h:44m

FLAP

40 %

12 5

TIMER

30m04h

End

13:30 23.11.

10 11 1267 8 9

Fig. 16 ControlCOCKPIT for UN.../IN... appliances in operating mode

1 Activation key for temperature setpoint

adjustment

2 Setpoint and actual temperature display

3 Fan speed display

4 Activation key for fan speed setting

5 Switch to menu mode (see page 36)

6 Activation key digital backwards counter

with target time setting, adjustable from 1

minute to 99 days

7 On/Off switch

8 Display digital backwards counter with

target time setting, adjustable from 1 min-

ute to 99 days

9 Air flap position display

10 Activation key for air flap position adjust-

ment

11 Turn control for setpoint adjustment

12 Confirmation key (accepts setting made

with the turn control)

28 D33363 | Date 01/2020

Operation and control

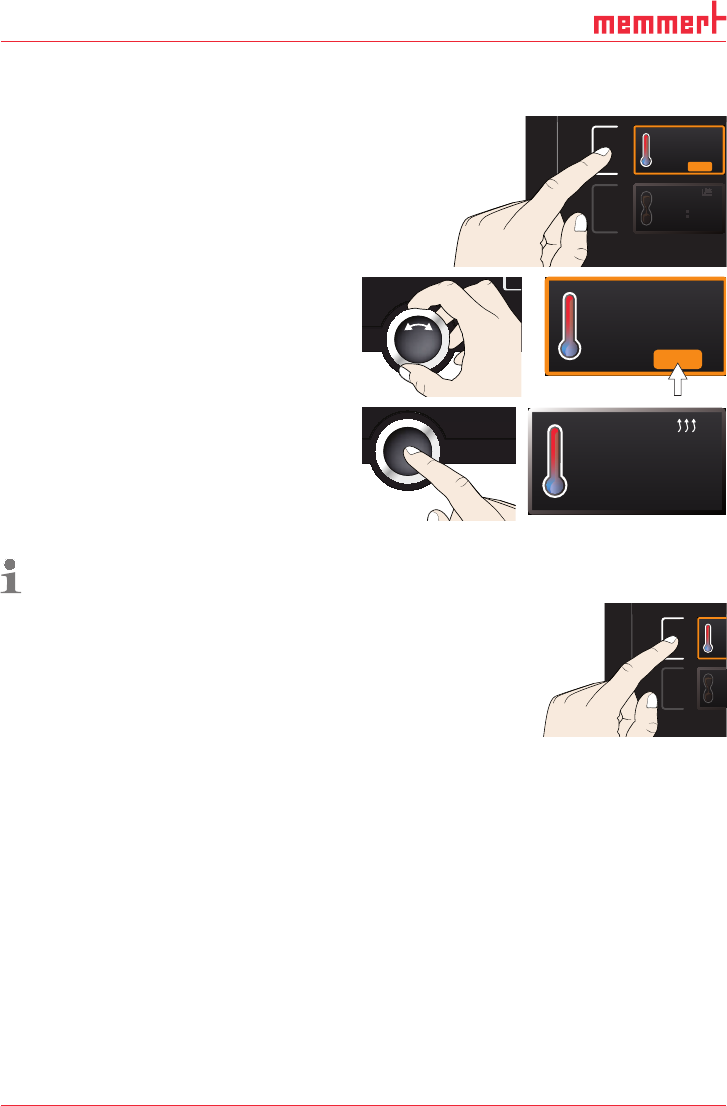

5.4.2 Basic operation

In general, all settings are made according to the following pattern:

1. Activate the desired parameter (e.g. tem-

perature). To do so, press the correspond-

ing activation key on the left or right of

the respective display. The activated dis-

play is lined in colour, the other displays

are dimmed. The set value is highlighted

in colour.

. 5°C100

TEMP

TIMER

22.4 °C

TEMP

37.0 °CSet

2. By turning the turn control to the left

or right, adjust the set value (e.g. to

180.0 ºC).

3. Save the set value by pressing the confir-

mation key.

The display returns to normal and the

appliance begins adjusting to the defined

set value.

23.2 °C

TEMP

Set 180

.0 °C

Additional parameters (air flap position etc.) can be set accordingly.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automati-

cally returns to the main menu and restores the former values.

If you want to cancel the setting procedure, press the

activation key on the left or right of the display that you

want to exit. The appliance restores the former values.

Only the settings that you have confirmed by pressing

the confirmation key before cancelling the setting

procedure are accepted.

5.4.3 Operating modes

The appliance can be operated in different modes:

► Manual mode: The appliance runs in permanent operation at the values set on the

ControlCOCKPIT. Operation in this mode is described in chapter 5.4.4.

► Operation with digital backwards counter with target time setting, adjustable from 1 min-

ute to 99 days (Timer): The appliance runs at the values set until the timer has elapsed.

Operation in this mode is described in chapter 5.4.5 .

► via remote control (see page 41)

22.4 °C

TEMP

180.0 °CSet

D33363 | Date 01/2020 29

Operation and control

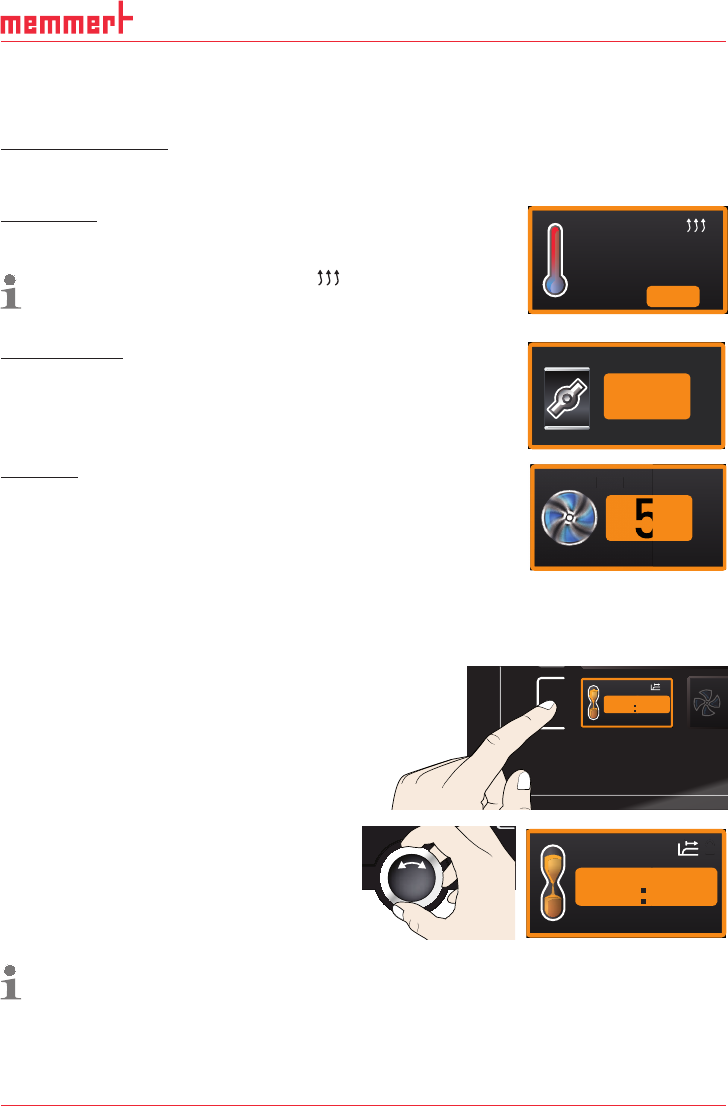

5.4.4 Manual mode

In this operating mode, the appliance runs in permanent operation at the values set on the

ControlCOCKPIT.

Adjustment options

As described in chapter 5.4.2, you can set the following parameters after pressing the cor-

responding activation key (in any sequence):

Temperature

Adjustment range: model dependent (see nameplate and technical

date on page 14)

Heating operation is indicated by the

symbol.

You can select °C or °F as the temperature unit displayed (see

page 39).

24.4 °C

TEMP

180.4 °CSet

Air flap position

Adjustment range: 0 % (closed, recirculating operation) to 100 %

(completely opened, fresh air operation) in steps of 10%

FLAP

%40

Fan speed

(only for UF

.../IF... appliances)

Adjustment range: 0 to 100 % in steps of 10%

FAN

5.4.5 Operation with digital backwards counter with target time setting,

adjustable from 1 minute to 99 days (Timer)

In timer operation, you can adjust the time the appliance runs at the set value.

1. Press the activation key to the left of

the timer display. The timer display is

activated.

TIMER

Ende

9:00 23.11.

--h- m

2. Turn the turn control until the desired

duration is displayed – in this example 4

hours 30 minutes. The approximate end

time is shown beneath, in a smaller font.

TIMER

End

13:30 23.11.

04 mh 3

Up to a duration of 23 hours 59 minutes, the time is displayed in hh:mm (hours:minutes)

format. For 24 hours and more, the format dd:hh (days:hours) is used. The maximum

duration adjustable is 99 days 00 hours.
